Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GD J Cavalcade SUZUKI 48 - TRAVEL TRUNK PAD GV1400GCG/GCH

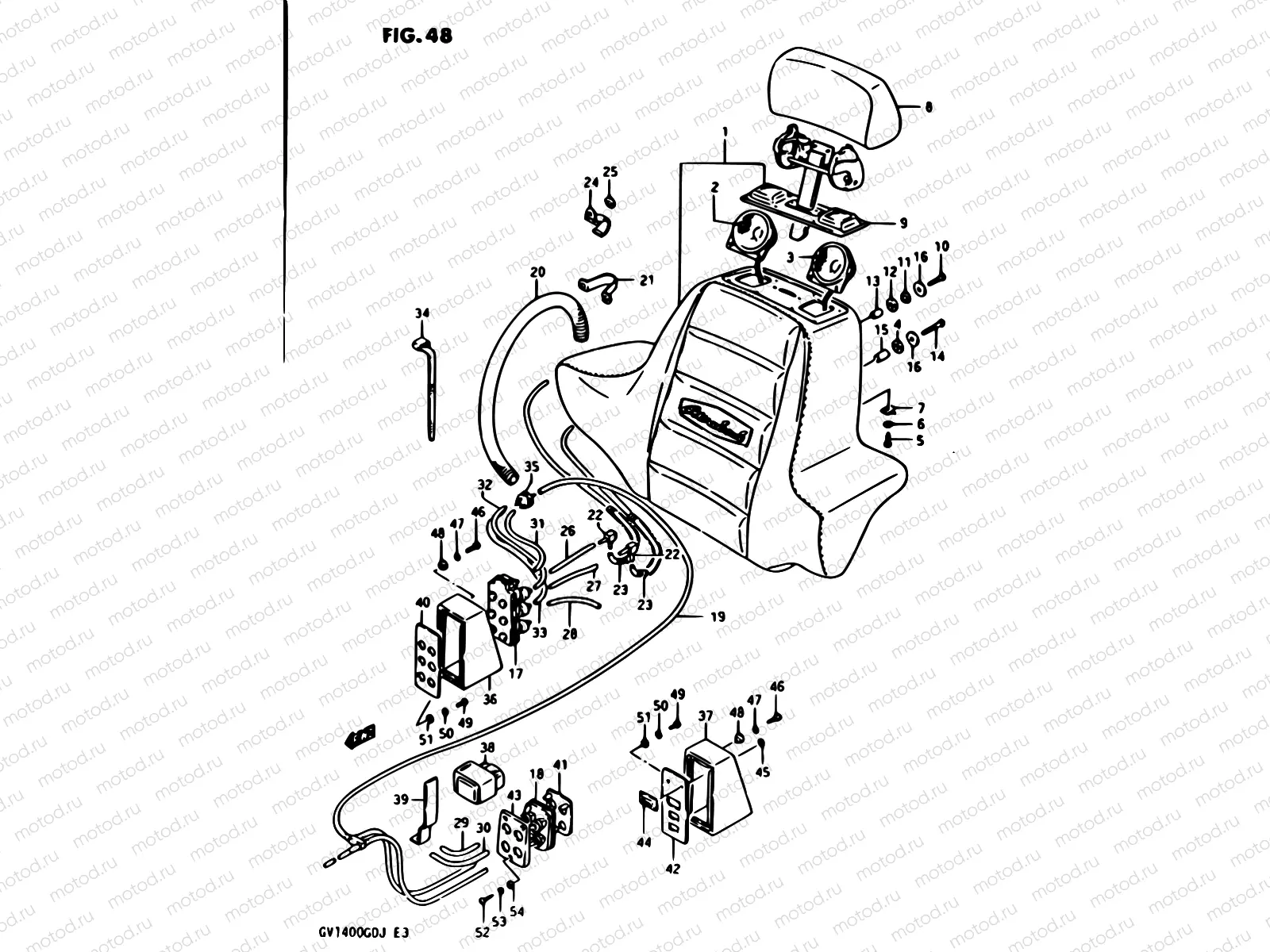

48 - TRAVEL TRUNK PAD GV1400GCG/GCH

48 - TRAVEL TRUNK PAD GV1400GCG/GCH

Например: 45300-24822-4FT

1

45300-24822-4FT

Pad set,travel trunk (black)

1

45300-24822-9HN

Pad set,travel trunk

1

45300-24822-9HP

ad set,travel trunk

2

39102-24A50

.speaker assy,rear, rh

3

39102-24A60

.speaker assy,rear, lh

4

45358-24A00

Cushion,pad assy,no.

5

03141-05205

Screw l:20

6

09169-06011

Пластина замка

759 ₽/шт

7

09148-05019

Гайка

102 ₽/шт

8

45600-24A01-8VJ

Pad assy,headrest

8

45600-24A01-9HL

Pad assy,headrest

8

45600-24A01-9HM

Pad assy,headrest

9

45650-24A01

Speaker rear cover

10

09139-06047

Screw 6x30

11

45358-24A10

Seal washer,pad assy

12

09160-06052

Шайба

136 ₽/шт

13

09180-06271

Кольцо/шайба

172 ₽/шт

14

09139-06046

Screw, lower 6x40

15

09180-06125-XC0

Spacer,6.5x10.5

16

09160-06054

Шайба

129 ₽/шт

20

45427-24A10

Protector,pad assy t

21

45428-24A10

Holder,protector pad

22

09367-04005

Болт соединяющий

179 ₽/шт

23

09440-07052

Spring

24

09403-25302

Clamp

25

45358-24A10

Seal washer,pad assy

26

45422-24A10

Hose,outlet,no.1

27

45422-24A20

Hose,outlet,no.2

28

45422-24A30

Hose,outlet,no 3

29

45422-24A40

Hose,outlet,no.4

30

45422-24A50

Hose,outlet,no.5

31

45423-24A10

Hose,inlet, no 1

32

45423-24A20

Hose,inlet, no 2

33

45423-24A30

Hose, inlet, no 3

34

09407-18402

Струбцина (L:165)

211 ₽/шт

35

09367-04004

way

38

45470-24A00

Relay assy,seat

39

45430-24A00

Bracket,seat relay

40

45480-24A00

Panel comp,valve asy

42

45480-24A40

Panel comp,tuner asy

43

45483-24A00

Spacer,panel valve,f

44

68221-24A00

Emblem

45

09148-03002

NUT

129 ₽/шт

46

01104-05165

Bolt 5x16

47

08321-0105A

Пластина замка

81 ₽/шт

48

09169-05010

Шайба

1 370 ₽/шт

49

02112-0412A

Болт

85 ₽/шт

50

08321-0104A

Пластина замка

82 ₽/шт

51

08322-01047

Шайба

85 ₽/шт

52

02112-0420A

Болт

85 ₽/шт

53

08321-0104A

Пластина замка

82 ₽/шт

54

08322-01047

Шайба

85 ₽/шт

55

45356-24A21-4WH

Cover, pad (white)

56

45610-24A00-9BT

Cover, headrest
