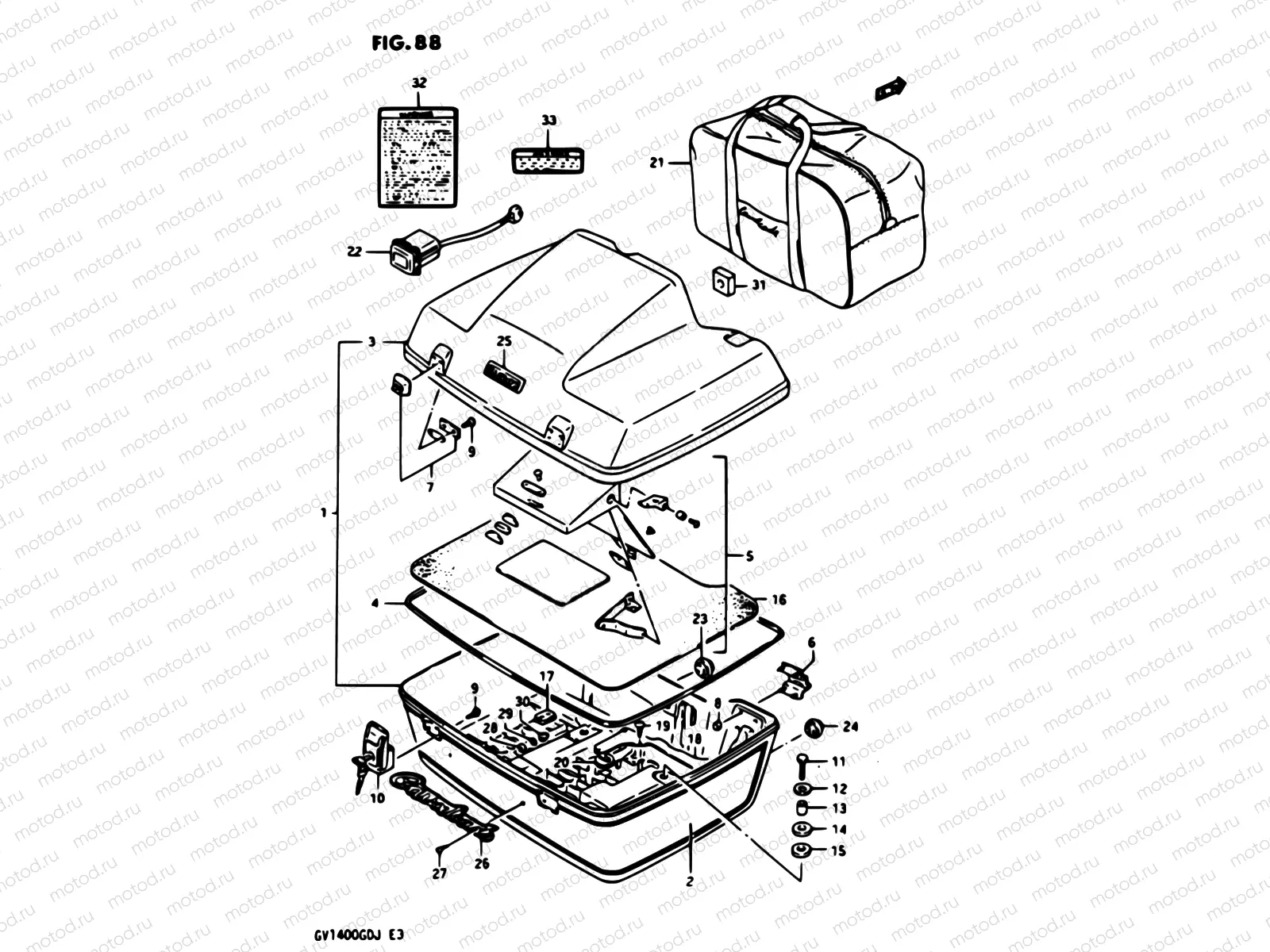

88 - TRAVEL TRUNK GV1400GCG

88 - TRAVEL TRUNK GV1400GCG

Например: 93100-24A00-8RB

1

93100-24A00-8RB

Trunk assy,travel

1

93100-24A40-8VA

Trunk assy,travel

2

68790-24A20-8JB

.tape set,travel trnk

2

68790-24A20-8UZ

.tape set,travel trnk

3

93120-24A10-27U

.lid,travel trunk (brown)

3

93120-24A10-24V

.lid,travel trunk (blue)

4

93115-24A00

..seal,trunk lid

5

93140-24A01

..mirror,travel trunk

6

93130-24A01

.hinge,travel trunk

7

93316-24A02

.lock plate,trunk lid

8

08313-11045

Гайка 4MM

980 ₽/шт

9

02142-0508A

SCREW

85 ₽/шт

10

93300-24820

Lock set,side bag

11

09118-06086

Болт 6X25

1 680 ₽/шт

12

09160-06105

Washer 6.3x34x1.6

13

09180-06055

Entretoise

14

09320-09030

Cushion, upper

15

09320-09030

Cushion, lower

16

95415-24A00

Seat, body

17

09309-20003

Grommet

18

93116-24A00

Cover,travel trunk a

19

03541-0410A

Болт

85 ₽/шт

20

09309-24001

Grommet, air seat hose

21

93410-24A01

Luggage bag,travel t

22

62680-24A00

Switch air aux

23

45425-24A00

Grommet

24

45426-24A90

Grommet, wire

25

68285-24A00

Emblem,trvl trnk,upr

26

68286-24A00

Emblem "cavalcade"

27

02132-03165

SCREW

740 ₽/шт

28

08322-0103B

Шайба

1 370 ₽/шт

29

09162-03001

Шайба блокирующая

900 ₽/шт

30

08313-11035

NUT

980 ₽/шт

31

45429-24A00

Seal air hose protcr

32

68613-24A20

Label,trunk warning

33

68619-24A00

Label,wrng shft lk r
