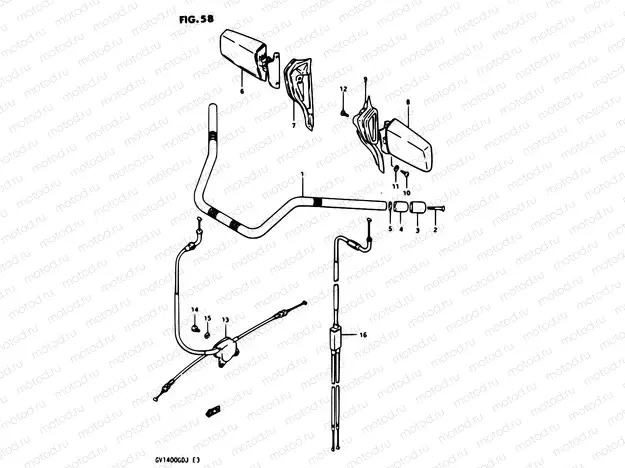

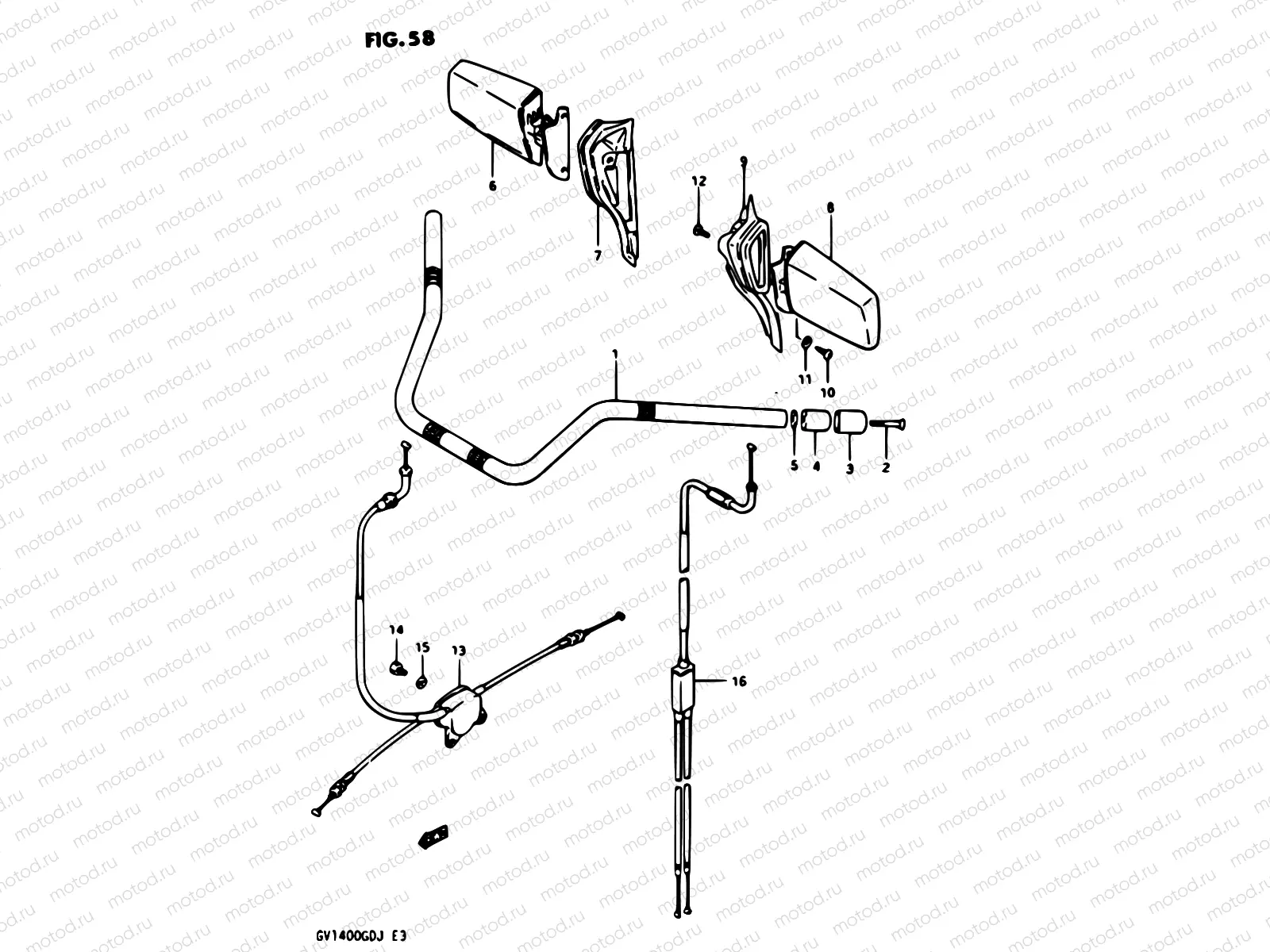

58 - HANDLEBAR-CONTROL CABLE GV1400GDG/GTG

58 - HANDLEBAR-CONTROL CABLE GV1400GDG/GTG

Например: 56110-24A31

1

56110-24A31

Handlebar

1

56110-24A41

Handlebar

2

02122-0665B

Болт

1 600 ₽/шт

3

56274-00A11

Cap

4

56271-00A00

BALANCER,HANDLEBAR

1 701 ₽/шт

5

56275-34401

SPACER,BALANCER

278 ₽/шт

6

56500-24A03

MIRROR ASSY,RR VIEW,R

9 736 ₽/шт

7

56550-24A00

Rubber, mirror,rh

8

56600-24A03

MIRROR ASSY,RR VIEW,L

9 736 ₽/шт

9

56650-24A00

Rubber,mirror l

10

02112-0416A

Болт

82 ₽/шт

11

08321-0104A

Пластина замка

82 ₽/шт

12

02142-0620B

Болт

1 060 ₽/шт

13

58300-24A01

Cable,throttle

13

58300-24A21

Cable,throttle

14

01500-06127

Болт

81 ₽/шт

15

08321-01067

Шайба, стопорная

81 ₽/шт

16

58410-24X00

Cable assy
