Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GD J Cavalcade SUZUKI 81 - OUTER COWLING MODEL H

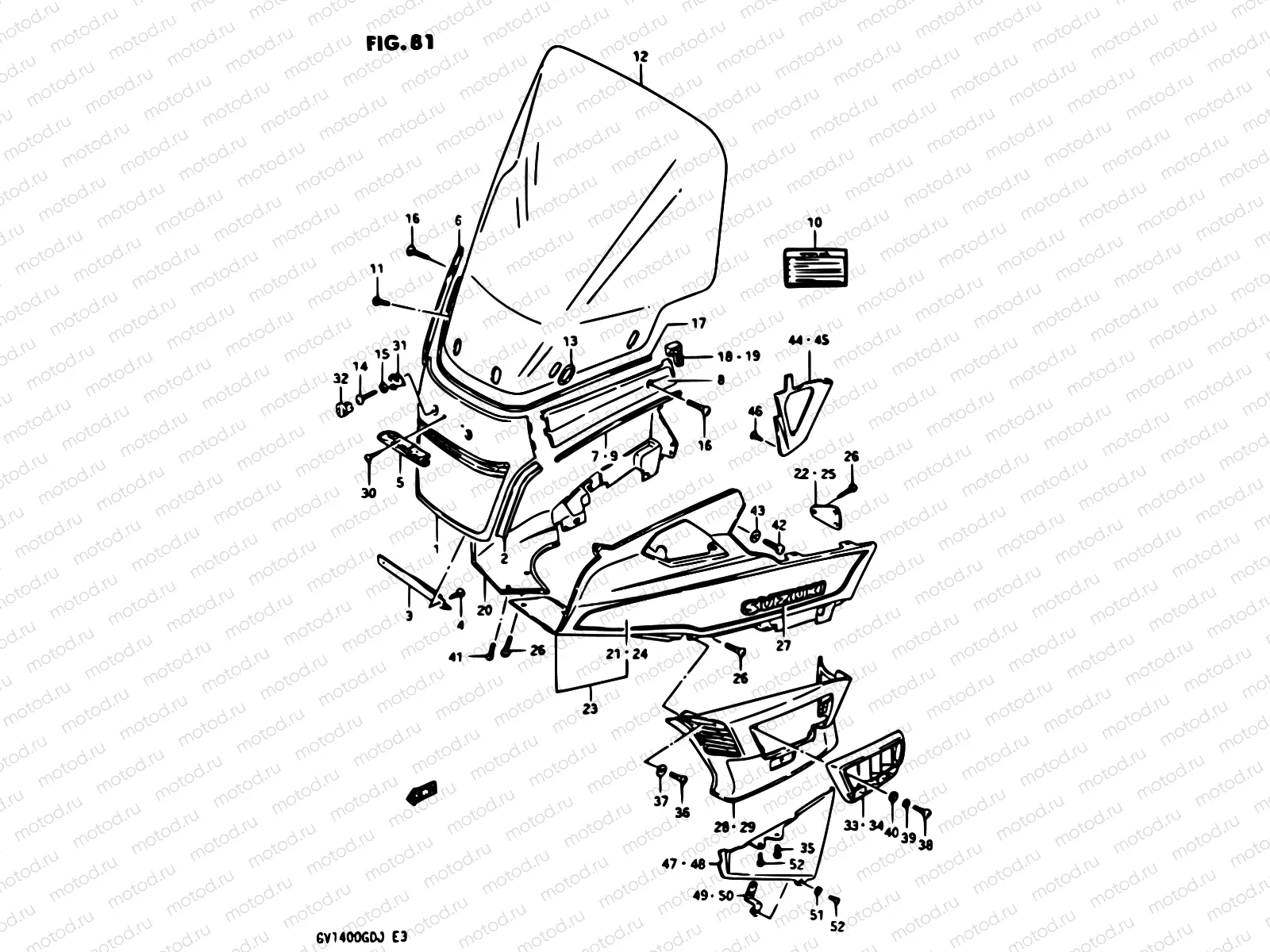

81 - OUTER COWLING MODEL H

81 - OUTER COWLING MODEL H

Например: 94411-24A00

1

94411-24A00

DEKSEL

2

94639-24A02

.molding fr cvr lower

3

94416-24A00

.bracket fr ctr under

4

03541-0412A

ШАЙБА

85 ₽/шт

5

68193-24A00

Emblem,cowling front

6

94412-24A01

Cover,fr cowling-rh

7

94636-24A02

.molding fr cvr r/l

8

94413-24A01

Cover,fr cowling-lh

9

94636-24A02

.molding fr cvr r/l

10

68612-24A01

Label warning screen

11

02142-0620B

Болт

1 060 ₽/шт

12

94610-24A01

Screen,cowling

12

94610-24A91

Extended windshield

13

94614-24A00

Washer,screen

14

02112-0625A

Болт

85 ₽/шт

15

08322-0106A

Шайба

81 ₽/шт

16

02112-0512A

Болт

85 ₽/шт

17

94635-24A00

Seal,front cover,ctr

18

94637-24A00

Cap,cowl front cover, rh

19

94647-24A00

Cap

20

94450-24A40-9EF

Body, cowl, rh (black/silver)

20

94450-24A40-9EE

Body,cowl, rh (maroon/silver)

20

94450-24A30-34B

ody, cowl, rh (blue)

20

94450-24A30-20H

Body, cowl, rh (silver)

21

68680-24A40-9EA

.tape set cowling str, rh

21

68680-24A30-9EC

.tape set cowling str, rh

21

68680-24A30-9ED

.tape set cowling str, rh

21

68680-24A40-9EB

.tape set cowling str, rh

22

94499-24A00

.bracket,cow body rr

23

94460-24A40-9EE

Body, cowl, lh (maroon/silver)

23

94460-24A40-9EF

Body, cowl, lh ( black/silver)

23

94460-24A30-20H

Body, cowl, lh (silver)

23

94460-24A30-34B

ocy, cowl, lh (blue)

24

68690-24A40-9EB

.tape set cowling str, lh

24

68690-24A30-9EC

.tape set cowling str, lh

24

68690-24A30-9ED

.tape set cowling str, lh

24

68690-24A40-9EA

.tape set cowling str, lh

25

94499-24A00

.bracket,cow body rr

26

02142-06127

Винт 6X12

81 ₽/шт

26

02142-0616A

Болт

81 ₽/шт

27

68111-24A00

Emblem

28

94430-24A01-34B

Cover assy cowl side, rh (blue)

28

94430-24A01-20H

Cover assy cowl side, rh (silver)

28

94430-24A10-13Z

Cover assy cowl side, rh (black)

28

94430-24A10-24D

Cover assy cowl side, rh (maroon)

29

94440-24A10-24D

Cover assy,cowl side, lh (maroon)

29

94440-24A10-13Z

Cover assy,cowl side, lh (black)

29

94440-24A01-34B

Cover assy,cowl side, lh (blue)

29

94440-24A01-20H

Cover assy,cowl side, lh (silver)

30

02132-03125

Screw

31

94456-24A11

Lock plate,front cov

32

94457-24A11

CAP,FR COVER

524 ₽/шт

33

94435-24A01

Louver,side cover, rh

34

94445-24A01

Louver,side cover, lh

35

02142-0616A

Болт

81 ₽/шт

36

02142-0416A

Болт

1 090 ₽/шт

37

09160-04022

Шайба

1 020 ₽/шт

38

02112-0416A

Болт

82 ₽/шт

39

08321-0104A

Пластина замка

82 ₽/шт

40

08322-0104B

Шайба

81 ₽/шт

41

02142-0516B

Болт

85 ₽/шт

42

02112-0616A

Болт

81 ₽/шт

43

08322-0106A

Шайба

81 ₽/шт

44

94436-24A01

Under cover,cov fram, rh

45

94446-24A01

Under cover,cov fram, lh

46

03541-0408A

Болт

820 ₽/шт

47

47135-24A00

Cover,cowl side lowr, rh

48

47235-24A00

Cover,cowl side lowr, lh

49

47130-24A01

Brkt,cowl side low, rh

50

47230-24A01

Brkt,cowl sd lower, lh

51

09160-05037

Шайба

97 ₽/шт

52

02142-0510A

Болт

82 ₽/шт
