Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GD J Cavalcade SUZUKI 84 - COWLING BRACE

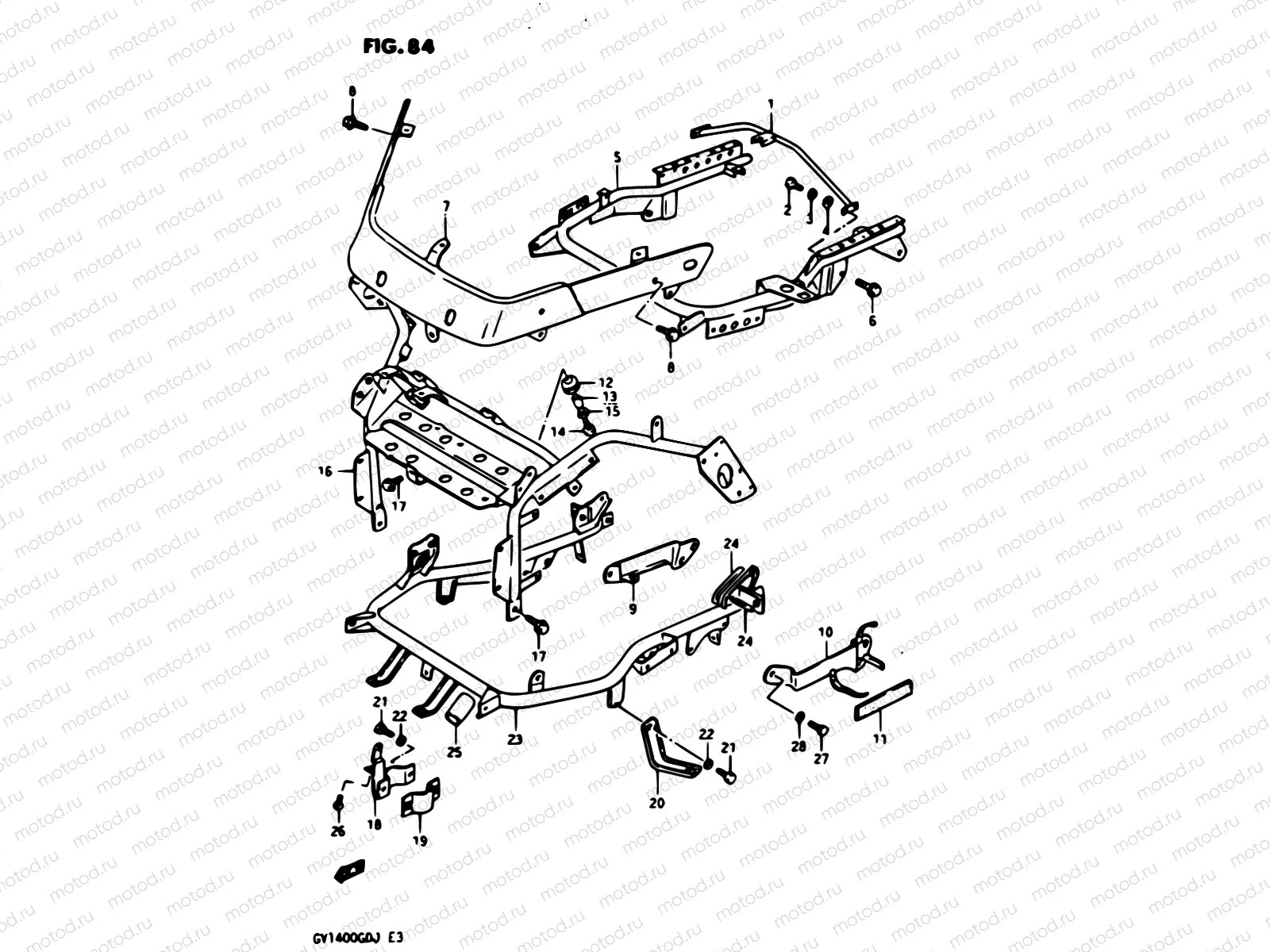

84 - COWLING BRACE

84 - COWLING BRACE

Например: 94650-24A00

1

94650-24A00

Brace,center cover

2

01500-0512B

Болт

1 060 ₽/шт

3

08321-0105A

Пластина замка

81 ₽/шт

4

08322-0105B

Шайба

81 ₽/шт

5

94510-24A01

Brace,upper

6

01550-0816B

Болт крепёжный

97 ₽/шт

7

94540-24A01

Brace,screen

8

01550-0616B

БОЛТ

81 ₽/шт

9

94764-24A00

Reinforcement, rh

10

94774-24A00

Reinforcement, lh

11

94763-24A00

Cushion

12

09320-08527

Cushion

1 640 ₽/шт

13

09180-06248

Кольцо/шайба

179 ₽/шт

14

01500-0616B

Болт

1 330 ₽/шт

15

09160-06054

Шайба

129 ₽/шт

16

94530-24A11

Brace,headlamp

16

94530-24A02

Brace,headlamp

17

01550-0612B

БОЛТ

81 ₽/шт

18

94470-24A00

Bracket comp,cowl st, rh no.1

19

94480-24A00

Bracket comp,cowl si, rh no.2

20

94490-24A00

Bracket comp,cowl co, lh

21

09118-06086

Болт 6X25

1 680 ₽/шт

22

08321-0106A

Шайба

81 ₽/шт

23

94520-24A00

Brace,rear

24

47445-24B00

MOLDING

238 ₽/шт

25

94632-24A00

Protector rr brace

26

02142-0616A

Болт

81 ₽/шт

27

01500-0616B

Болт

1 330 ₽/шт

28

09160-06054

Шайба

129 ₽/шт
