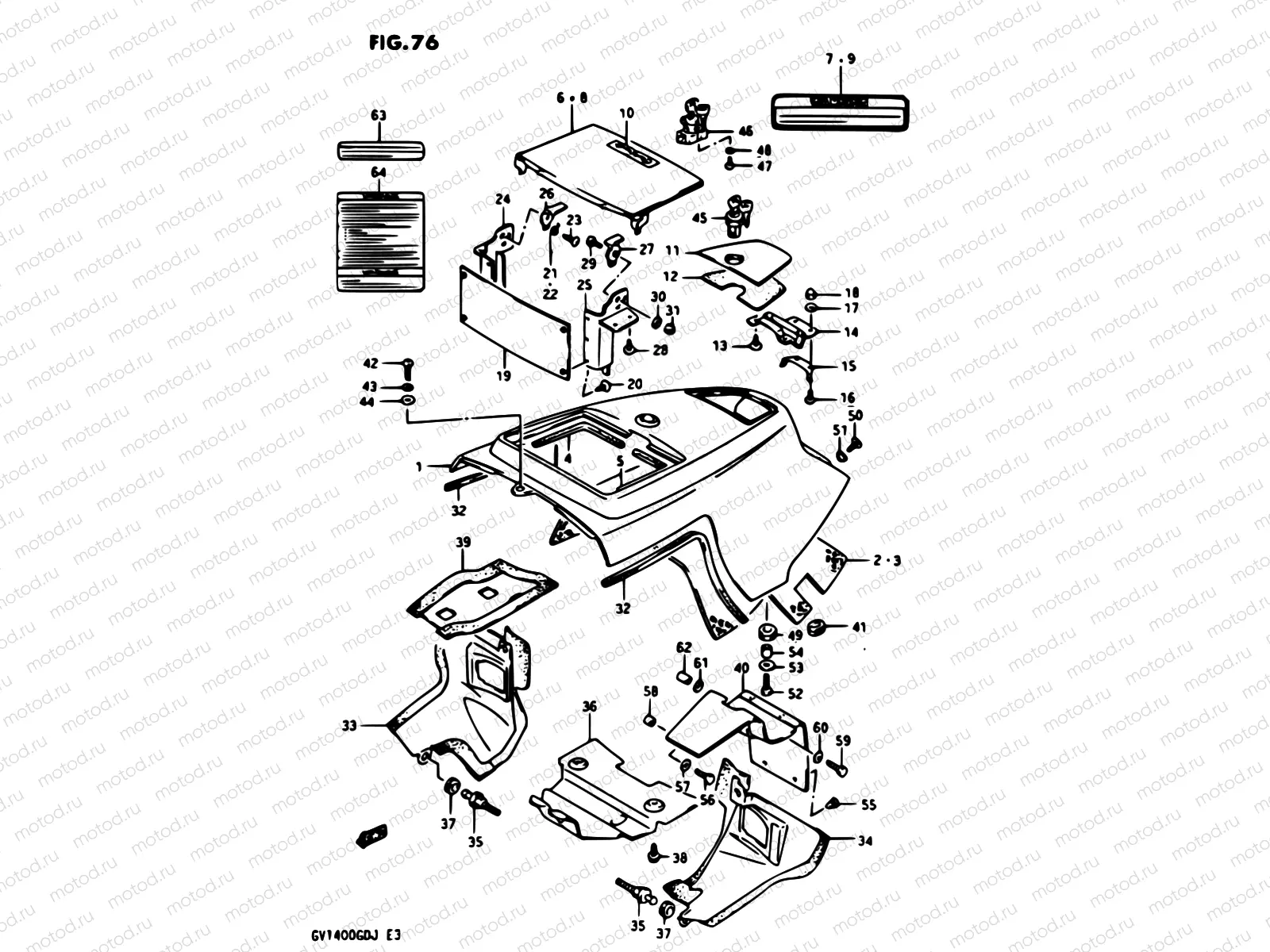

76 - FRAME UPPER COVER MODEL G

76 - FRAME UPPER COVER MODEL G

Например: 47300-24A00-24V

1

47300-24A00-24V

Cover assy,frame upp (blue)

1

47300-24A00-27U

Cover, frame upper (brown)

1

47300-24A00-24H

Cover assy,frame upp (brown)

1

47300-24A00-24G

Cover assy,frame upp (gold)

1

47300-24A00-24K

Cover, frame upper (charcoal)

1

47300-24A00-12S

Cover frame upper (maroon)

2

47315-24A02

.cushion,frame upper. rh

3

47316-24A02

.cushion,frame upper, lh

4

47391-24A01

.cushion audio lid, rh

5

47392-24A01

.cushion audio lid, lh

6

47300-24840-24V

.lid set,audio (blue)

6

47300-24840-27U

.lid set,audio (brown)

6

47300-24820-24H

.lid set, audio (brown)

6

47300-24820-24G

.lid set audio (gold)

7

68618-24A00

.label,wrng cover sde

7

68617-24A00

..label,wrng audio lid

8

47300-24830-24K

..lid set audio (charcoal)

8

47300-24830-12S

.lid set audio (maroon)

9

68611-24A00

..label,wrn, audio lid

10

68282-24A00-7ZW

.emblem, audio lid

11

47380-24A00-24V

.lid,fuel (blue)

11

47380-24A00-24G

.lid, fuel (gold)

11

47380-24A00-24H

.lid, fuel (brown)

11

47380-24A00-12S

.lid, fuel (maroon)

11

47380-24A00-24K

.lid, fuel (charcoal)

11

47380-24A00-27U

.lid fuel (brown)

12

47385-24A01

..cushion,fuel lid(na)

13

03541-0508A

Болт

820 ₽/шт

14

47382-24A01

.hinge,full lid

15

47388-24A00

.spring,hinge

16

02142-0410A

Винт

81 ₽/шт

17

08322-0104B

Шайба

81 ₽/шт

18

08313-11045

Гайка 4MM

980 ₽/шт

19

47635-24A01

.holder, audio lid

20

03541-0512B

Винт

81 ₽/шт

21

09444-07001

.spring,audio lid, rh

22

09444-07002

.spring, lh

23

03541-0412A

ШАЙБА

85 ₽/шт

24

47633-24A00

.rail, rh

25

47634-24A00

.rail, lh

26

47631-24A01

.rail piece, rh

27

47632-24A01

.rail piece, lh

28

03541-0510A

Болт

72 ₽/шт

29

02112-0516B

Болт

1 090 ₽/шт

30

08212-05161

WASHER

900 ₽/шт

31

08319-2105A

Гайка

97 ₽/шт

32

47389-24A01

.molding,cover fr up

33

47810-24A01

Cover,inner, rh

34

47820-24A01

Cover,inner, lh

35

47250-38A01

BOSS,FRAME COVER

355 ₽/шт

36

47850-24A00

Cover comp,inner

37

09320-08509

Cushion(8X22X7)

210 ₽/шт

38

01550-06207

БОЛТ

85 ₽/шт

39

47830-24A00

Cover comp,upper, rh

40

47840-24A00

Cover comp,upper, lh

41

09308-05024

Grommet

4 260 ₽/шт

42

02112-0620A

Болт

85 ₽/шт

43

08321-0106A

Шайба

81 ₽/шт

44

09160-06109

Шайба

85 ₽/шт

45

95700-24820

LOCK SET,TOOL HOLDER

5 279 ₽/шт

46

95700-24880

Lock set,audio lid

47

02112-0306B

Болт

940 ₽/шт

48

09162-03001

Шайба блокирующая

900 ₽/шт

49

09320-08527

Cushion

1 640 ₽/шт

50

02142-0616A

Болт

81 ₽/шт

51

09169-06071

Шайба

97 ₽/шт

52

01500-0625B

Болт

1 330 ₽/шт

53

08322-0106A

Шайба

81 ₽/шт

54

09180-06248

Кольцо/шайба

179 ₽/шт

55

09229-06004

Rivet

56

01500-06207

Болт

81 ₽/шт

57

09160-06052

Шайба

136 ₽/шт

58

09180-06141-XC0

Spacer

59

01500-0625B

Болт

1 330 ₽/шт

60

08322-0106A

Шайба

81 ₽/шт

61

09160-06125

Шайба

82 ₽/шт

62

09180-06296

Кольцо/шайба

211 ₽/шт

63

68614-24A01

Label,wrng audio box

64

68616-24A20

Label,acc/load warni

64

68616-24A02

Label,wrng acc/loadg
