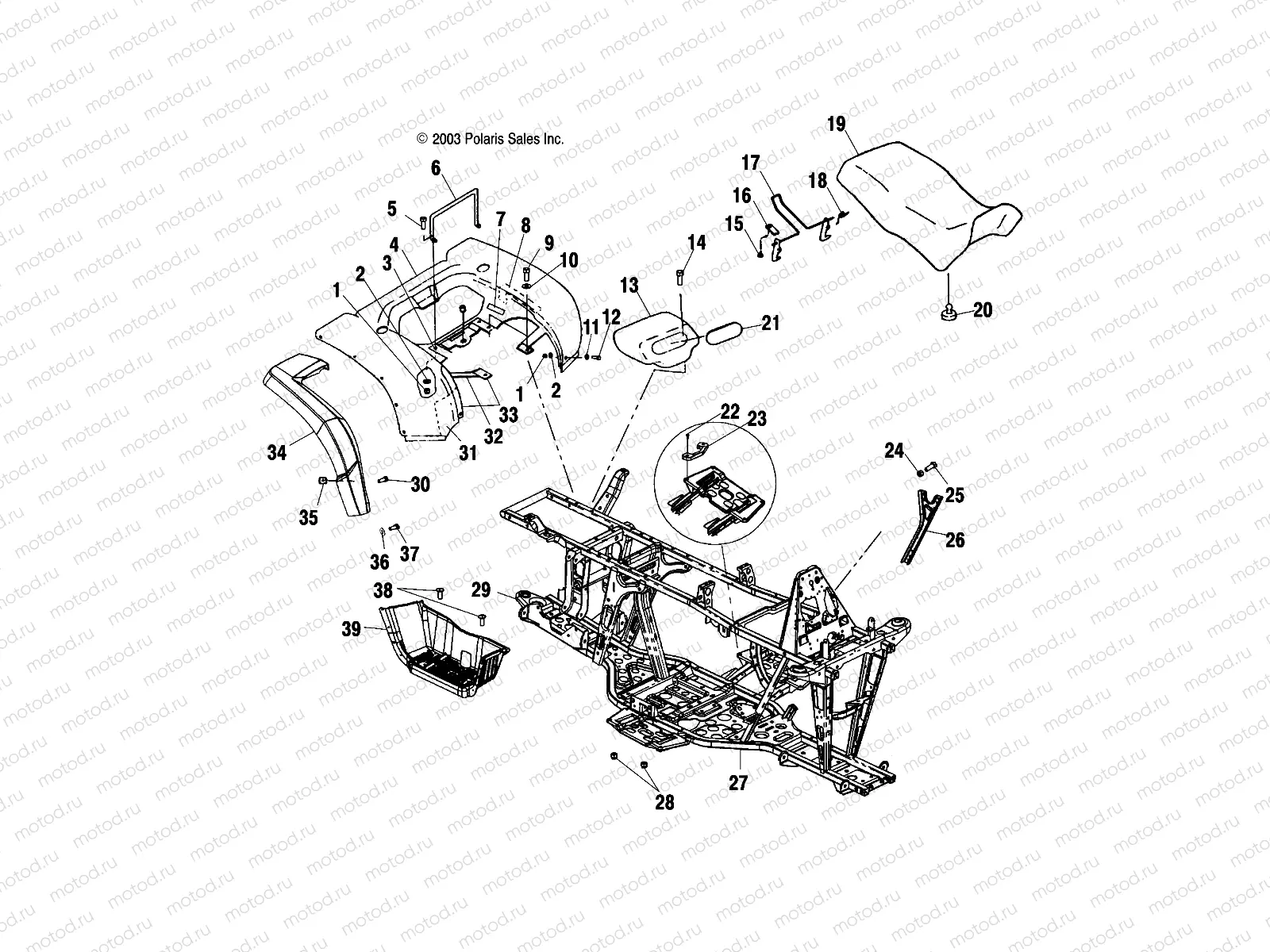

REAR CAB/SEAT/MAIN FRAME - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A03) | REAR CAB/SEAT/MAIN FRAME - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A03)

REAR CAB/SEAT/MAIN FRAME - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A03) | REAR CAB/SEAT/MAIN FRAME - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A03)

Например: 7541925

1

7541925

NUT NYLOK 10-24 Y

2

7555792

Rondelle

3

5811107

FOIL REAR

4

5435164-456

Cab, Rear, Shadowgrass [AV]

4

5432117-400

CAB-REAR CAMO GREEN MET

4

5435164-455

CAB-RR N.B.U.

4

5432117-293

CAB-REAR GEN 4 INDY RED

4

5432117-293

CAB-REAR GEN 4 INDY RED

5

7511930

Vis

6

5246076

RETAINER-SEAT LATCH

7

7079902

DECAL-4 STRK,CARB/FILTER INFO

8

5811308

FOIL TAPE 3 X 12

9

7512242

Vis

10

7555859

WASHER FLAT

11

7556034

Rondelle

12

7519641

BLT-10-24X3/4 MACHSCR PHL PAN

13

5431786

TOOLBOX

14

7517312

Vis

15

7621403

BLIND RIVET

16

5211033

BRACKET LEVER RETAINER

17

1040387

LATCH SEAT

18

7041370

SPRING LATCH

19

2683197-070

ASM-SEAT BLK

19

2683197-070

ASM-SEAT BLK

19

2684055

ASM-COVER TBOSS WHITE DECAL

20

5412067

BUMPER-RUBBER (.31) SHORT

21

5431787

COVER TOOLBOX

22

7517377

Vis

23

5432280

SPACER FOOTWELL

24

7542153

NUT NYLOK FLANGED

25

7512283

SCREW SEMS

26

5244751-067

BRACE-SUPPORT FRAME FRT LH BLK

27

1014260-067

Frame, Main

28

7542122

NUT-NYLOK

29

7170509

DECAL-HITCH

30

7512232

Vis

31

5811111

FOIL

32

5811087

FOIL (6X1)

33

5811106

FOIL FRONT

34

5434705-070

GUARD-MUD REAR RH BLK

34

5434704-070

GUARD-MUD REAR LH BLK

35

7670057

NUT SPEED

36

7555832

Rondelle

37

7517312

Vis

38

7517264

Vis

38

7512279

Vis

39

5433929-070

FOOTWELL-NYLON RH SERVICE BLK

39

5432221-070

FOOTWELL LH BLK NYLON
