Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV Polaris 2004 ATV FRONT RACK AND BUMPER MOUNTING - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A07) | FRONT RACK AND BUMPER MOUNTING - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A07)

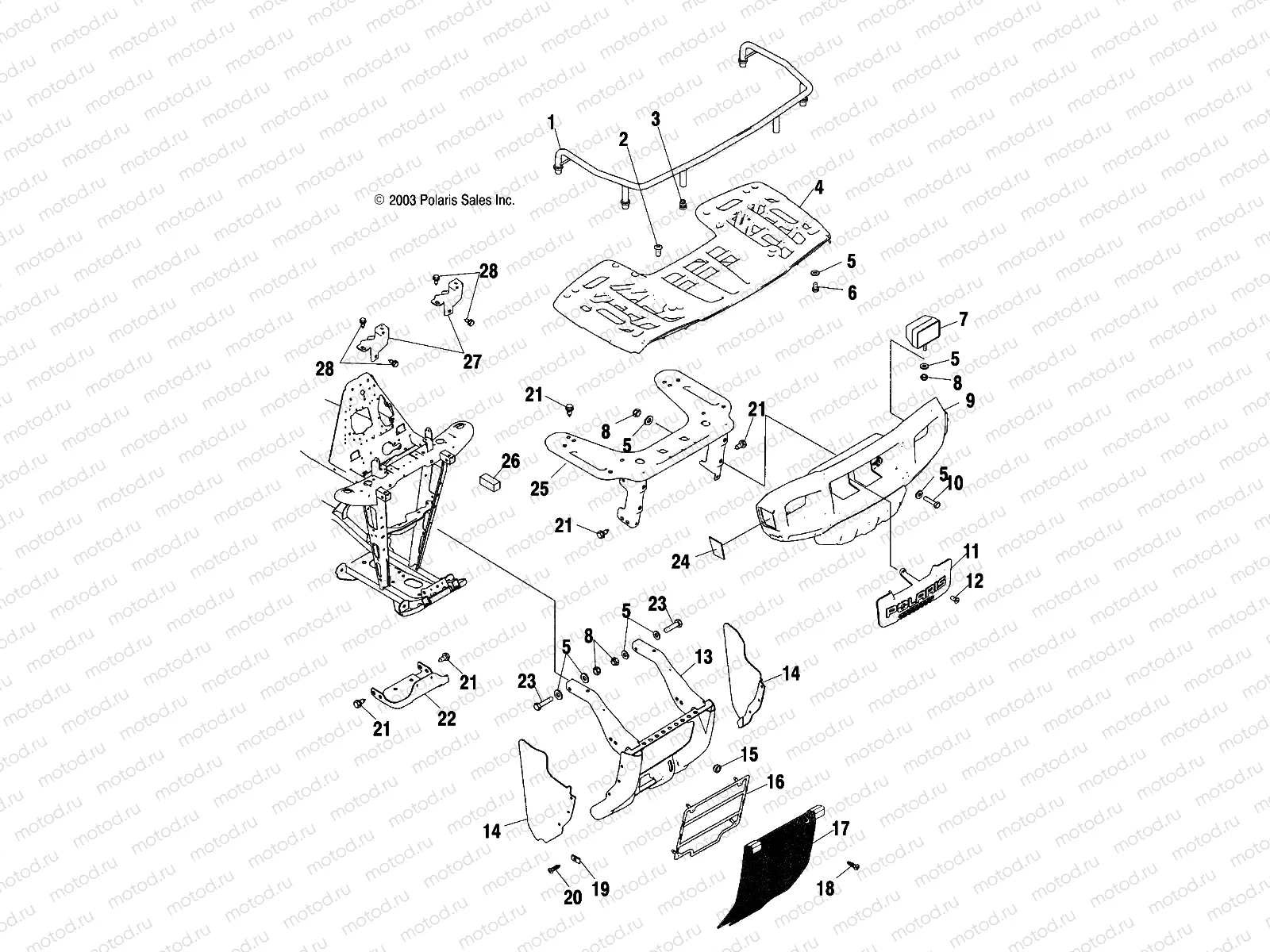

FRONT RACK AND BUMPER MOUNTING - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A07) | FRONT RACK AND BUMPER MOUNTING - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A07)

FRONT RACK AND BUMPER MOUNTING - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A07) | FRONT RACK AND BUMPER MOUNTING - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A07)

Например: 1013972-067

1

1013972-067

"""WELD-FRONT RACK EXT GEN VI BLK"""

1

1013972-418

WELD-FR.RACK.EXT.BLK-KRINKL

2

7517685

Vis

3

7081085

PLUG-BARBED .625

4

5434697-070

Rack, Front, Black [If built before 2/03/03]

4

5435240-070

RACK-FRONT GEN VI BLK

5

7558402

WASHER FLAT

6

7517208

Vis

7

4030059

BULB H/L 27W.HOBBS

7

2431017

H/L ASM 27W BOTT.MT.

8

7542324

Nut (SELF-LOCKING)

9

2632757-070

ASM-FRONT BUMPER BLK

10

7515352

Vis

11

5434699-070

PANEL-BUMPER FRONT BLK

12

7512094

Vis

13

1014412-067

WELD-GUARD BRUSH BLACK

14

5434315

SHIELD-RADIATOR SIDE RH

14

5434314

SHIELD-RADIATOR SIDE LH

15

5412504

GROMMET-RUBBER MOUNT 25

16

5435046

COVER-RADIATOR MESH LG

17

5247507-067

GRILL-BRUSH GUARD BLK

18

7518046

SCR-#8X1 PN-PH H/L-Y

19

7670094

Nut

20

7512097

Vis

21

7515399

Vis

22

5245767-067

BUMPER-BRKT LOWER BLK

23

7512329

Vis

24

7171475

Decal, Reflector, Amber, RH

24

7171474

Decal, Reflector, Amber, LH

25

1014020-067

WELD-SUPPORT RACK FRONT BLK

26

5810467

PLUG FRAME

27

1014261-067

WELD-SUPPORT RACK FRONT LH BLK

27

1014262-067

WELD-SUPPORT RACK FRONT RH BLK

28

7512232

Vis
