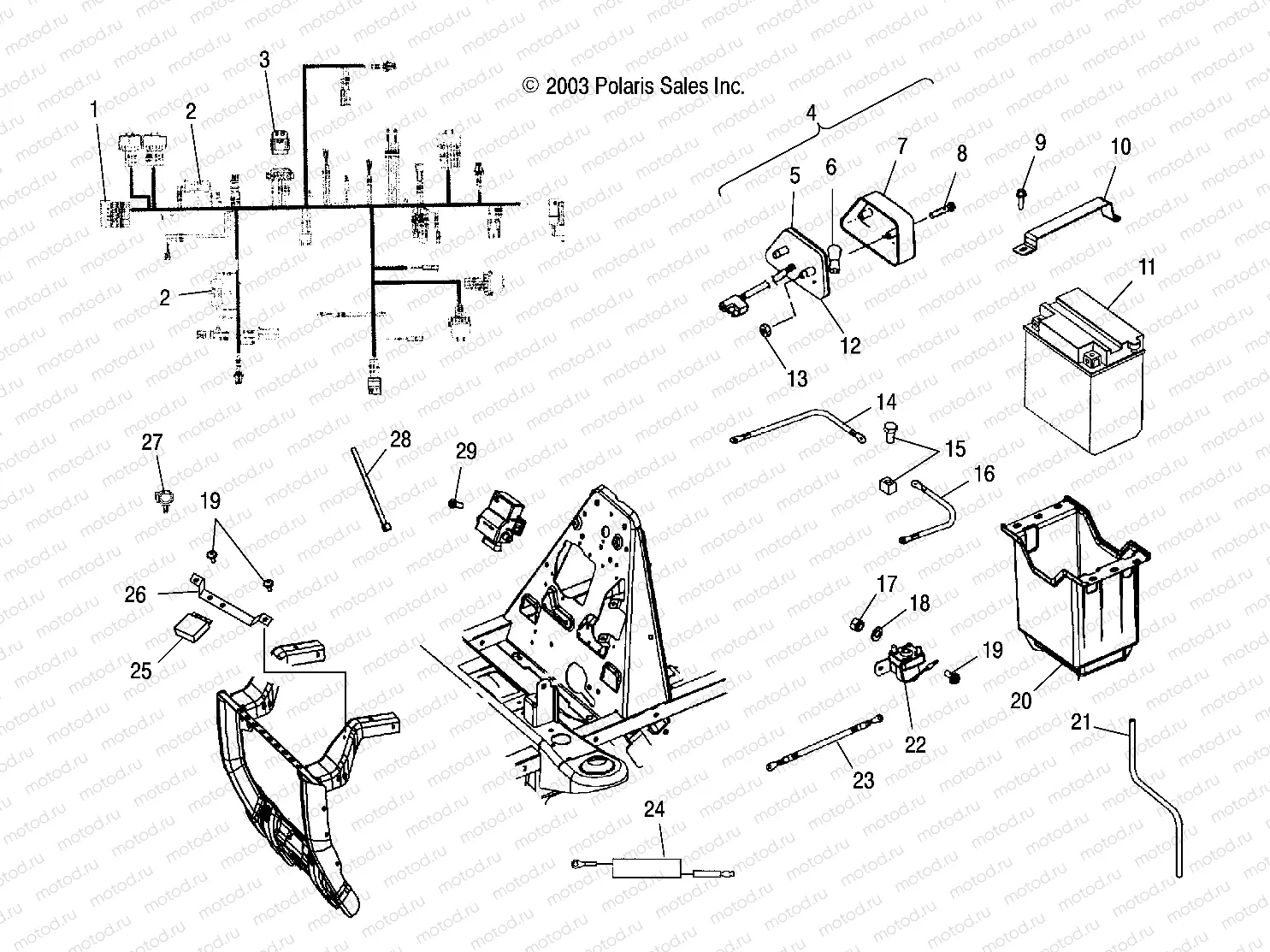

ELECTRICAL/TAILLIGHT - A04CH68AC/AF/AH/AJ/AT/AV (4986108610C07) | ELECTRICAL/TAILLIGHT - A04CH68AC/AF/AH/AJ/AT/AV (4986108610C07)

ELECTRICAL/TAILLIGHT - A04CH68AC/AF/AH/AJ/AT/AV (4986108610C07) | ELECTRICAL/TAILLIGHT - A04CH68AC/AF/AH/AJ/AT/AV (4986108610C07)

Например: 2460976

1

2460976

Harness, Main [If built before 2/17/03]

1

2202147

KIT-FUSIBLE LINK

1

2461177

HARNESS-MAIN SPORTSMAN 600/700

2

2410323

BREAKER-CIRCUT 20 AMP

3

2204890

KIT-HARNESS RESISTOR MODULE

4

2410320

ASM-TAILLIGHT 12V SERIES FIL

5

4032045

Gasket

6

4030043

BULB

7

4032046

Taillight lens

8

4032029

Vis

9

7517386

Vis

10

5245125-067

STRAP-BATTERY HOLDDOWN30AMP BK

11

4016741

La batterie

12

4032064

BACKING TAILLIGHT

13

7670054

NUT PUSH-ON

14

4010470

Cable

15

2202099

BATTERY BOLT-KIT 30AH

16

4010471

CABLE-RED 8.5 BATTERY/SOLENOID

17

7542105

NUT HEX

18

7552801

Rondelle (Lock)

19

7512024

Vis

20

5434037

BOX-BATTERY

21

5432077

TUBE VENT

22

4011335

SWITCH-MAGNETIC

23

4010376

CABLE SOLENOID/STATER.25

24

2410411

Jumper, Harness (If built 2/03/03 to 3/05/03)

25

2204317

KIT-RCT/REG RPL 4010929

25

2203638

KIT RCT-REG RPLC 4010670

25

2205236

KIT-RECT REG LR-302

26

5133182

HEAT-SINK RECT.

27

4020139

CLIP ROSEBUD

28

7080138

CABLE TIE

29

7512027

Vis
