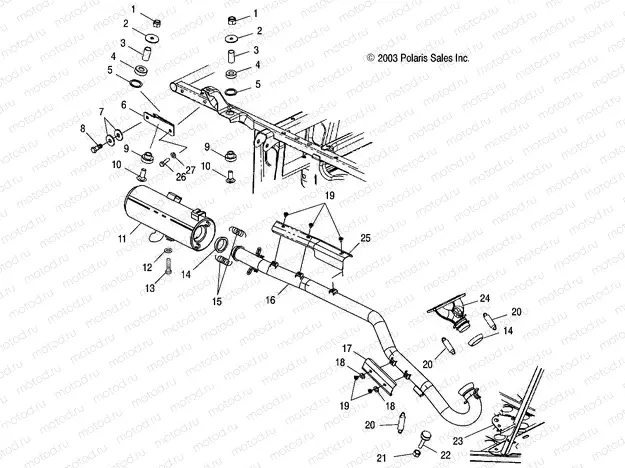

EXHAUST SYSTEM - A04CH68AC/AF/AH/AJ/AT/AV (4987468746A11) | EXHAUST SYSTEM - A04CH68AC/AF/AH/AJ/AT/AV (4987468746A11)

EXHAUST SYSTEM - A04CH68AC/AF/AH/AJ/AT/AV (4987468746A11) | EXHAUST SYSTEM - A04CH68AC/AF/AH/AJ/AT/AV (4987468746A11)

Например: 7542324

1

7542324

Nut (SELF-LOCKING)

2

7555716

Rondelle

3

5010192

BUSHING

4

5410436

Rondelle (Rubber)

5

7555863

Rondelle

6

5241663

BRKT-SILENCER FRAME PLTD

8

7517615

Vis

9

5412508

DAMPENER-VIBRATION

10

7515316

Vis

11

1261223-489

WELD-EXHAUST SILENCER BLK

12

7556230

WASHER-CLEAN OUT .51X.75X.09 (

13

7512666

Vis

14

3610047

SEAL EXH.SOCKET

15

7041804

Spring

16

1261242-489

WELD-EXHAUST PIPE 1.75 OD BLK

17

5244014

SHIELD-HEAT EXHAUST

18

7555935

Rondelle

19

7515197

Vis

20

7041789

Spring

21

7542301

NUT HEX

22

3022073

ISOLATOR-STOP 5/16-18M 65DURO

23

7547101

NUTSERT-5/16-18(.027-.150) HXY

24

1261077-489

WELD-MANIFOLD TWIN BLK

25

5245502

SHIELD-HEAT EXHAUST

26

7512329

Vis

27

7558402
