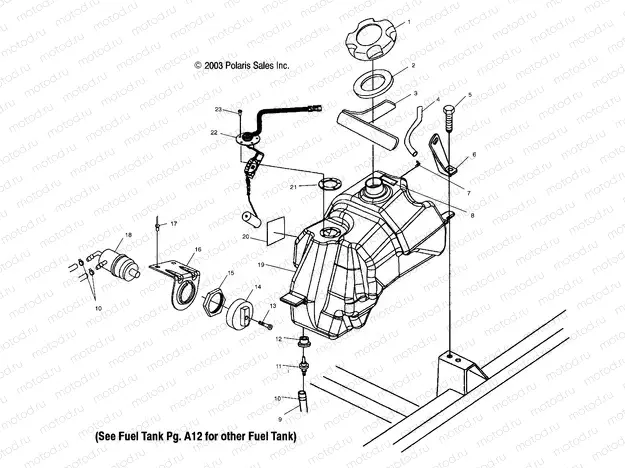

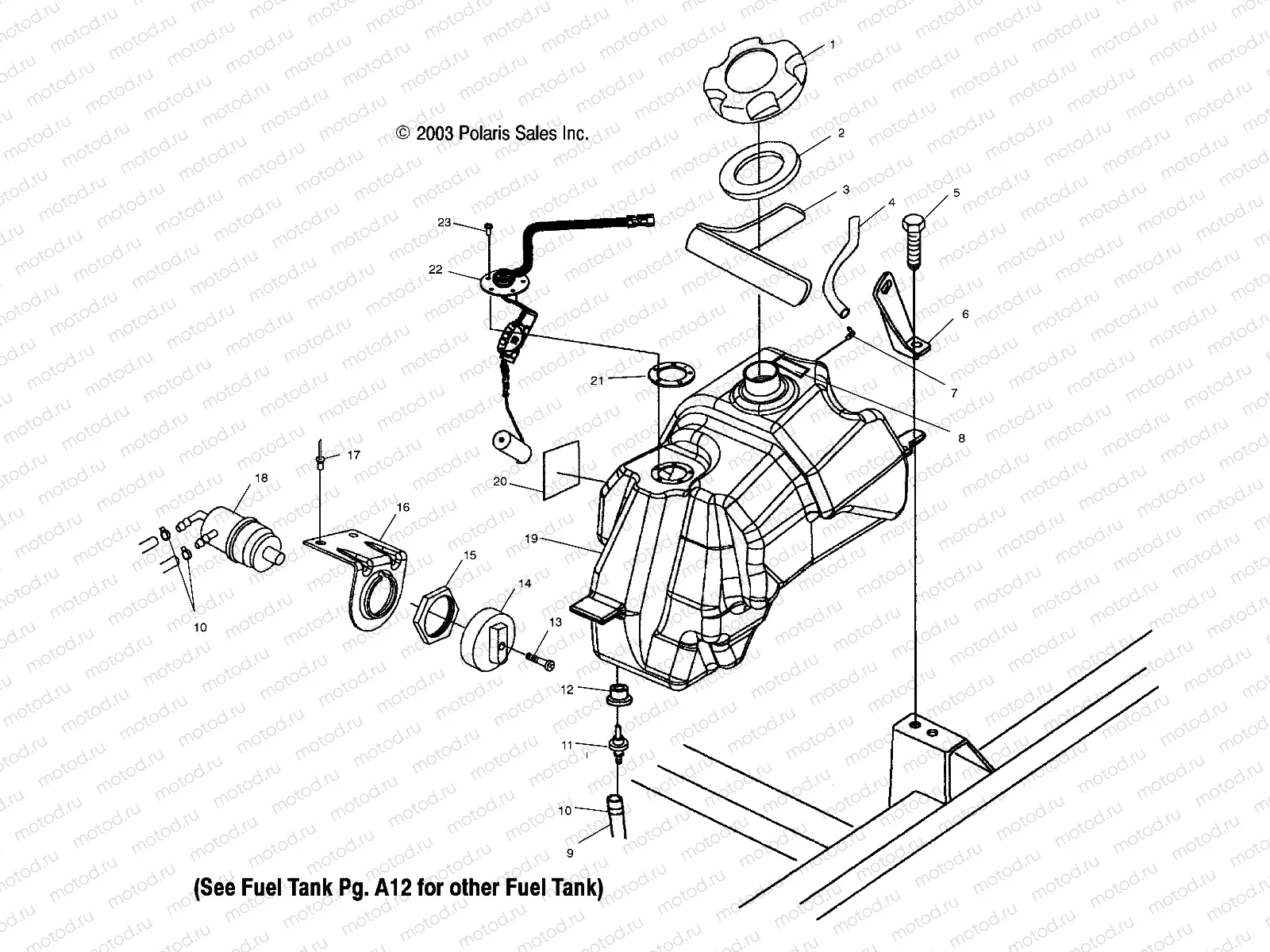

FUEL TANK - A04CH68AT/AV (4986128612E03) | FUEL TANK - A04CH68AT/AV (4986128612E03)

FUEL TANK - A04CH68AT/AV (4986128612E03) | FUEL TANK - A04CH68AT/AV (4986128612E03)

Например: 5450389

1

5450389

Fuel cap

1

5450389

Fuel cap

2

5812123

Gasket

3

5812265

SEAL-FOAM 12 IN

4

8360009-600

LINE FUEL 1/8 ID 600 CM.

5

7517685

Vis

6

5247184

BRKT-FUEL COVER MT LH PLTD

6

5247185

BRKT-FUEL COVER MT RH PLTD

7

5431053

VENT TANK

8

5813044

FOIL-FUEL TANK

9

8450117-250

FUEL HOSE-250 CM

10

7080003

CLAMP HOSE

11

7052346

FITTING-FUEL OUTLET RES Z PRS

12

7052362

GROMMET-FLANGED .36X.56X1.06

13

7517505

Vis

14

5432559

KNOB FUEL VALVE

15

5432733

NUT FUEL VALVE

16

5247585

Bracket, Fuel Valve

17

7661637

RIVET INTERLOCK Z

18

7052159

VALVE ON/OFF

19

2520556

ASM-FUEL TANK W/SENDER

20

5813045

FOIL-FUEL TANK 9.5X7.125

21

5810858

Gasket

22

2410289

"""SENDER-FUEL LEVEL ATV VRBLR"""

23

7512056
