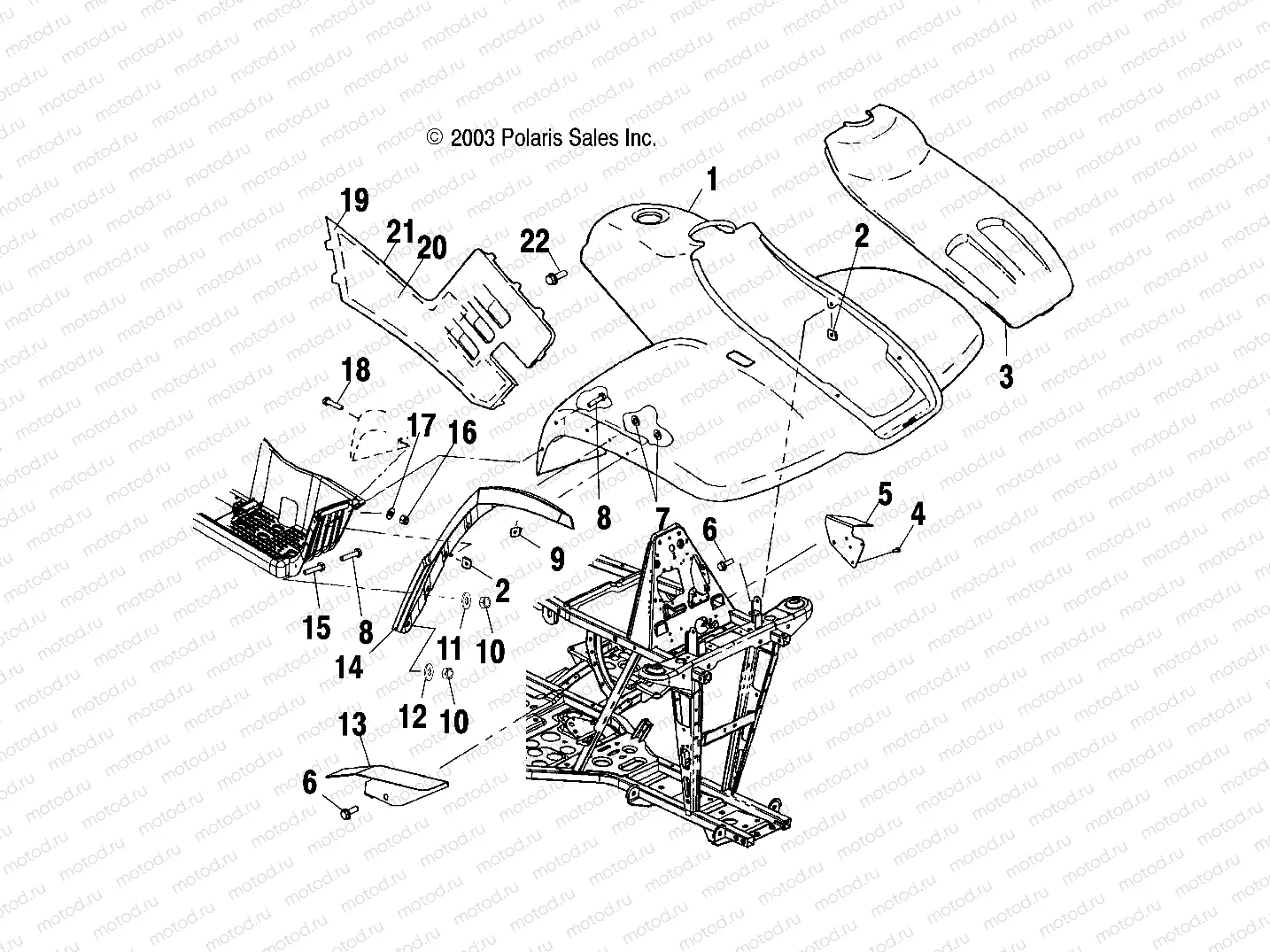

FRONT CAB - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A05) | FRONT CAB - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A05)

FRONT CAB - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A05) | FRONT CAB - A04CH68AC/AF/AH/AJ/AT/AV (4986128612A05)

Например: 2632748-053

1

2632748-053

Cab, Front,Med. Yellow (AR)

1

2632748-400

Cab, Front [AA]

1

2632818-456

ASM-CAB FR.SVC SHADOW GRSS SUB

1

2632818-455

Cab, Front, Break-Up [AT]

1

2632748-341

Cab, Front [AG]

2

7670057

NUT SPEED

3

5435110-400

COVER-FRONT CAMO GREEN MET

3

5435110-053

Cover, Front, Med. Yellow (AR)

3

5435166-456

Cover, Front, Shadowgrass [AV]

3

5435166-455

COVER-FR N.B.U.SUB.CAMO

3

5432088-053

COVER,FRONT,MD.YELLOW (A00CH33AG)

3

5435110-341

Cover, Front, Sonic Blue Met (If built after 5/01/03)(AA)(FA)

3

5432088-341

Cover, Front, Sonic Blue (AJ)

3

5432088-400

Cover, Front, Camo Green Met [AC]

4

7517867

SCREW M5X0.8X10 PHPN ZY L/W SE

5

5246872

GUARD SPLASH LH

6

7517386

Vis

7

7670135

NUT-SPEED 3/16

8

7517312

Vis

9

7670156

CLIP-RETAINING BARBED

10

7542122

NUT-NYLOK

11

7556034

Rondelle

12

7555859

WASHER FLAT

13

5246021-067

GUARD-SPLASH RH BLK

14

5434702-070

GUARD-MUD FRONT LH BLK

14

5434703-070

GUARD-MUD FRONT RH BLK

15

7515158

Vis

16

7541925

NUT NYLOK 10-24 Y

17

7555792

Rondelle

19

5811491

FOIL-RH

20

5812326

FOIL-SIDE PANEL RH

21

2632819-455

Panel/Foil, Break-Up, RH [AT]

21

5433853-177

Panel, Side, LH [AH]

21

2632471-177

Panel/Foil, RH [AH]

21

2632471-070

Panel/Foil, RH [AJ]

21

5433853-177

Panel, Side, LH [AH]

21

5435335-455

PANEL-SIDE LH N.B.U. SUB CAMO

21

2632819-456

ASM-PANEL/FOIL RH SHADW GR SUB

21

2632471-382

Panel/Foil, RH [AF]

21

5435335-456

Panel, Side, Shadowgrass, LH [AV]

21

5433853-070

Panel, Side, LH [AJ]

22

7519641

BLT-10-24X3/4 MACHSCR PHL PAN
