Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV Polaris 2004 ATV CLUTCH COVER - A04CH68AC/AF/AH/AJ/AT/AV (4986128612C05) | CLUTCH COVER - A04CH68AC/AF/AH/AJ/AT/AV (4986128612C05)

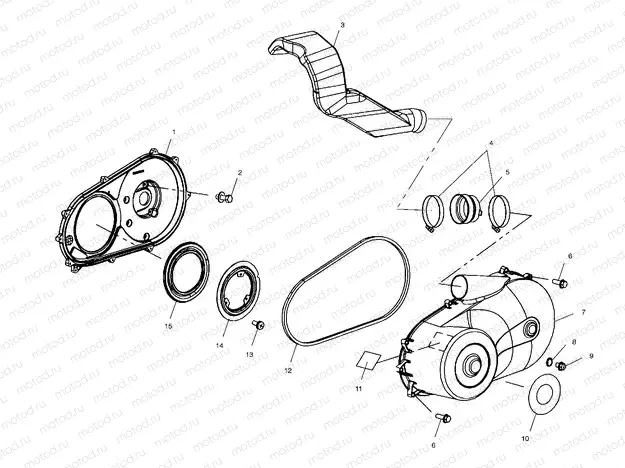

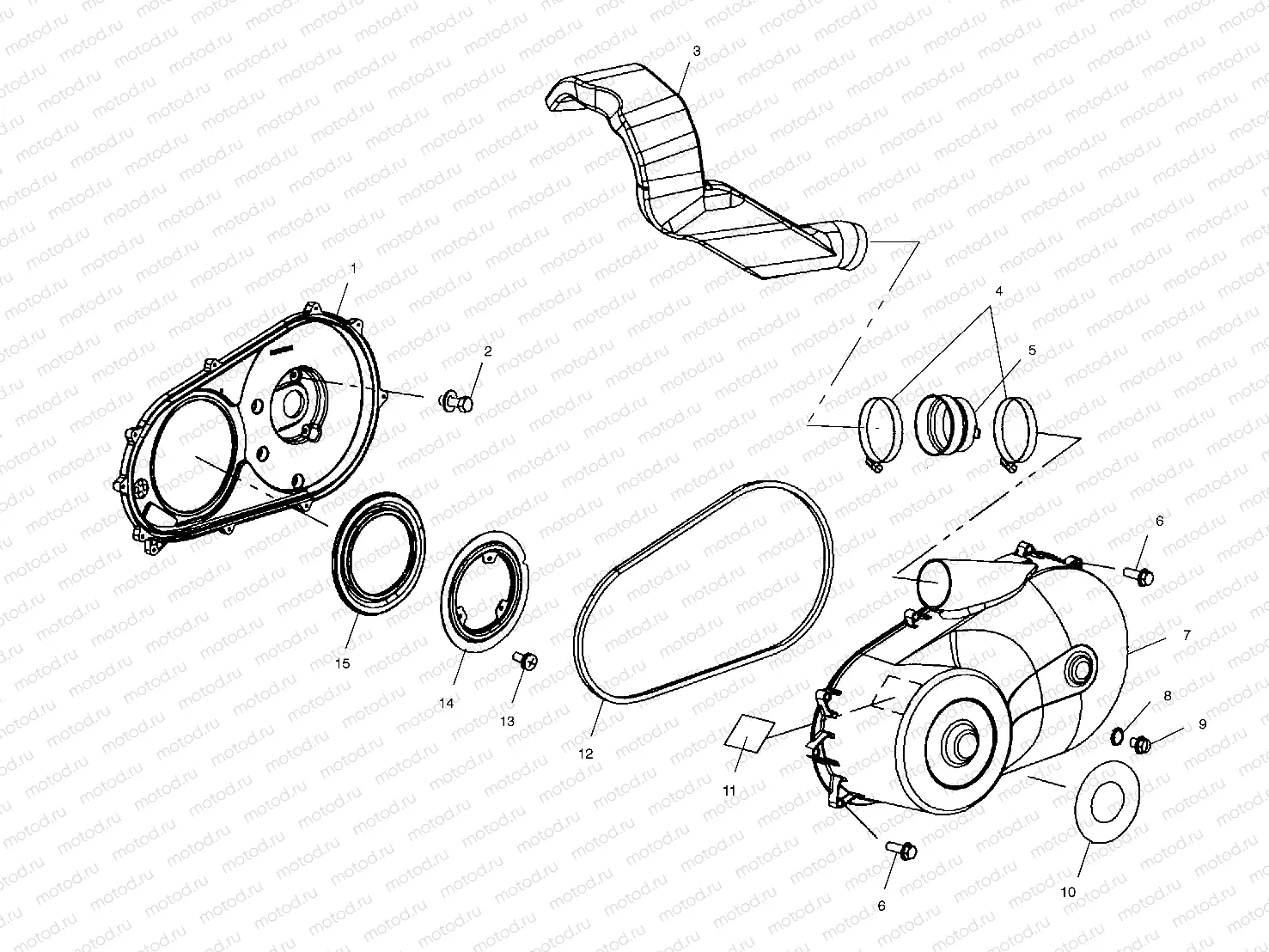

CLUTCH COVER - A04CH68AC/AF/AH/AJ/AT/AV (4986128612C05) | CLUTCH COVER - A04CH68AC/AF/AH/AJ/AT/AV (4986128612C05)

CLUTCH COVER - A04CH68AC/AF/AH/AJ/AT/AV (4986128612C05) | CLUTCH COVER - A04CH68AC/AF/AH/AJ/AT/AV (4986128612C05)

Например: 2201955

1

2201955

KIT-INNER CLUTCH CVR 4235 SVC

1

5434235

COVER-CLUTCH INNER TWIN

2

7517599

ASM. BOLT /WASHER.88

3

5437044

DUCT-CLUTCH OUTLET

4

7080707

CLAMP BAND NARROW

5

5411489

BOOT DUCT HI-FLOW

6

7512094

Vis

7

2633926

ASM-COVER CLUTCH OUTER HV

8

5411432

O RING

9

5434264

PLUG-DRAIN

10

7077666

DECAL"AUTO./EBS",CLUTCH (Nor)(Swed)

11

7078689

Gebruik/Utilisez 7078689

12

5526450

SEAL-OUTER CLUTCH COVER

13

7517867

SCREW M5X0.8X10 PHPN ZY L/W SE

14

5244527

BRKT-RETAINER SEAL PLATED

15

5412635

SEAL-COVER CLUTCH INNER
