Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV Polaris 2004 ATV DRIVE CLUTCH - A04CH68AC/AF/AH/AJ/AT/AV (4987468746C03) | DRIVE CLUTCH - A04CH68AC/AF/AH/AJ/AT/AV (4987468746C03)

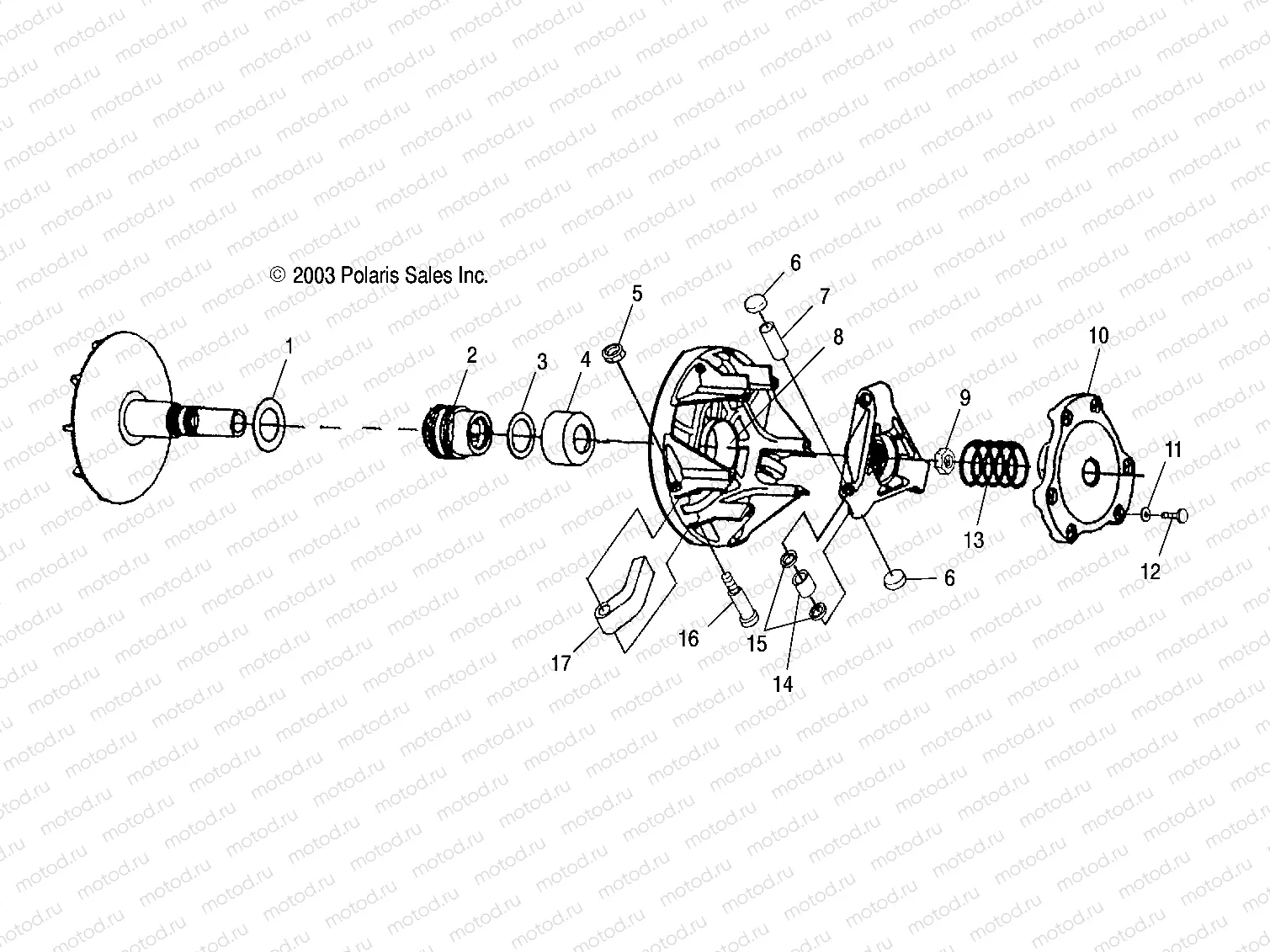

DRIVE CLUTCH - A04CH68AC/AF/AH/AJ/AT/AV (4987468746C03) | DRIVE CLUTCH - A04CH68AC/AF/AH/AJ/AT/AV (4987468746C03)

DRIVE CLUTCH - A04CH68AC/AF/AH/AJ/AT/AV (4987468746C03) | DRIVE CLUTCH - A04CH68AC/AF/AH/AJ/AT/AV (4987468746C03)

Например: 1321971

0

1321971

DRIVE CLUTCH EBS WIDE ASM.

1

7556204

WASHER-1.39X2.24X.030 PTFE

2

1520231

ASM. CLUTCH DRIVE 1-WAY HLRD

3

7556202

WASHER-1.39X1.99X.030 BRASS

4

5131646

Entretoise

5

7541906

NUT FLEXLOC

6

5439254

BUTTON CLUTCH RUBBER BACKED(10

7

5020422

PIN-ROLLER

8

3585712

Roulement

9

2201615

LIMITING NUT KIT EBS

10

3576510

BEARING COVER

11

7552801

Rondelle (Lock)

12

7512163

Vis

13

7041157

SPRING CLUTCH BLU/GRN

14

1321622

ASM. ROLLER AND BUSHING

15

5438247

WASHER-CLUTCH SPIDER ROLLER(10

16

7512266

BOLT SHOULDER

17

5631215

WEIGHT-SHIFT 20-56
