Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC H Cavalcade SUZUKI 92A - SIDE BAG MODEL J

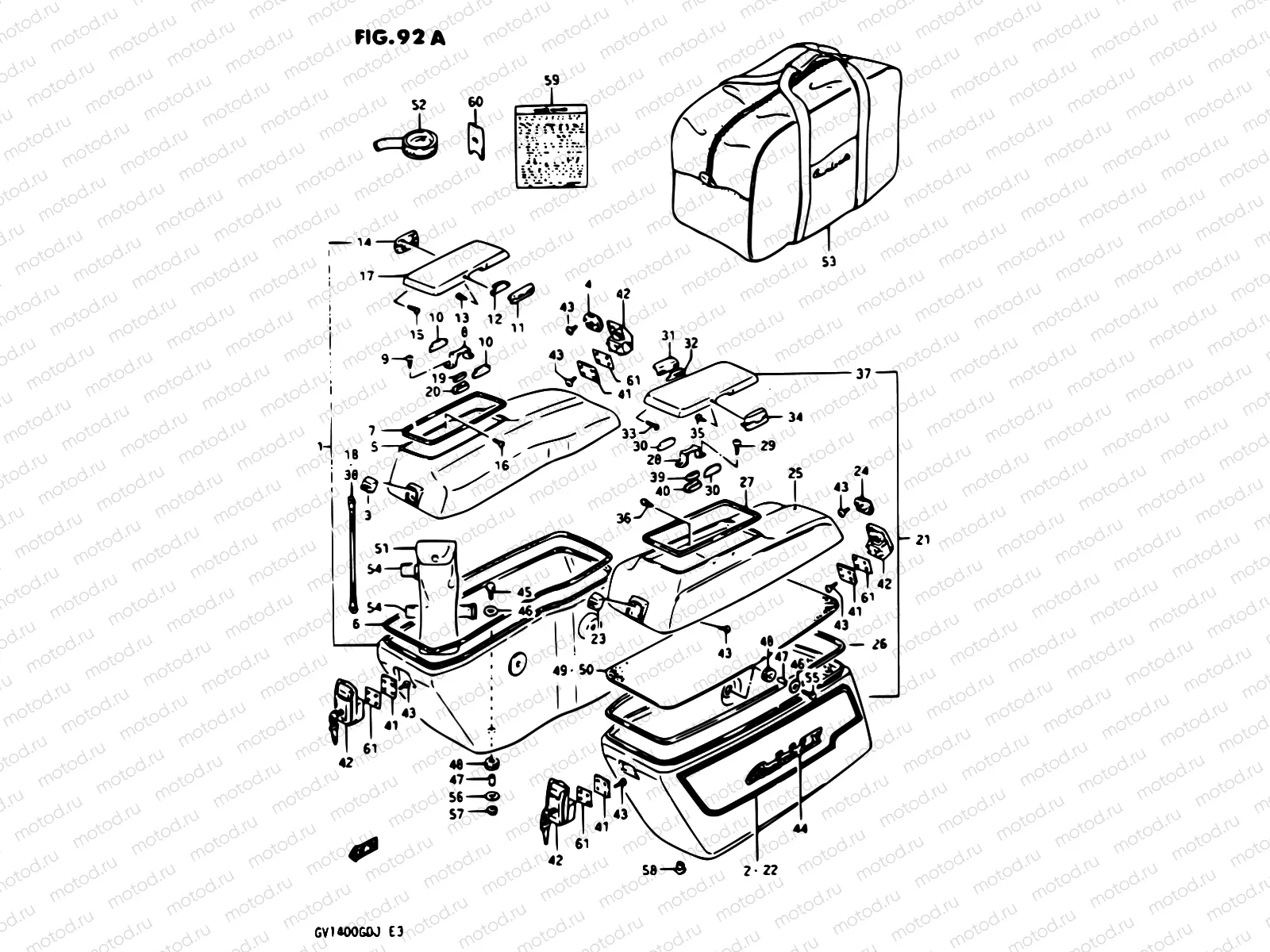

92A - SIDE BAG MODEL J

92A - SIDE BAG MODEL J

Например: 95400-24A70-38G

1

95400-24A70-38G

Bag assy,side,rh (maroon)

1

95400-24A70-20H

Bag assy,side,rh (silver)

2

68260-24A40-9VJ

.tape set,side bag,rh

2

68260-24A40-9VK

.tape set,side bag,rh

3

93316-24A02

.lock plate,trunk lid

4

93316-24A13

.lock plate,sidebag l

5

95440-24A20-20H

.lid,side bag r (silver)

5

95440-24A20-38G

.lid,side bag,r(maroon)

6

95422-24A01

..seal,side bag

7

95446-24A02

SEAL

8

95516-24A00

..holder lid lock

9

03511-03125

..screw,holder

10

95423-24A10

..plate lid lock

11

95447-24A00

..lever,pocket opener

12

95424-24A00

Plate, lid lock

13

02142-0406A

Болт

85 ₽/шт

14

95443-24A00

Hinge,side bag

15

02142-0406A

Болт

85 ₽/шт

16

02142-0412A

Болт

740 ₽/шт

17

95448-24A00

Lid

18

93191-24A00

..band

19

95449-24A00

..magnet

20

95517-24A00

..box,magnet holder

21

95500-24A70-20H

Bag assy,side,lh (silver)

21

95500-24A70-38G

Bag assy,side,lh (maroon)

22

68290-24A40-9VJ

.tape set,side bag,lh

22

68290-24A40-9VK

.tape set,side bag,lh

23

93316-24A02

.lock plate,trunk lid

24

93316-24A13

.lock plate,sidebag l

25

95540-24A20-20H

.lid, side bag l (silver)

25

95540-24A20-38G

.lid,side bag,l(maroon)

26

95422-24A01

..seal,side bag

27

95446-24A02

SEAL

28

95516-24A00

..holder lid lock

29

03511-03125

..screw,holder

30

95423-24A10

..plate lid lock

31

95447-24A00

..lever,pocket opener

32

95424-24A00

Plate, lid lock

33

02142-0406A

Болт

85 ₽/шт

34

95443-24A00

Hinge,side bag

35

02142-0406A

Болт

85 ₽/шт

36

02142-0412A

Болт

740 ₽/шт

37

95448-24A00

Lid

38

93191-24A00

..cord, bag lid

39

95449-24A00

..magnet

40

95517-24A00

..box,magnet holder

41

93124-24A00

Set plate lock side

42

93300-24820

Lock set,side bag

43

02142-0508A

SCREW

85 ₽/шт

44

68261-24A10

Emblem,side bag,r

45

01500-06307

Болт

85 ₽/шт

46

09160-06136

Шайба

102 ₽/шт

47

09180-06055

Entretoise

48

09320-09017

CUSHION

2 540 ₽/шт

49

95416-24A00

Seat,side bag bottom,rh

50

95417-24A00

Seat,side bag bottom,lh

51

09800-00293

Tool assy

52

96200-41330

Gauge assy,air

53

95450-24A01

Bag, side luggage

54

09462-00040

Лента

2 040 ₽/шт

55

09104-06004

Болт

2 030 ₽/шт

56

09160-06121

Шайба

1 520 ₽/шт

57

08319-31067

Гайка

153 ₽/шт

58

09250-08013

CAP(OD:12)

1 410 ₽/шт

59

68613-24A20

Label,trunk warning

60

09813-00038

Spanner

61

93314-24A01

Packing seat,sidebag
