Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC H Cavalcade SUZUKI 59 - HANDLEBAR-CONTROL CABLE GV1400GCG/MODEL H/J

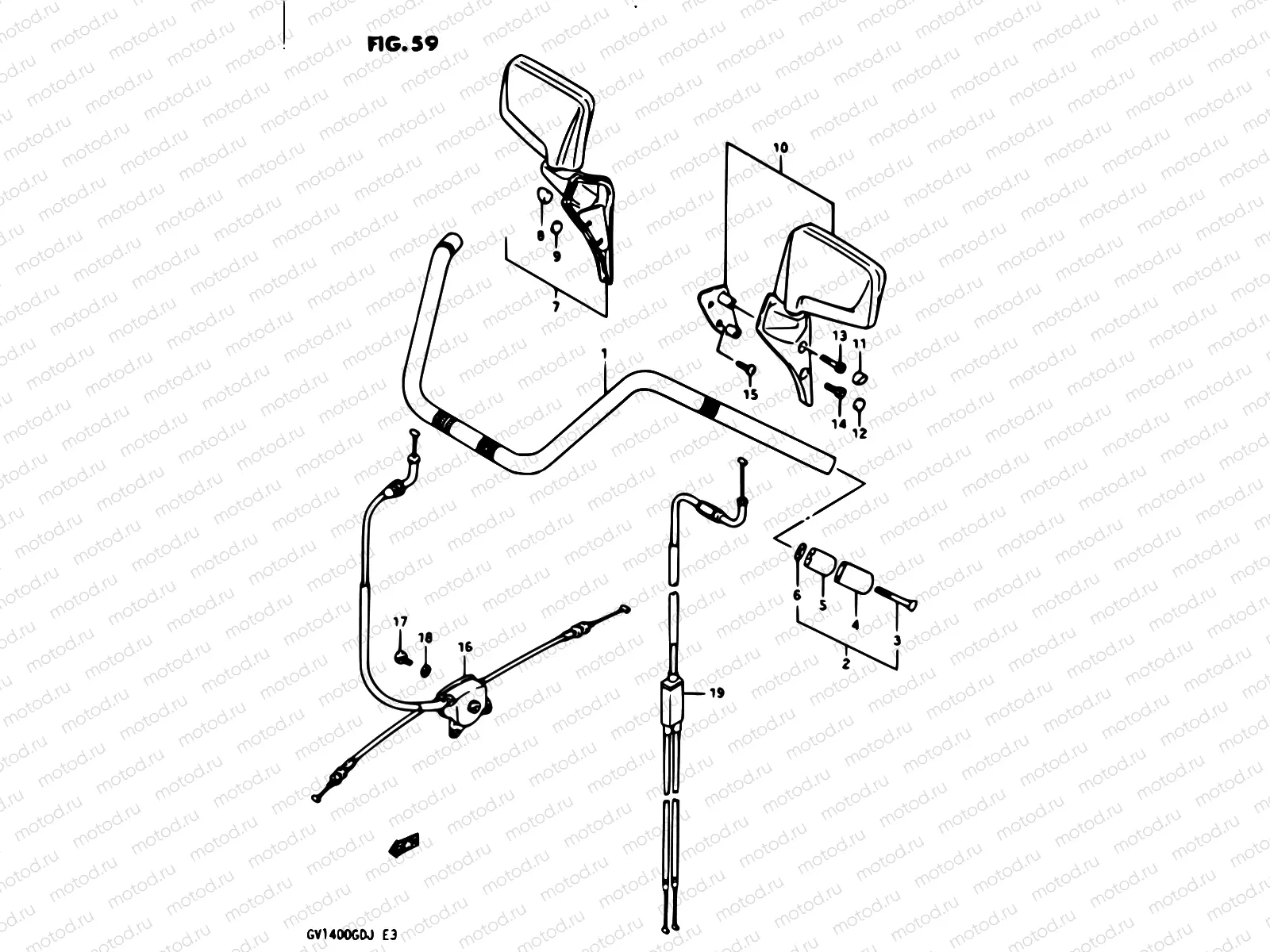

59 - HANDLEBAR-CONTROL CABLE GV1400GCG/MODEL H/J

59 - HANDLEBAR-CONTROL CABLE GV1400GCG/MODEL H/J

Например: 56110-24A51

1

56110-24A51

Handlebar

2

56200-24820

Balancer set,handle

3

09127-06015

.screw

4

56274-24A30

Cap,balancer

5

56271-00A00

BALANCER,HANDLEBAR

1 701 ₽/шт

6

56275-34401

SPACER,BALANCER

278 ₽/шт

7

56500-24A10

Rétroviseur droite

8

56518-24A10

.cap,mirror,upper

9

56519-24A10

.cap mirror lwr rh

10

56600-24A10

Rétroviseur gauche

11

56518-24A10

.cap,mirror,upper

12

56619-24A10

.cap mirror lower lh

13

07130-0635B

Болт катушки зажигания

97 ₽/шт

14

07130-0620B

БОЛТ

97 ₽/шт

15

02142-0620B

Болт

1 060 ₽/шт

16

58300-24A40

Cable assy,thro

17

01500-06127

Болт

81 ₽/шт

18

08321-01067

Шайба, стопорная

81 ₽/шт

19

58410-24A10

Cable,starter
