Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC H Cavalcade SUZUKI 41 - FRONT FOOTREST

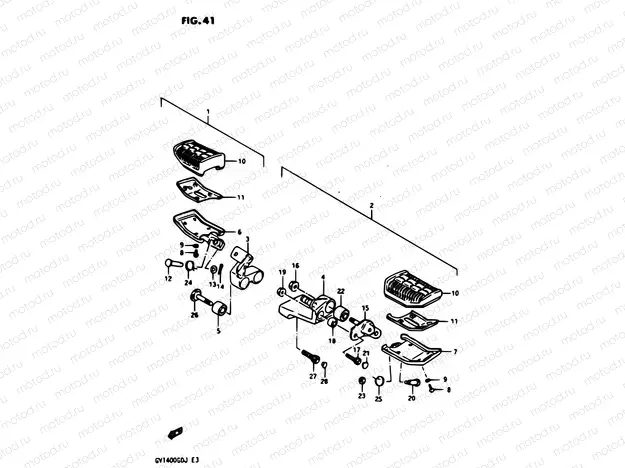

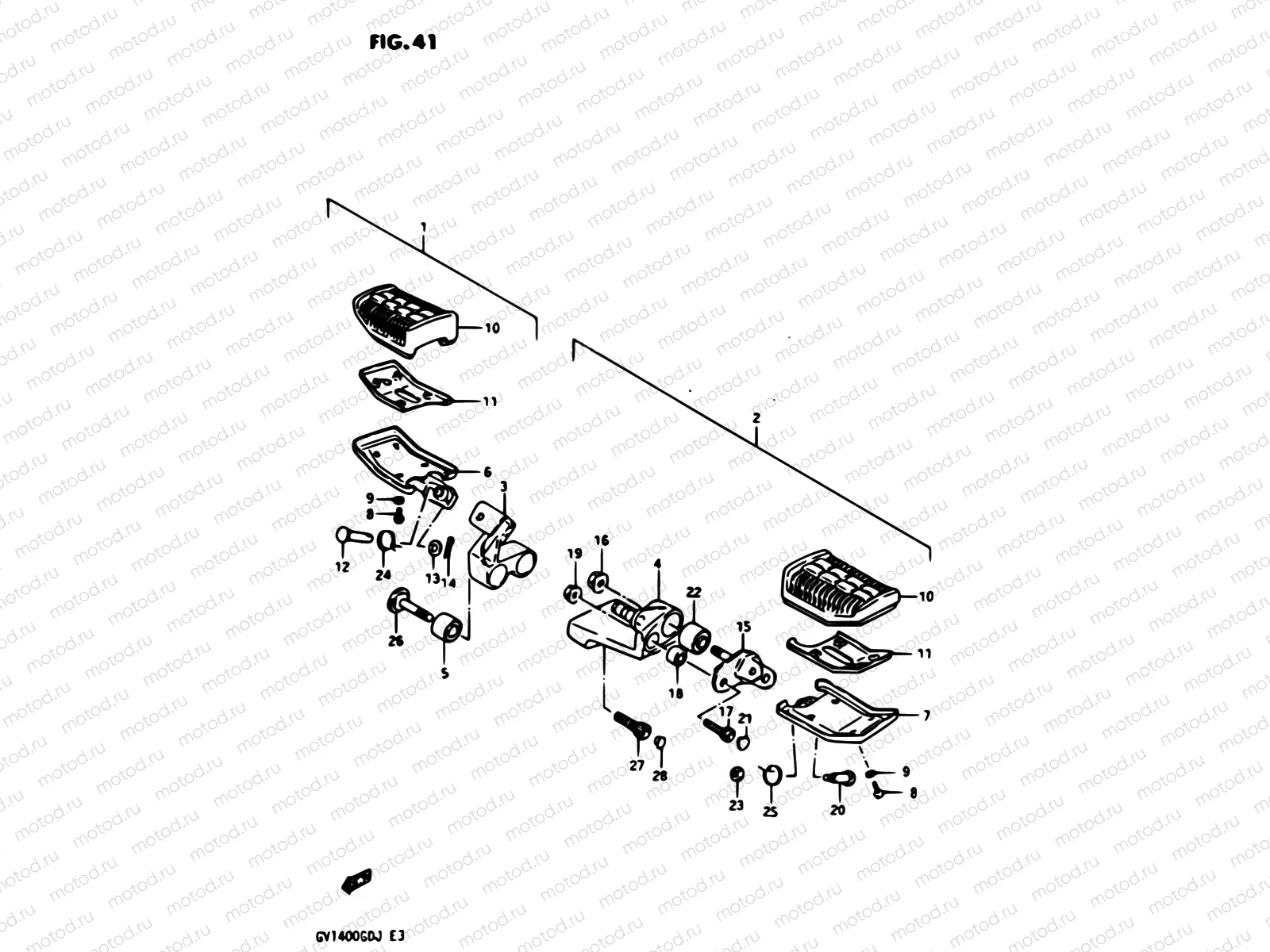

41 - FRONT FOOTREST

41 - FRONT FOOTREST

Например: 43501-24A00

1

43501-24A00

Footrest assy,front, rh

2

43502-24A00

Footrest assy,front, lh

3

43510-24A00

.bar comp,front footr, rh

4

43520-24A00

.bar,fr footrest, lh

5

09319-10040

.bush, rh

6

43530-24A00

.holder comp,front fo, rh

7

43540-24A00

.holder comp,front fo, lh

8

02112-0510B

Болт

85 ₽/шт

9

08321-0105A

Пластина замка

81 ₽/шт

10

43551-24A00

Rubber.fr footr

11

43580-24A01

PLATE,FOOTREST RUBBER

12

09200-08054

.pin, rh

13

08322-01087

Шайба

81 ₽/шт

14

04111-2020A

Штифт

81 ₽/шт

15

43570-24A00

.boss comp,footrest, lh

16

08319-31107

Гайка

210 ₽/шт

17

07130-08307

Болт

146 ₽/шт

18

09319-08025

Втулка

11 460 ₽/шт

19

08319-31087

Гайка

178 ₽/шт

20

09111-06047

.bolt, lh

21

09250-06009

Крышка

194 ₽/шт

22

09319-10040

.bush, lh

23

08319-2106A

Гайка

114 ₽/шт

24

09448-20010

.spring, rh

25

09448-20009

.spring, lh

26

09106-10040

Vis

27

07130-10357

Болт

2 620 ₽/шт

28

43575-34500

CAP

170 ₽/шт
