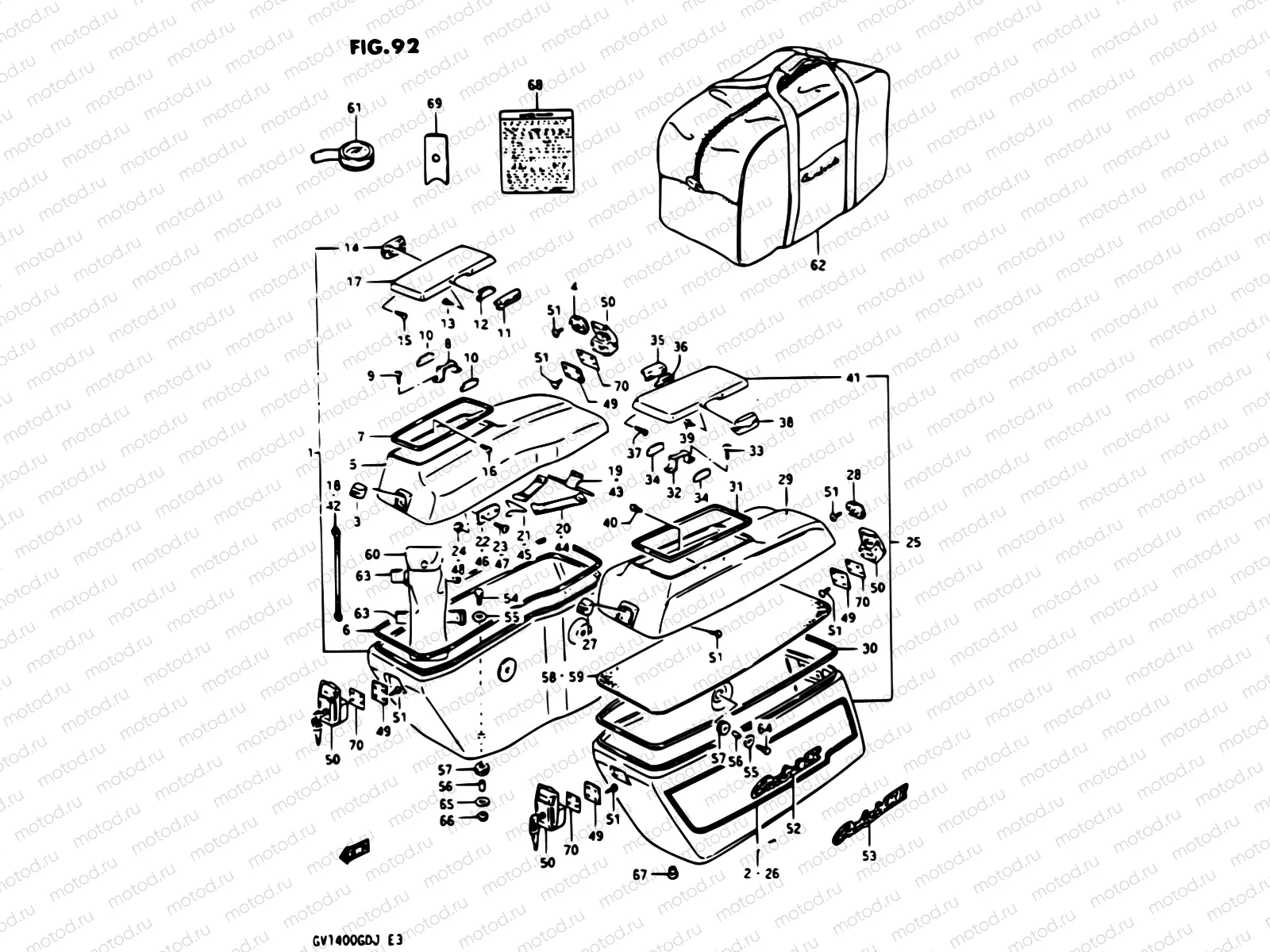

92 - SIDE BAG MODEL H

92 - SIDE BAG MODEL H

Например: 95400-24A61-24D

1

95400-24A61-24D

Side bag assy, rh (maroon)

1

95400-24A61-13Z

Side bag assy,rh (black)

1

95400-24A51-34B

Side bag assy rh (blue)

1

95400-24A51-20H

Side bag assy rh (silver)

2

68260-24A30-9EB

.tape set sidebag str,rh

2

68260-24A30-9EA

.tape set sidebag str,rh

2

68260-24A30-9EC

.tape set sidebag str,rh

2

68260-24A30-9ED

.tape set sidebag str,rh

3

93316-24A02

..lock plate,trunk lid

4

93316-24A13

.lock plate,sidebag l

5

95440-24A10-13Z

.lid,side bag r (black)

5

95440-24A10-24D

.lid, side bag r (maroon)

5

95440-24A20-20H

.lid,side bag r (silver)

5

95440-24A20-34B

.lid,side bag r (blue)

6

95422-24A01

..seal,side bag

7

95446-24A02

SEAL

8

95516-24A00

..holder lid lock

9

03511-03125

..screw,holder

10

95423-24A10

..plate lid lock

11

95447-24A00

..lever,pocket opener

12

95424-24A00

Plate, lid lock

13

02142-0406A

Болт

85 ₽/шт

14

95443-24A00

Hinge,side bag

15

02142-0406A

Болт

85 ₽/шт

16

02142-0412A

Болт

740 ₽/шт

17

95448-24A00

Lid

18

93191-24A00

..cord, bag lid

19

95470-24A00

..plate,luggage band

20

95474-24A00

..band,luggage lid

21

95475-24A00

..hook, luggage lid

22

95473-24A00

..plate, luggage lid

23

02142-0512A

Болт

85 ₽/шт

24

08313-2005A

Гайка

82 ₽/шт

25

95500-24A61-24D

Side bag assy,lh (maroon)

25

95500-24A61-13Z

Side bag assy, l (black)

25

95500-24A51-34B

Side bag assy lh (blue)

25

95500-24A51-20H

Side bag assy, lh (silver)

26

68290-24A30-9EB

.tape set sidebag str,lh

26

68290-24A30-9EA

.tape set sidebag str,lh

26

68290-24A30-9EC

.tape set sidebag str,lh

26

68290-24A30-9ED

.tape set sidebag str,lh

27

93316-24A02

.lock plate,trunk lid

28

93316-24A13

.lock plate,sidebag l

29

95540-24A10-13Z

.lid,side bag l (black)

29

95540-24A10-24D

.lid,side bag l (maroon)

29

95540-24A20-20H

.lid, side bag l (silver)

29

95540-24A20-34B

.lid, side bag l (blue)

30

95422-24A01

..seal,side bag

31

95446-24A02

SEAL

32

95516-24A00

..holder lid lock

33

03511-03125

..screw,holder

34

95423-24A10

..plate lid lock

35

95447-24A00

..lever,pocket opener

36

95424-24A00

Plate, lid lock

37

02142-0406A

Болт

85 ₽/шт

38

95443-24A00

Hinge,side bag

39

02142-0406A

Болт

85 ₽/шт

40

02142-0412A

Болт

740 ₽/шт

41

95448-24A00

Lid

42

93191-24A00

..cord, bag lid

43

95470-24A00

..plate,luggage band

44

95474-24A00

..band,luggage lid

45

95475-24A00

..hook, luggage lid

46

95473-24A00

..plate, luggage lid

47

02142-0512A

Болт

85 ₽/шт

48

08313-2005A

Гайка

82 ₽/шт

49

93124-24A00

Set plate lock side

50

93300-24820

Lock set,side bag

51

02142-0508A

SCREW

85 ₽/шт

52

68261-24A10

Emblem,side bag,r

53

68261-24A20

Emblem,side bag

54

01500-06307

Болт

85 ₽/шт

55

09160-06136

Шайба

102 ₽/шт

56

09180-06055

Entretoise

57

09320-09017

CUSHION

2 540 ₽/шт

58

95416-24A00

Seat,side bag bottom,rh

59

95417-24A00

Seat,side bag bottom,lh

60

09800-00293

Tool assy

61

96200-41330

Gauge assy,air

62

95450-24A01

Bag, side luggage

63

09462-00040

Лента

2 040 ₽/шт

64

09104-06004

Болт

2 030 ₽/шт

65

09160-06121

Шайба

1 520 ₽/шт

66

08319-31067

Гайка

153 ₽/шт

67

09250-08013

CAP(OD:12)

1 410 ₽/шт

68

68613-24A20

Label,trunk warning

69

09813-00038

Spanner

70

93314-24A01

Packing seat,sidebag
