Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC H Cavalcade SUZUKI 3 - CYLINDER HEAD REAR

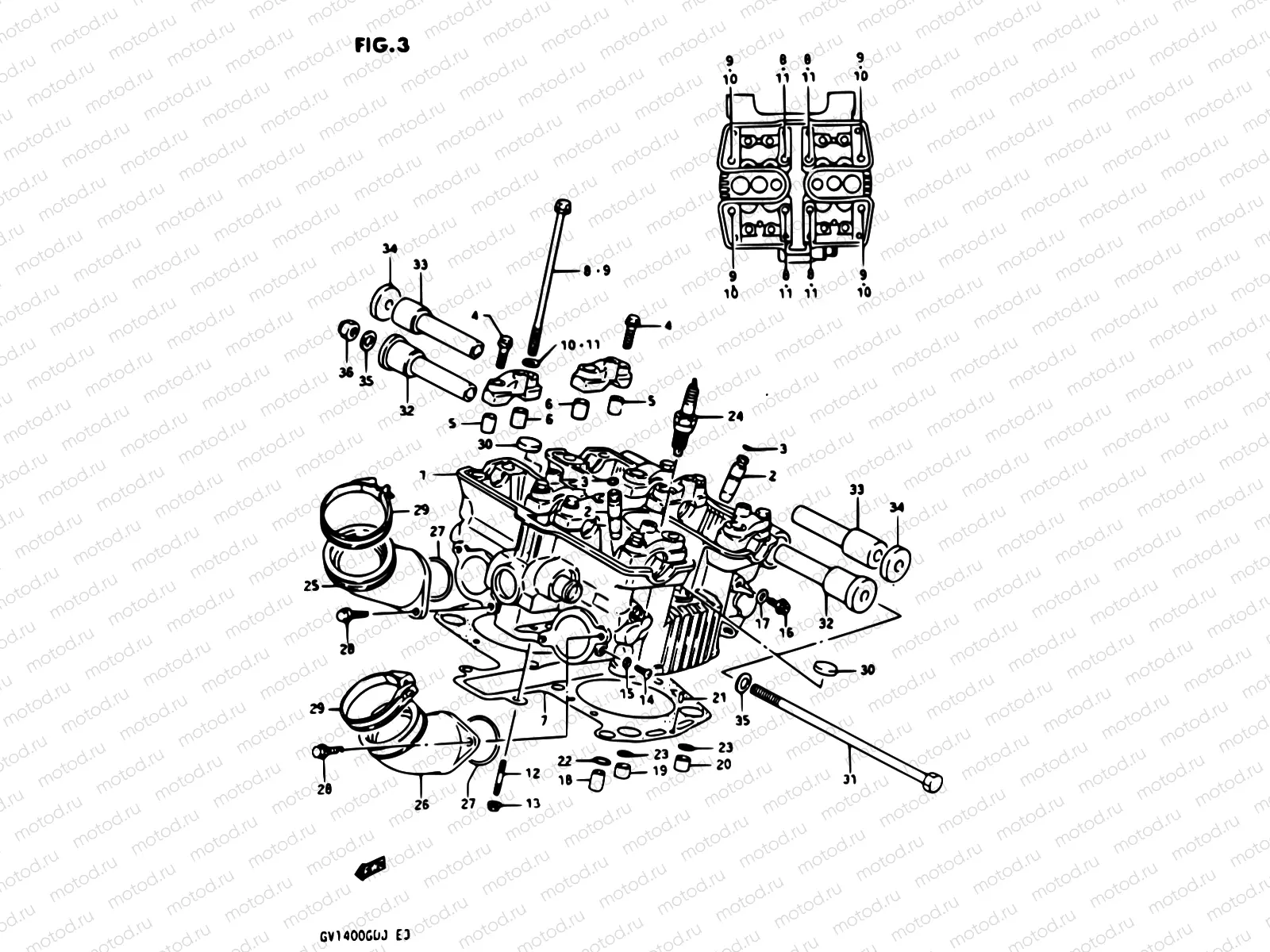

3 - CYLINDER HEAD REAR

3 - CYLINDER HEAD REAR

Например: 11103-24A10

1

11103-24A10

Cylinder head

1

11103-24A00

Head,cylinder,rear

2

11115-24A71

.guide,valve

3

09381-10004

КЛИПС

113 ₽/шт

4

09103-08136

.bolt

5

09206-11017

PIN(8.4X11X20)

4 380 ₽/шт

6

09206-13004

ВТУЛКА

1 370 ₽/шт

7

11142-24A00

Gasket, head, rear

8

09103-10104

Bolt cylinder head (10x155)

9

09103-10105

Bolt cylinder head (10x165)

10

09160-11005

Washer

11

09160-10142

Шайба

1 370 ₽/шт

12

01421-06257

Болт заклепка

1 520 ₽/шт

13

08319-31067

Гайка

153 ₽/шт

14

02112-0508A

Винт №1

85 ₽/шт

15

09168-05010

Прокладка

980 ₽/шт

16

07120-0612B

БОЛТ

184 ₽/шт

17

09168-06018

Прокладка

119 ₽/шт

18

09206-09003

PIN(6.4X9X20)

3 520 ₽/шт

19

09206-13013

Pipe (no.2)

20

09206-13014

Pin

21

04221-04109

PIN

1 020 ₽/шт

22

09280-09005

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ (D:1.9,ID:8.6)

170 ₽/шт

23

09280-12009

Кольцо уплотнительное

221 ₽/шт

24

09482-00343-111

Spark plug (nd, x22epr-gl)

24

09482-00381

Spark plug (ngk, pjr7a)

24

09482-00382

Spark plug (ngk,pjr8a)

24

09482-00380

Spark plug (ngk, pjr6a)

24

09482-00345-111

Spark plug (nd, x24epr-gl)

24

09482-00344-111

Spark plug (nd, x20epr-gl)

25

13120-24A12

Pipe, intake

25

13120-24A02

Pipe,intake fr rh

26

13110-24A10

(ca)pipe,intake

26

13110-24A02

Pipe,intake fr lh

27

09280-40020

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

533 ₽/шт

28

01550-06207

БОЛТ

85 ₽/шт

29

09402-52501

CLAMP

8 450 ₽/шт

30

09242-22001

Cap, water jacket plug

31

09104-10023

Bolt (10x240)

33

11621-24A10

Spacer engine mtg no

34

11622-24A10

Spacer engine mtg no

35

08322-0110B

Шайба

85 ₽/шт

36

09159-10052

Гайка

5 320 ₽/шт
