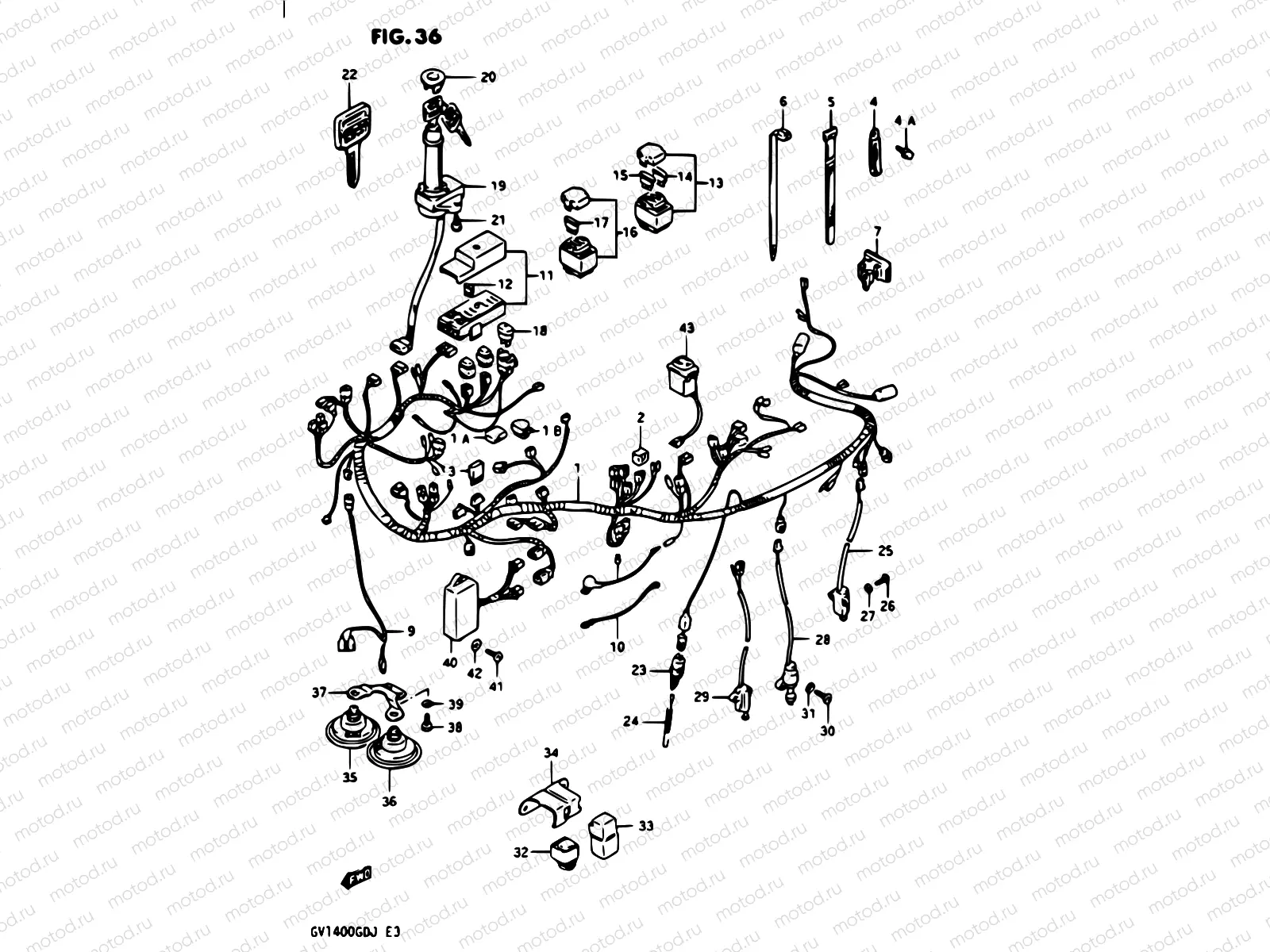

36 - WIRING HARNESS

36 - WIRING HARNESS

Например: 36610-24A10

1

36610-24A10

Harness wiring

1

36610-24A30

Harness wiring

1

36610-24A02

Harness wiring

1

36610-24A21

Harness wiring

1

36610-24A51

Harness wiring

1

33624-38310

CAP,BATTERY PLUS TERMINAL

364 ₽/шт

1

33624-49401

CAP,STARTER RELAY TERMINAL

360 ₽/шт

2

32800-16A00

Диод

1 697 ₽/шт

3

36611-38A10

DIODE

1 024 ₽/шт

4

09404-06036

Clamp(L:80)

194 ₽/шт

4

09404-08420

Струбцина L:137

221 ₽/шт

4

09404-06039

Clamp(L:65)

194 ₽/шт

4

01550-08127

БОЛТ

1 640 ₽/шт

5

09407-12402

Струбцина

211 ₽/шт

6

09407-25401

Хомут

221 ₽/шт

6

09407-18402

Струбцина (L:165)

211 ₽/шт

6

09407-14403

КЛЕММА

221 ₽/шт

7

09408-00098

Clamp, harness

8

36851-38401

Wire,temp gauge lead

9

36852-24A00

Wire, horn lead

10

36851-05A30

Lead wire

11

36740-24A00

Box assy,fuse

12

09481-10010-025

Fusible (10A)

13

36740-24A00

Box assy,fuse

14

09481-03101

FUSE(3A)

980 ₽/шт

15

09481-10005-025

Fusible (5A)

16

36740-24A21

Box assy fuse

17

09481-10010-025

Fusible (10A)

18

36750-05A00

BREAKER ASSY,CIRCUT

3 754 ₽/шт

19

37100-24A10

Switch,ignition

20

37155-03A70

CAP,IGNITION SWITCH

567 ₽/шт

21

07130-0616B

БОЛТ

97 ₽/шт

22

37146-24A10

Key,blank(type d)

22

37146-24A00

Key,blank(type c)

22

37146-24A20

Key,blank(type e)

22

37146-24A30

Key,blank(type f)

23

37740-45D00

SWITCH ASSY,STOP LAMP

1 224 ₽/шт

24

09443-06063

Spring

25

37840-24A21

Switch assy,side sta

26

02112-0620A

Болт

85 ₽/шт

27

08321-0106A

Шайба

81 ₽/шт

29

37840-44X51

Switch Assy,side Stand

6 334 ₽/шт

30

02112-0620A

Болт

85 ₽/шт

31

08321-0106A

Шайба

81 ₽/шт

32

38740-24A00

RELAY ASSY

3 167 ₽/шт

33

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

34

38741-24A00

Bracket side stand r

35

38501-24A10

Horn,high tone

35

38501-05A01

Horn high pitched

36

38502-24A10

Horn,low tone

36

38502-24A00

Horn low pitch

37

38516-24A00

Bracket, horn

38

01500-0625B

Болт

1 330 ₽/шт

39

08321-0106A

Шайба

81 ₽/шт

40

38860-24A00

Relay assy,lamp outa

41

02112-0616A

Болт

81 ₽/шт

42

08322-0106A

Шайба

81 ₽/шт

43

37970-24A01

Switch assy auto lev
