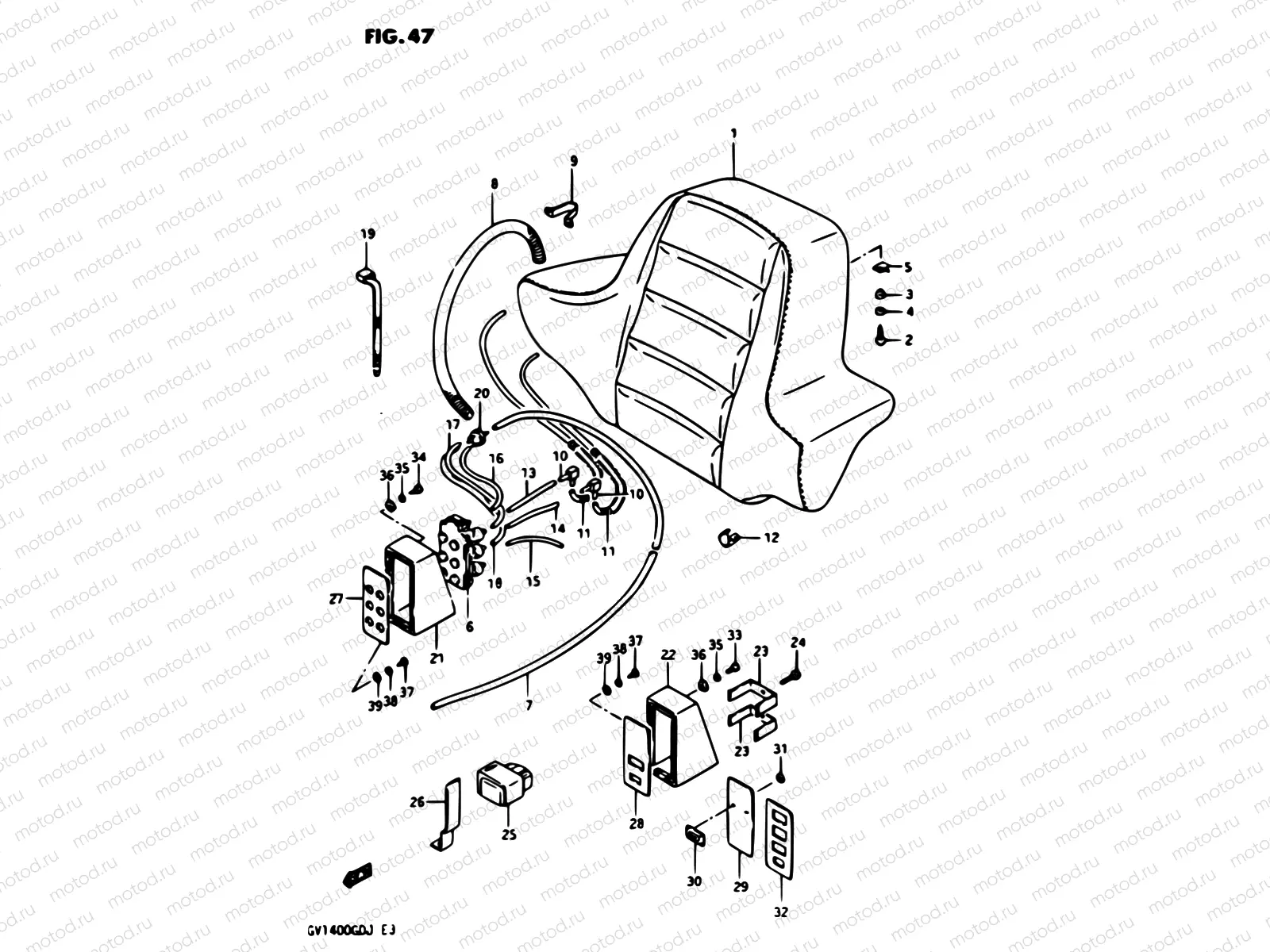

47 - TRAVEL TRUNK PAD GV1400GDG/GTG/GDH/GDJ

47 - TRAVEL TRUNK PAD GV1400GDG/GTG/GDH/GDJ

Например: 45350-24A03-7VD

1

45350-24A03-7VD

Pad assy,travel turn (black)

1

45350-24A03-4FT

Pad, travel trunk (black)

1

45350-24A13-4FT

Pad assy,travel turn (black)

2

03141-05205

Screw l:20

3

45358-24A10

Seal washer,pad assy

4

09160-06052

Шайба

136 ₽/шт

5

09148-05019

Гайка

102 ₽/шт

6

45400-24A01

Valve assy,seat

7

45420-24A00

Hose assy air seat no.1

8

45427-24A02

Protector,pad assy t

9

45428-24A00

Holder,protector pad

10

09367-04005

Болт соединяющий

179 ₽/шт

11

09440-07052

Spring

12

09403-20301

Collier

13

45422-24A10

Hose,outlet,no.1

14

45422-24A20

Hose,outlet,no.2

15

45422-24A30

Hose,outlet,no 3

16

45423-24A10

Hose,inlet, no 1

17

45423-24A20

Hose,inlet, no 2

18

45423-24A30

Hose, inlet, no 3

19

09407-18402

Струбцина (L:165)

211 ₽/шт

20

09367-04004

way

21

45440-24A01-4FT

Pad assy travel trun, rh (black)

21

45450-24A01-4FS

Pad assy travel trun, rh (brown)

22

45450-24A01-4FT

Pad assy travel trun, lh (black)

22

45450-24A01-4FS

Pad assy travel trun, lh (brown)

23

45444-24A00

Plate,vlv assy fitng

24

09125-04017

Screw

25

45470-24A00

Relay assy,seat

26

45430-24A00

Bracket,seat relay

27

45480-24A00

Panel comp,valve asy

28

45480-24A10

Panel comp,tuner asy

29

45480-24A20

Panel comp,pad assy

30

68221-24A00

Emblem

31

09148-03002

NUT

129 ₽/шт

32

45480-24A90

Panel,tuner assy,no.

33

01104-05165

Bolt 5x16

34

01104-05125

Vis

35

08321-0105A

Пластина замка

81 ₽/шт

36

09169-05010

Шайба

1 370 ₽/шт

37

02112-0412A

Болт

85 ₽/шт

38

08321-0104A

Пластина замка

82 ₽/шт

39

08322-01047

Шайба

85 ₽/шт
