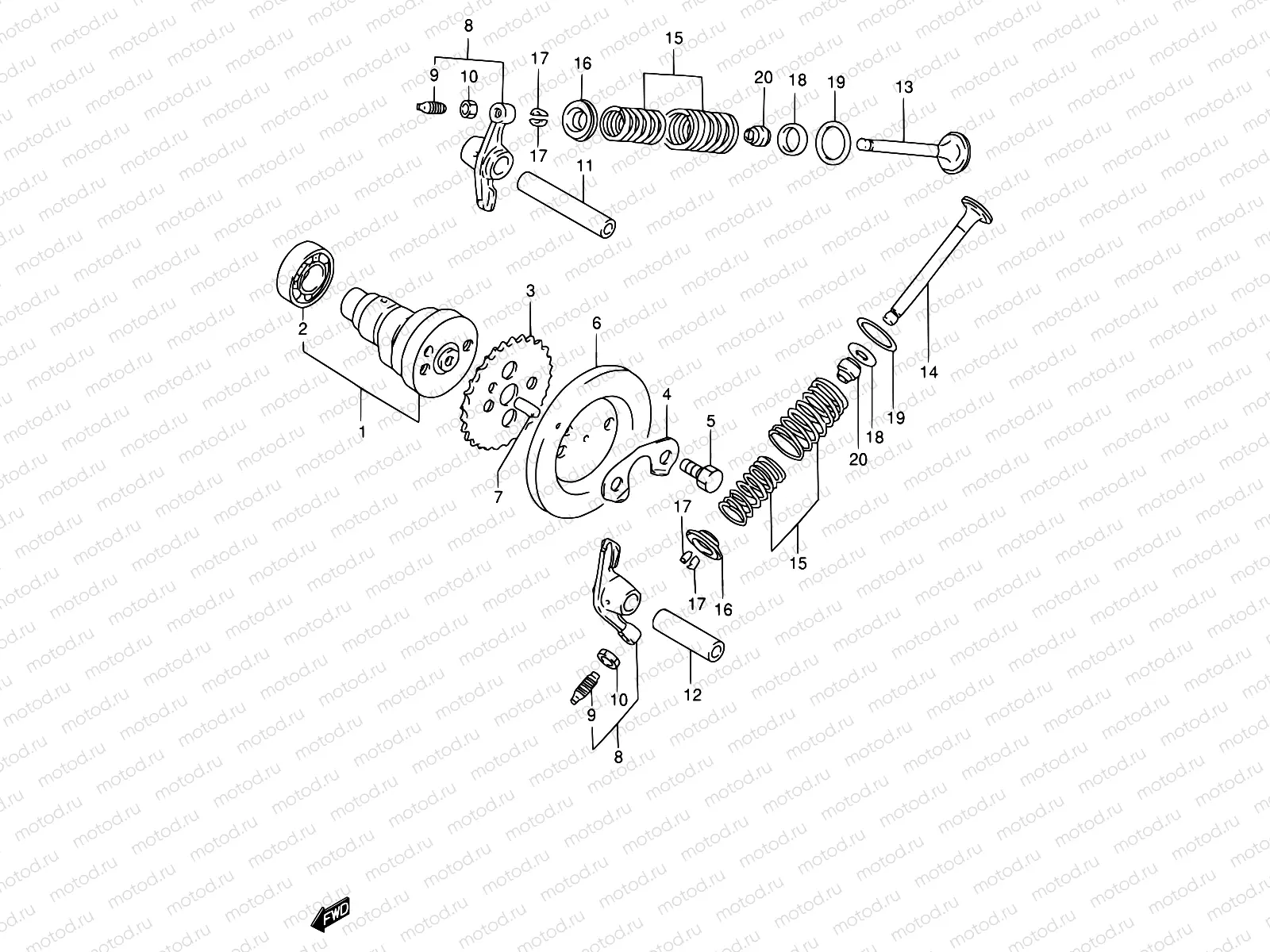

8 - CAM SHAFT/VALVE (F.NO.100365%)

8 - CAM SHAFT/VALVE (F.NO.100365%)
Например: 12710-30A01
1
12710-30A01
Camshaft
2
08143-60027
BEARING
1 396 ₽/шт
3
12741-30A03
Sprocket, cam shaft
4
12747-30A01
WASHER,SPROCKET
293 ₽/шт
4
12747-30D00
WASHER,SPROCKET
293 ₽/шт
5
09111-06053
BOLT(6X16)
2 310 ₽/шт
6
12755-09D00
Flywheel, cam shaft
7
09261-05009
PIN(5X12.9)
900 ₽/шт
8
12840-30A11
RM,VALVE ROCKER
3 069 ₽/шт
9
12842-49201
Болт
308 ₽/шт
10
12843-27A00
Гайка
162 ₽/шт
11
12861-09D00
SHAFT,VALVE ROCKER ARM INTAKE
997 ₽/шт
12
12871-30A00
SHAFT,VALVE ROCKER ARM EXHAUST
989 ₽/шт
13
12911-30A02
Valve, intake
14
12912-30A01
Valve, exhaust
15
12920-30A01
SPRING SET,VALVE
1 118 ₽/шт
16
12931-09420
Шайба упорная
422 ₽/шт
17
12932-27A00
Сухарь
162 ₽/шт
18
12933-09400
Пружина
301 ₽/шт
19
12934-09400
Пружина
227 ₽/шт
20
09289-05008
Сальник
631 ₽/шт
