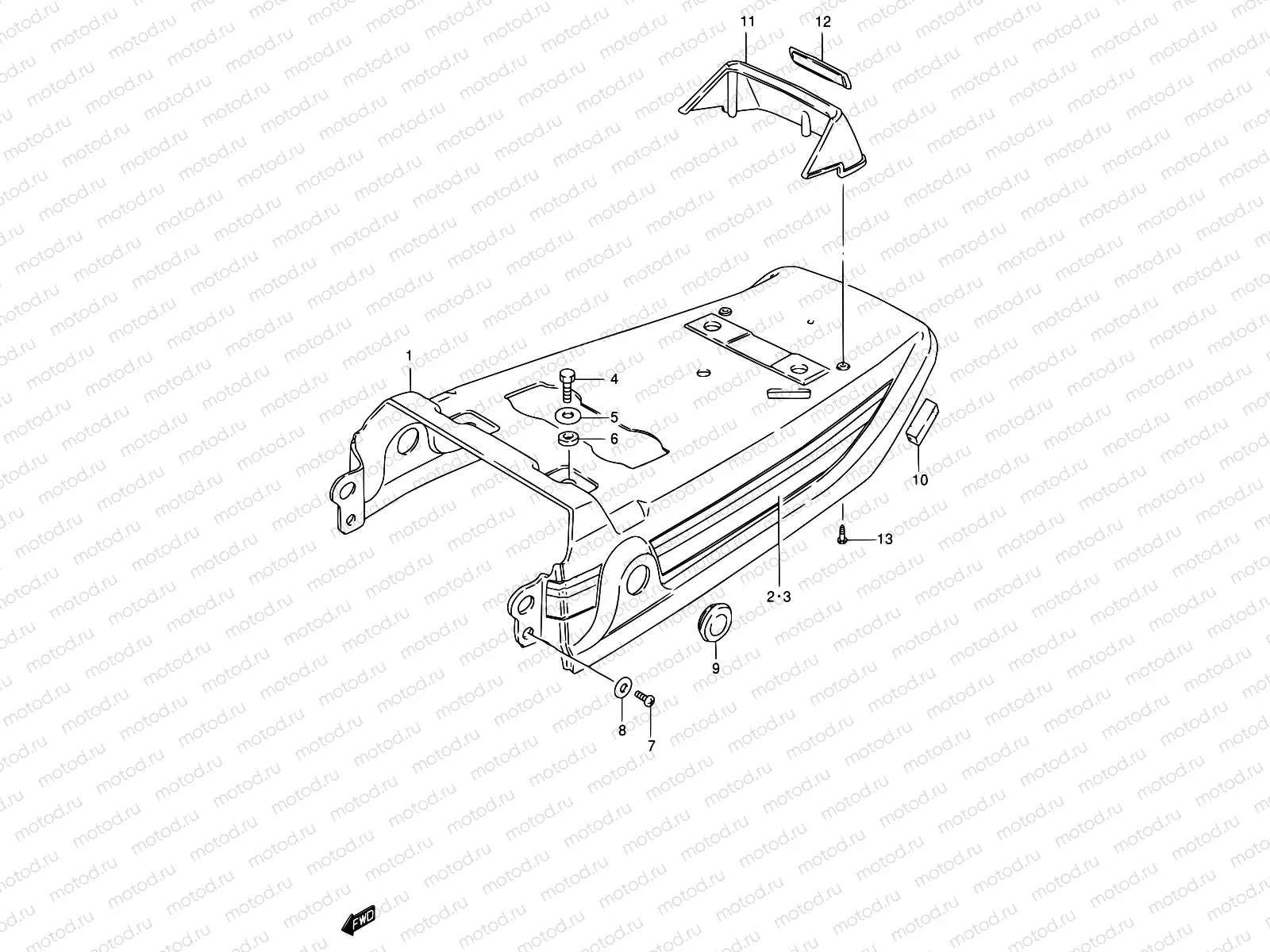

45A - SEAT TAIL COVER (MODEL V/X/Y)

45A - SEAT TAIL COVER (MODEL V/X/Y)
Например: 45511-30A30-Y98
1
45511-30A30-Y98
Cover, seat tail (green)
1
45511-30A30-1UY
Cover, seat tail (blue)
1
45511-30A30-20F
Cover, seat tail (maroon)
2
68160-30A00-84G
Tape set, tail cover rh
3
68240-30A00-84G
Tape set, tail cover lh
4
09116-08020
Bolt, upper (8x20)
6
09180-08100
SPACER(8.2X14X4.5)
2 460 ₽/шт
7
02142-0612B
Винт
81 ₽/шт
8
09169-06041
Шайба
85 ₽/шт
9
09250-24004
Grommet
10
45528-30A00
Damper (rear)
11
45571-30A00-Y98
Extention, tail cover (green)
11
45571-30A00-1UY
Extention, tail cover (blue)
11
45571-30A00-20F
Extention, tail cover (maroon)
12
68234-39110
Emblem
13
03511-0412A
Болт
81 ₽/шт
