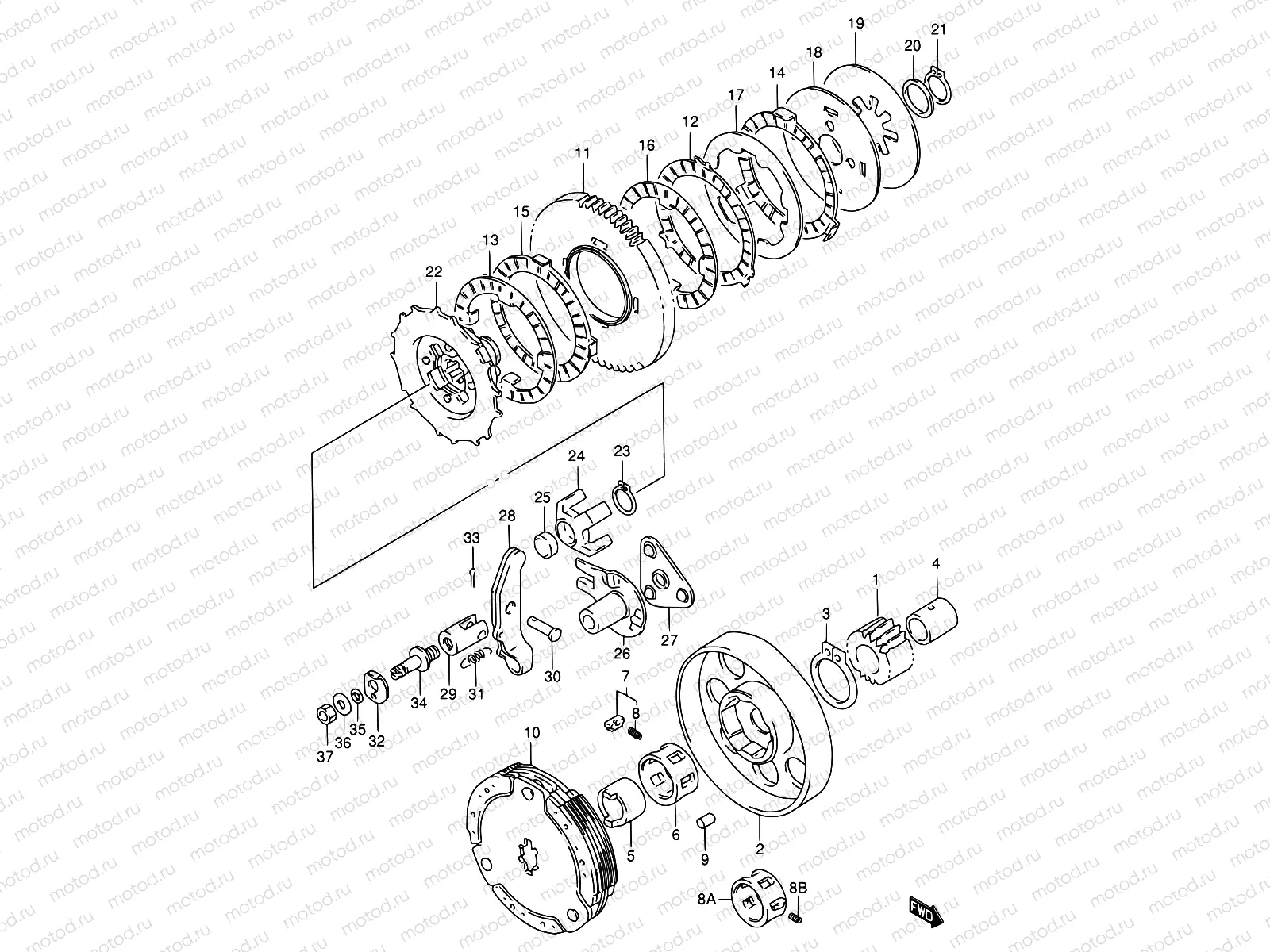

14A - CLUTCH (MODEL S/V/X/Y)

14A - CLUTCH (MODEL S/V/X/Y)
Например: 21111-30A00
1
21111-30A00
Gear, primary drive (nt:17)
2
21102-30A10
HOUSING,CLUTCH
11 183 ₽/шт
3
08331-31346
Circlip
4
09180-16035
Spacer (16x21x23)
5
21631-02A04
RACE,ONE WAY CLUTCH
1 744 ₽/шт
8
21652-30D01
RETAINER,ONE WAY CLUTCH
3 206 ₽/шт
8
09440-02003
Пружина
1 020 ₽/шт
9
09261-07006
ROLLER(7X10)
1 090 ₽/шт
10
21501-30A00
Clutch assy, shoe
11
21210-09410
GEAR. PRIMARY DRIVEN
12
21441-09D02
Пластина
1 302 ₽/шт
13
21441-30A01
PLATE,CLUTCH DRIVE
1 286 ₽/шт
14
21441-30A22
PLATE,CLUTCH DRIVE NO.4
1 724 ₽/шт
15
21451-30A02
PLATE,CLUTCH DRIVEN NO.1
1 147 ₽/шт
16
21451-30A12
PLATE,CLUTCH DRIVE NO.1
1 427 ₽/шт
17
21451-30A20
PLATE,CLUTCH DRIVEN(T:1.6)
813 ₽/шт
18
21461-30A00
PLATE,CLUTCH PRESSURE
774 ₽/шт
19
09164-22009
Пружина
9 310 ₽/шт
20
09180-22033
SPACER(22X28X4)
2 820 ₽/шт
21
08331-31179
Стопорное кольцо
102 ₽/шт
22
21410-35502
HUB,CLUTCH SLEEVE
6 217 ₽/шт
23
08331-3121A
Circlip
24
23121-09D00
PIECE,CLUTCH PUSH
2 111 ₽/шт
25
09266-16002
BEARING(16X6)
1 267 ₽/шт
26
23230-30A01
GUIDE,RELEASE BALL OUTER
1 337 ₽/шт
27
23250-35402
BALL,CLUTCH RELEASE
1 337 ₽/шт
28
23221-09405
ARM,CLUTCH RELEASE
1 204 ₽/шт
29
23222-09401
BOSS,CLUTCH RELEASE ARM
1 024 ₽/шт
30
09200-07005
PIN
1 720 ₽/шт
31
09443-06053
Пружина
1 170 ₽/шт
32
09169-06046
Шайба
900 ₽/шт
33
04111-1620A
PIN
740 ₽/шт
34
23223-09404
BOLT,CLUTCH RELEASE ADJUST
395 ₽/шт
35
09280-06005
Кольцо уплотнительное
129 ₽/шт
36
09160-06123
Шайба
1 370 ₽/шт
37
09140-06023
Гайка
1 210 ₽/шт
