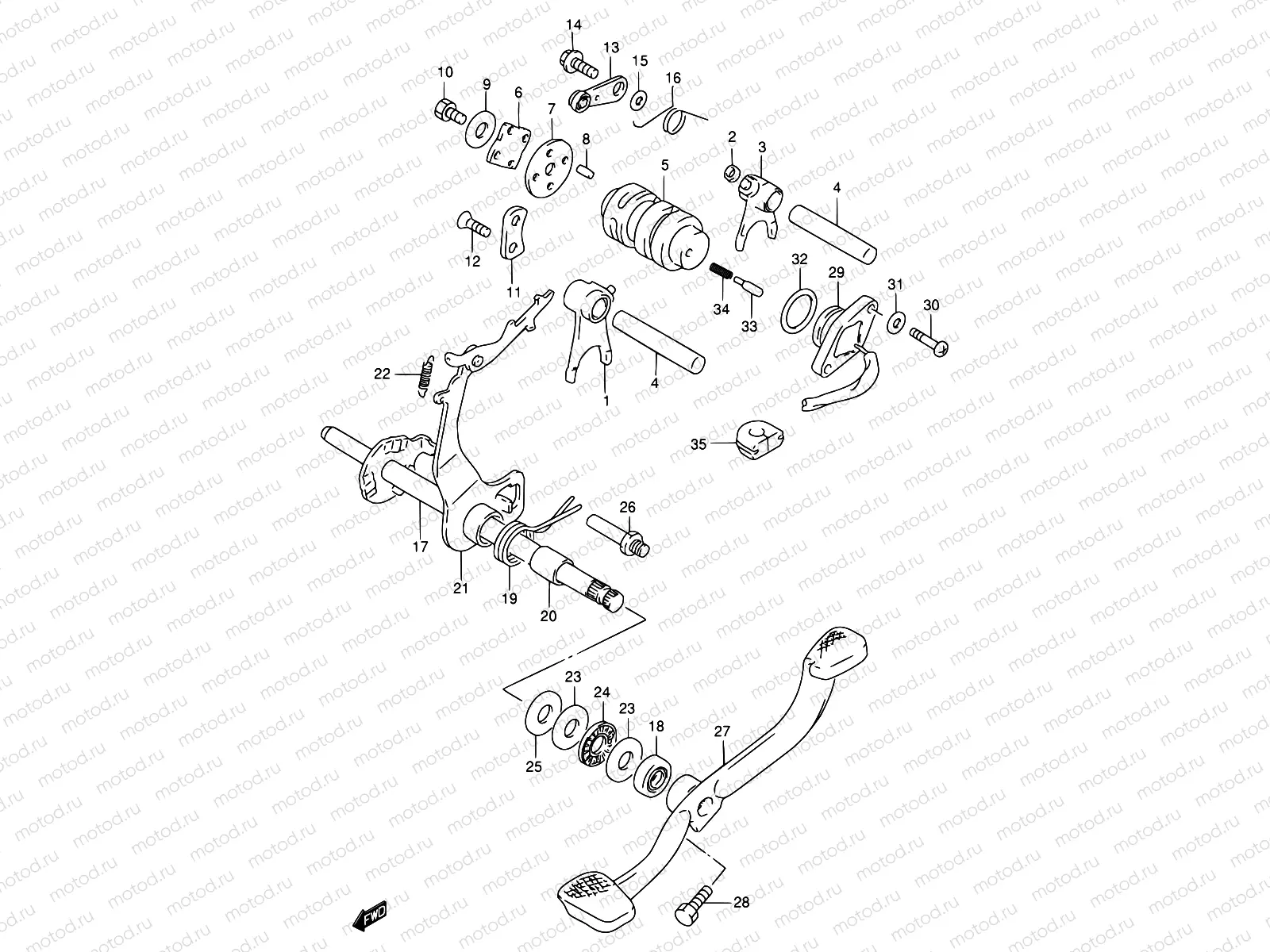

16A - GEAR SHIFTING (MODEL S/V/X/Y)

16A - GEAR SHIFTING (MODEL S/V/X/Y)
Например: 25210-30A10
1
25210-30A10
Fork, gear shift no.1
2
09180-06086
SPACER(6X9.8X6)
1 410 ₽/шт
3
25220-30A10
FORK,GEAR SHIFT NO.2
4 457 ₽/шт
4
25421-35410
SHAFT,GEAR SHIFT FORK NO.2
1 290 ₽/шт
5
25311-30A11
Cam, gear shift
6
25381-30A00
PLATE,SHIFT CAM STOPPER
610 ₽/шт
7
25382-35401
Стопор
125 ₽/шт
8
09261-04002
ROLLER(4X13.8)
97 ₽/шт
9
08211-06221
Шайба
1 170 ₽/шт
10
01500-0616B
Болт
1 330 ₽/шт
11
25341-09400
RETAINER,SHIFT CAM
618 ₽/шт
12
02122-0616B
Болт
85 ₽/шт
13
25350-09D00
STOPPER,SHIFT CAM
3 363 ₽/шт
14
09111-06041
BOLT(6X14.3)
1 520 ₽/шт
15
08211-06121
Шайба упорная
1 170 ₽/шт
16
25355-09400
SPRING,SHIFT CAM STOPPER
301 ₽/шт
17
25510-30A21
Shaft, gear shift
18
09285-12006
САЛЬНИК ТРАНСМИССИИ, РЕЗИНА
275 ₽/шт
19
09444-25002
Пружина
3 750 ₽/шт
20
09180-12036
Шестерня вала
7 080 ₽/шт
21
25520-09424
Arm, gear shifting
22
09443-05019
Пружина
2 620 ₽/шт
23
08211-12261
WASHER
1 250 ₽/шт
24
09263-12019
BEARING(12X26X2)
372 ₽/шт
25
08211-20264
Шайба упорная
1 410 ₽/шт
26
25671-31C00
Stopper, gear shift arm
27
25610-30A02
Lever, gear shifting
28
01500-0620A
Болт
81 ₽/шт
29
37720-30A00
Switch assy, gear position
30
02112-0516B
Болт
1 090 ₽/шт
31
08322-0105B
Шайба
81 ₽/шт
32
09280-21008
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
210 ₽/шт
33
09209-05011
ШТИФТ
178 ₽/шт
34
09440-04010
ПРУЖИНА
113 ₽/шт
35
31482-47000
GROMMET,STARTER CABLE
172 ₽/шт
