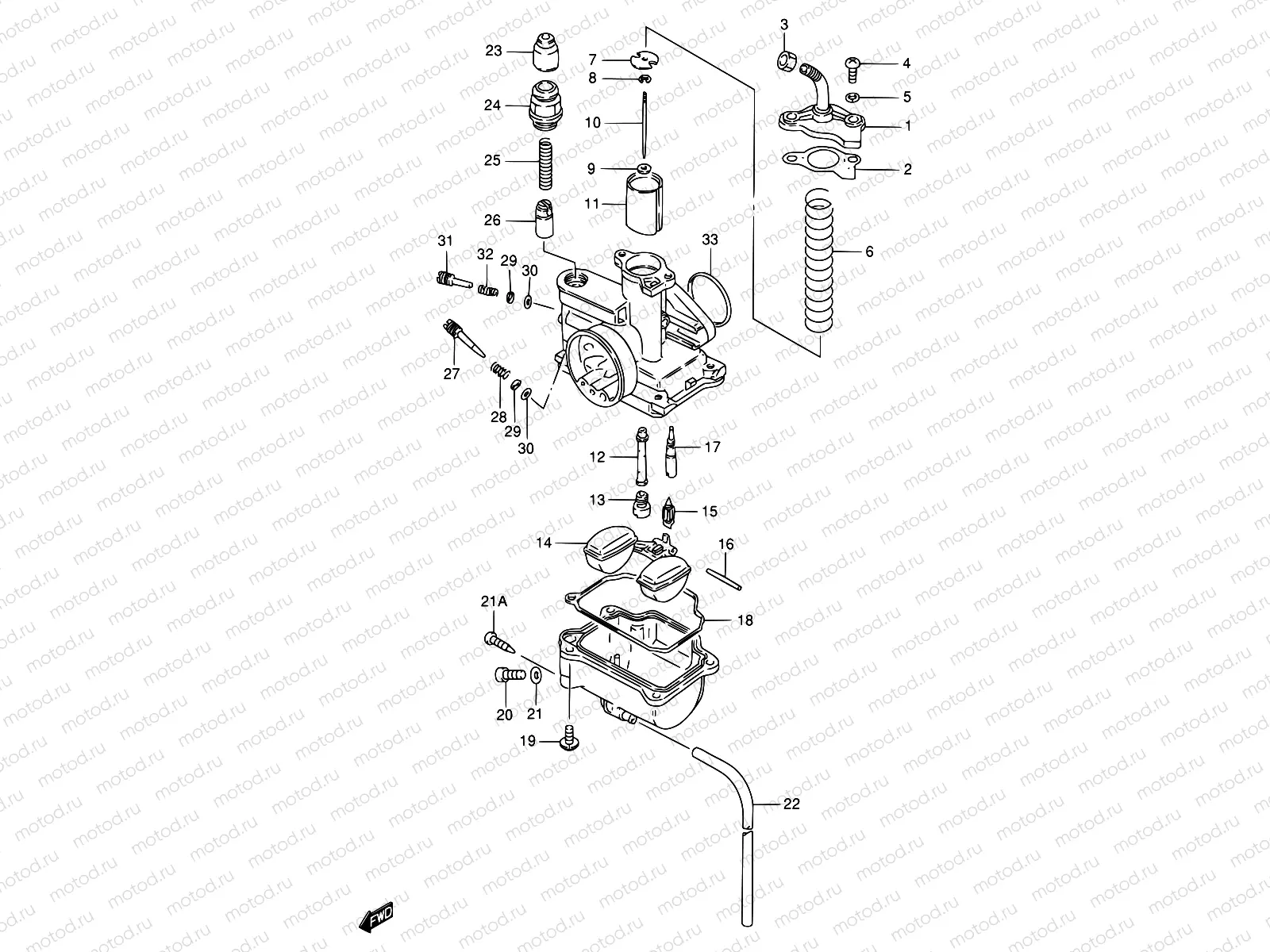

10 - CARBURETOR

10 - CARBURETOR
Например: 13200-30A12
0
13200-30A12
Carburettor
0
13200-30A13
Carburettor
1
13261-30A00
.cap, top
2
13249-30A10
Прокладка
203 ₽/шт
3
13661-03010
Кабель регулирующий
282 ₽/шт
4
02112-0412A
Болт
85 ₽/шт
5
08321-0104A
Пластина замка
82 ₽/шт
6
13573-02101
Spring,thr.valv
7
13447-30A00
PLATE
172 ₽/шт
8
13394-40D00
CLIP,NEEDLE
204 ₽/шт
9
13615-09400
Шайба
246 ₽/шт
10
13383-30A10
.needle, jet
11
13551-30A10
.valve, piston (ca:3.5)
12
09494-00500
.jet, needle (e-1)
13
09491-95004
Жиклер главный (95)
837 ₽/шт
14
13250-30D50
Поплавок
2 444 ₽/шт
15
13370-09D00
Клапан
1 615 ₽/шт
16
13254-20010
Поплавок
178 ₽/шт
17
09492-15011
JET,PILOT(15)
852 ₽/шт
18
13258-30A00
Уплотнитель поплавковой камеры
517 ₽/шт
19
13601-04148
Болт
172 ₽/шт
20
13247-43200
Заглушка дренажная
446 ₽/шт
21
13606-11D00
Шайба
231 ₽/шт
21
13247-02340
Заглушка дренажная
258 ₽/шт
22
09355-25001-600
Hose
502 ₽/шт
23
13681-04011
CAP
835 ₽/шт
24
13418-43410
HOLDER,GUIDE
888 ₽/шт
25
13417-01010
SPRING
282 ₽/шт
26
13411-01010
PLUNGER,STARTER
833 ₽/шт
27
13267-09400
Винт топливный
646 ₽/шт
28
13268-35010
Пружина дросселя
210 ₽/шт
29
13291-29900
Шайба
162 ₽/шт
30
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
31
13267-47A00
Регулятор
368 ₽/шт
32
13494-09410
Пружина
227 ₽/шт
33
09280-24006
O RING(D:2,ID:23.5)
900 ₽/шт
