Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI FB 100 SUZUKI FB100 Y SUZUKI (VIN: JS1BE41A) 15 - TRANSMISSION

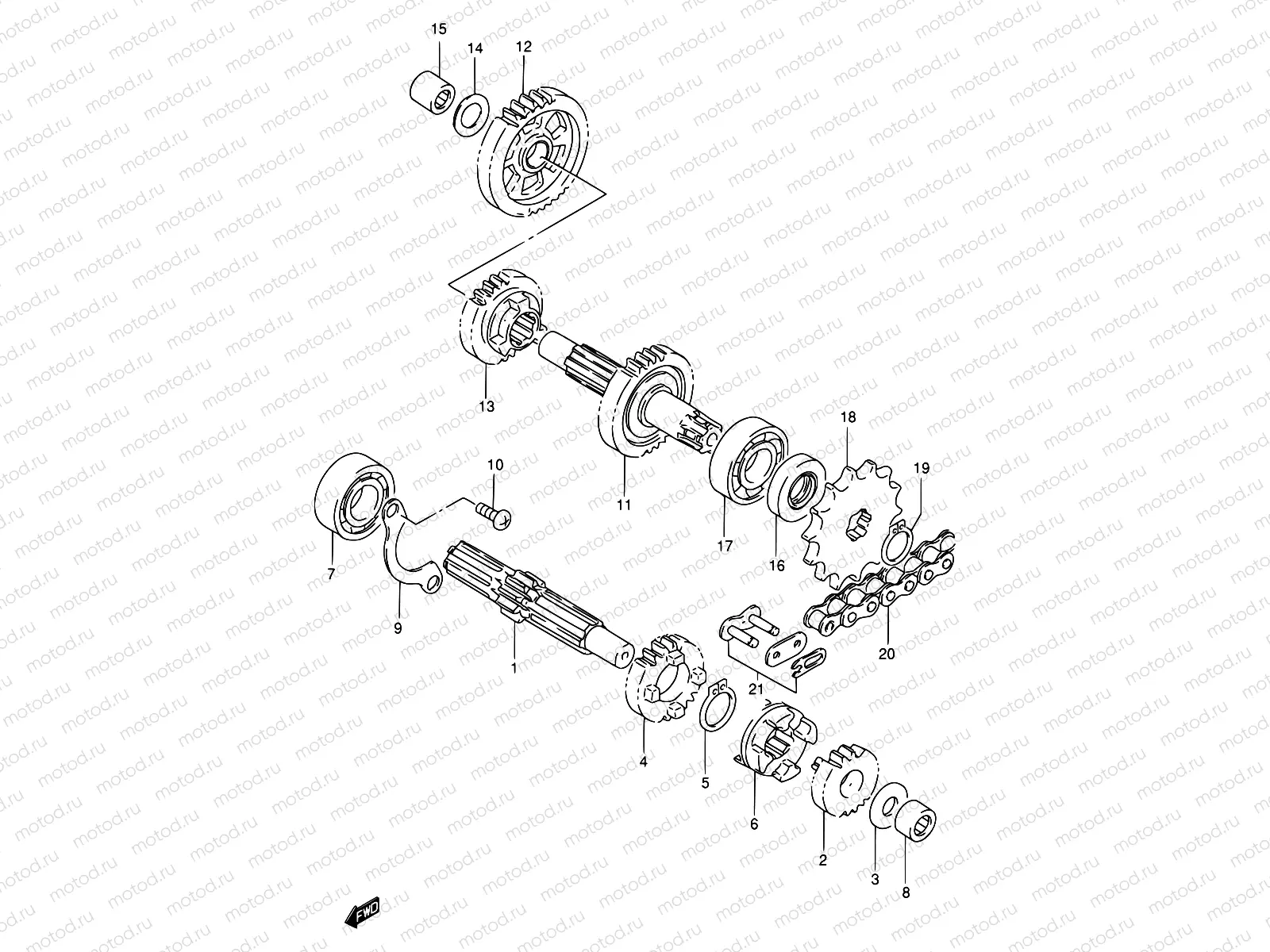

15 - TRANSMISSION

15 - TRANSMISSION

Например: 24121-35406

1

24121-35406

Shaft, counter (nt:10)

2

24221-35422

GEAR,2ND DRIVEN

4 340 ₽/шт

3

09160-13006

WASHER(13X24X1)

1 210 ₽/шт

4

24231-02A03

Gear, 3rd drive (nt:20)

5

09380-17007

CIRCLIP

1 060 ₽/шт

6

24421-35411

Wheel, sliding dog

7

08110-62030

ПОДШИПНИК ВЫЖИМНОЙ

867 ₽/шт

8

09263-13002

BEARING(13X19X12)

631 ₽/шт

9

24741-09401

Фиксатор

317 ₽/шт

10

02112-0610B

Винт

81 ₽/шт

11

24130-30A00

Shaft, drive (nt:29)

11

24130-30A30

Shaft, drive

12

24310-30A01

GEAR,1ST DRIVEN(NT:34)

4 106 ₽/шт

13

24331-35404

GEAR,3RD DRIVEN

4 301 ₽/шт

14

09160-13006

WASHER(13X24X1)

1 210 ₽/шт

15

09263-13002

BEARING(13X19X12)

631 ₽/шт

16

09283-17025

Уплотнение вала

391 ₽/шт

16

09283-17021

Oil seal (17x35x6)

17

09262-17023

ПОДШИПНИК

937 ₽/шт

17

08113-63030

Подшипник B1 17X47X14

1 156 ₽/шт

18

27511-26400

SPROCKET,ENGINE

2 385 ₽/шт

19

08331-31169

CIRCLIP

97 ₽/шт

20

27600-20911-112

Цепь

3 773 ₽/шт

21

27620-40220

JOINT(RK)

581 ₽/шт

21

27620-20911

JOINT SET(DID428)

356 ₽/шт
