Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI FB 100 SUZUKI FB100 Y SUZUKI (VIN: JS1BE41A) 49 - REAR SWINGING ARM

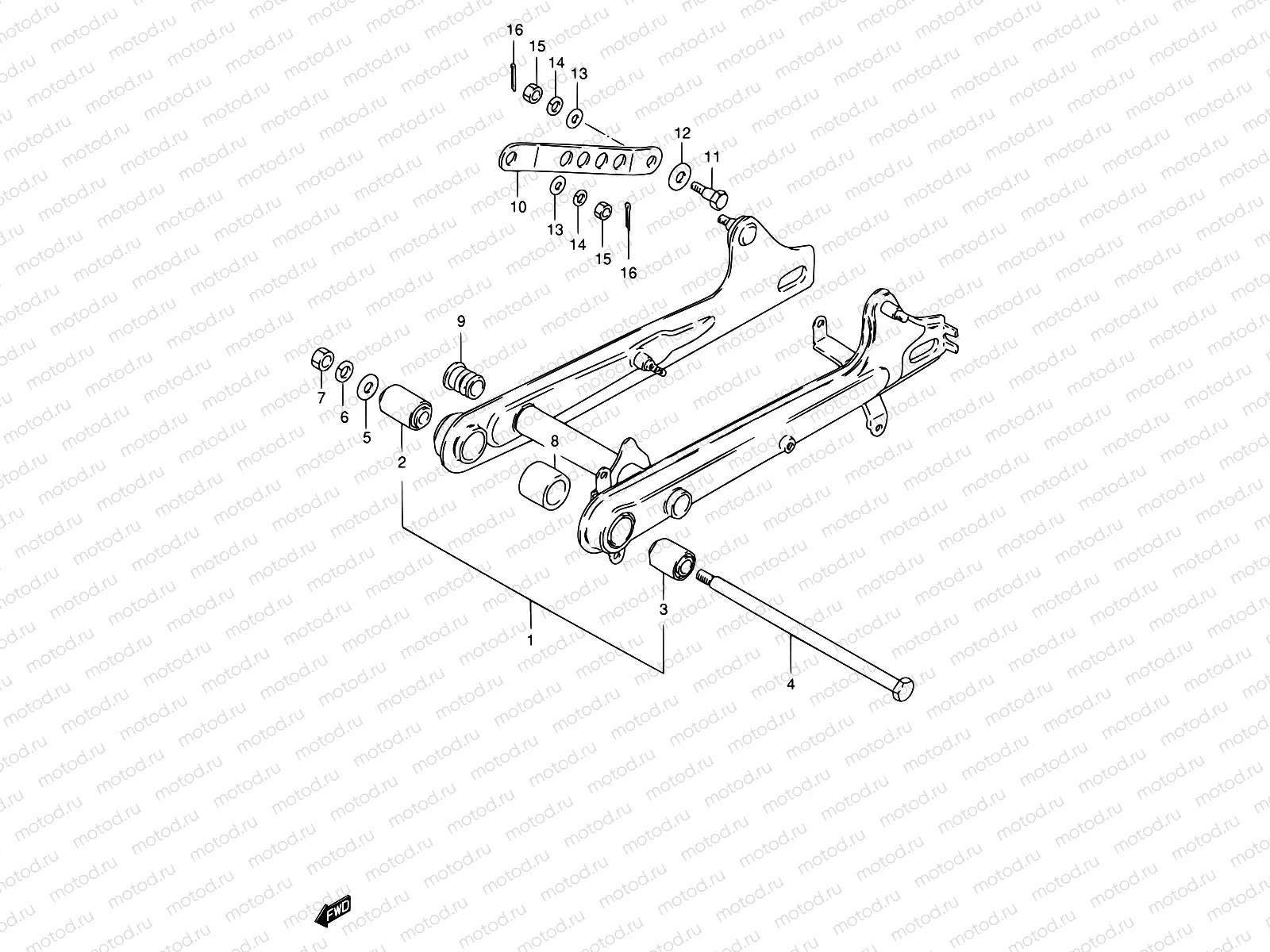

49 - REAR SWINGING ARM

49 - REAR SWINGING ARM
Например: 61000-09421-00J
1
61000-09421-00J
Swinging arm assy, rear (red)
1
61000-09421-04Y
Swinging arm assy, rear (blue)
1
61000-09421-24D
Swinging arm assy, rear (maroon)
1
61000-09421-Y98
Swinging arm assy, rear (green)
1
61000-09470-1UY
Swinging arm assy, rear (blue)
1
61000-09470-20F
Swinging arm assy, rear (maroon)
2
09319-10009
BUSHING(10X23X35)
3 790 ₽/шт
3
09319-10043
Втулка
8 450 ₽/шт
4
61211-09420
SHAFT,PIVOT
989 ₽/шт
5
08322-0110B
Шайба
85 ₽/шт
6
09162-10008
КЛИПС
136 ₽/шт
7
08310-00107
Гайка
85 ₽/шт
8
09320-22001
CUSHION
2 310 ₽/шт
9
09250-22002
Крышка
1 170 ₽/шт
10
64311-09401
Torque link, rear
11
09111-08016
BOLT(8X29)
2 460 ₽/шт
12
64322-09401
Cushion, rear (10x26x2)
13
08322-0108A
Шайба
85 ₽/шт
14
09162-08008
Шайба, стопорная
85 ₽/шт
15
09140-08008
ШАЙБА
97 ₽/шт
16
04111-2020A
Штифт
81 ₽/шт
