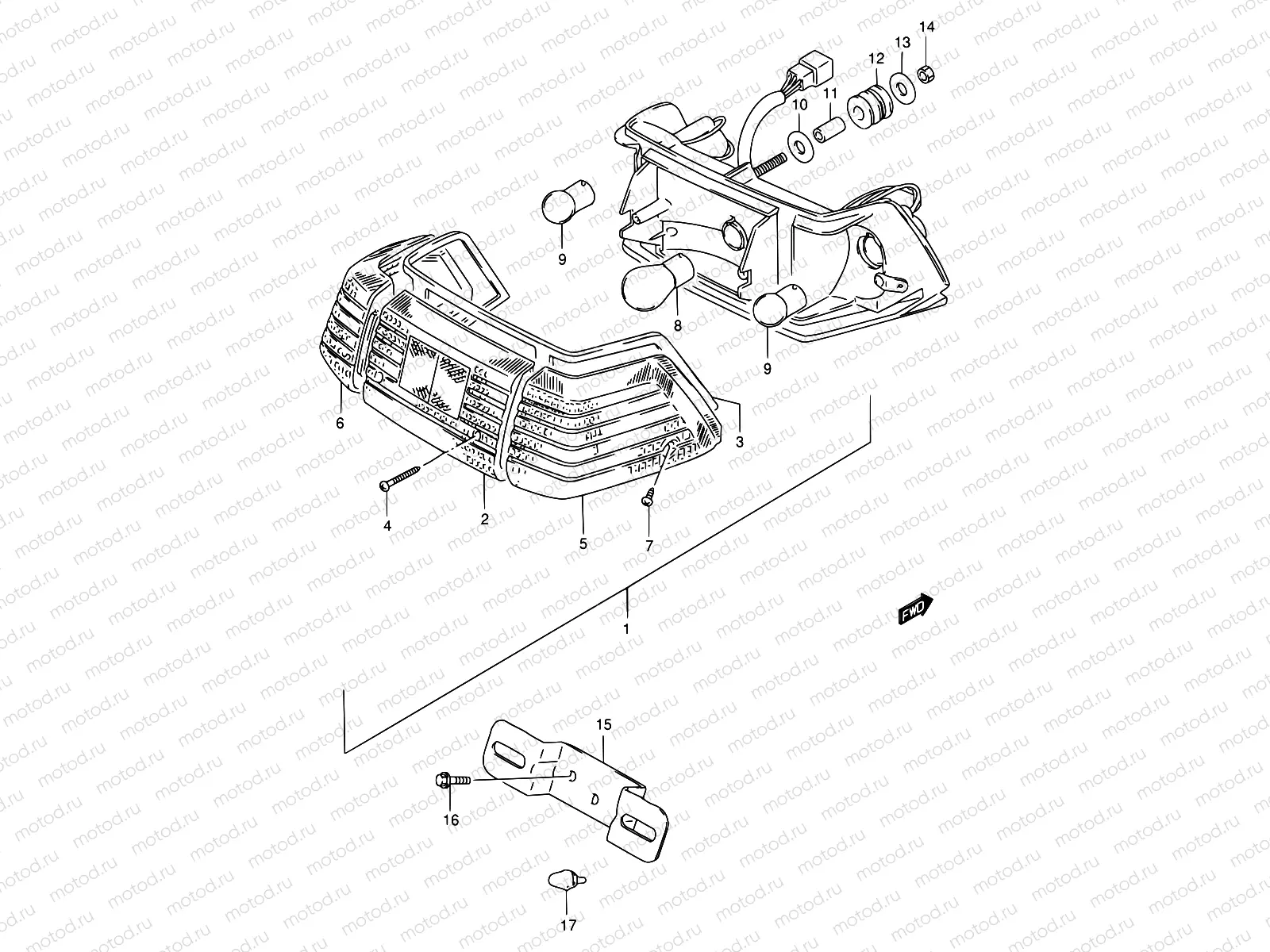

27 - REAR COMBINATION LAMP (E01,E30,E43,E45,E71,P01)

27 - REAR COMBINATION LAMP (E01,E30,E43,E45,E71,P01)
Например: 35710-30A31-999
1
35710-30A31-999
Taillight assy.
1
35710-30A41-999
Taillight assy.
2
35712-35401
.lens, tail/stop
3
35713-35401
Gasket
4
03211-0425B
Болт
82 ₽/шт
5
35652-35401
LENS,RR TURN SIGNAL LAMP RH
6
35672-35401
LENS,RR TURN SIGNAL LAMP LH
2 229 ₽/шт
7
02112-0410A
Болт
740 ₽/шт
8
09471-06008
BULB(6V10/3W,STANLEY,A4854H)
4 540 ₽/шт
8
09471-12119
BULB(12V18/5W)
7 160 ₽/шт
9
09471-06021
BULB(6V8W,STANLEY,A4115)
272 ₽/шт
9
997SO-12177
Bulb
10
09160-06133
Шайба
1 520 ₽/шт
11
35766-38210
Кольцо/шайба
121 ₽/шт
12
35765-30A00
Cushion
13
09160-06052
Шайба
136 ₽/шт
14
08310-0006B
Гайка
81 ₽/шт
15
35927-30A00
Bracket, license plate
16
01550-0612B
БОЛТ
81 ₽/шт
17
09321-06023
CUSHION
1 250 ₽/шт
