Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC G Cavalcade SUZUKI 78 - OUTER COWLING GV1400GDG/GTG -F.NO.104470

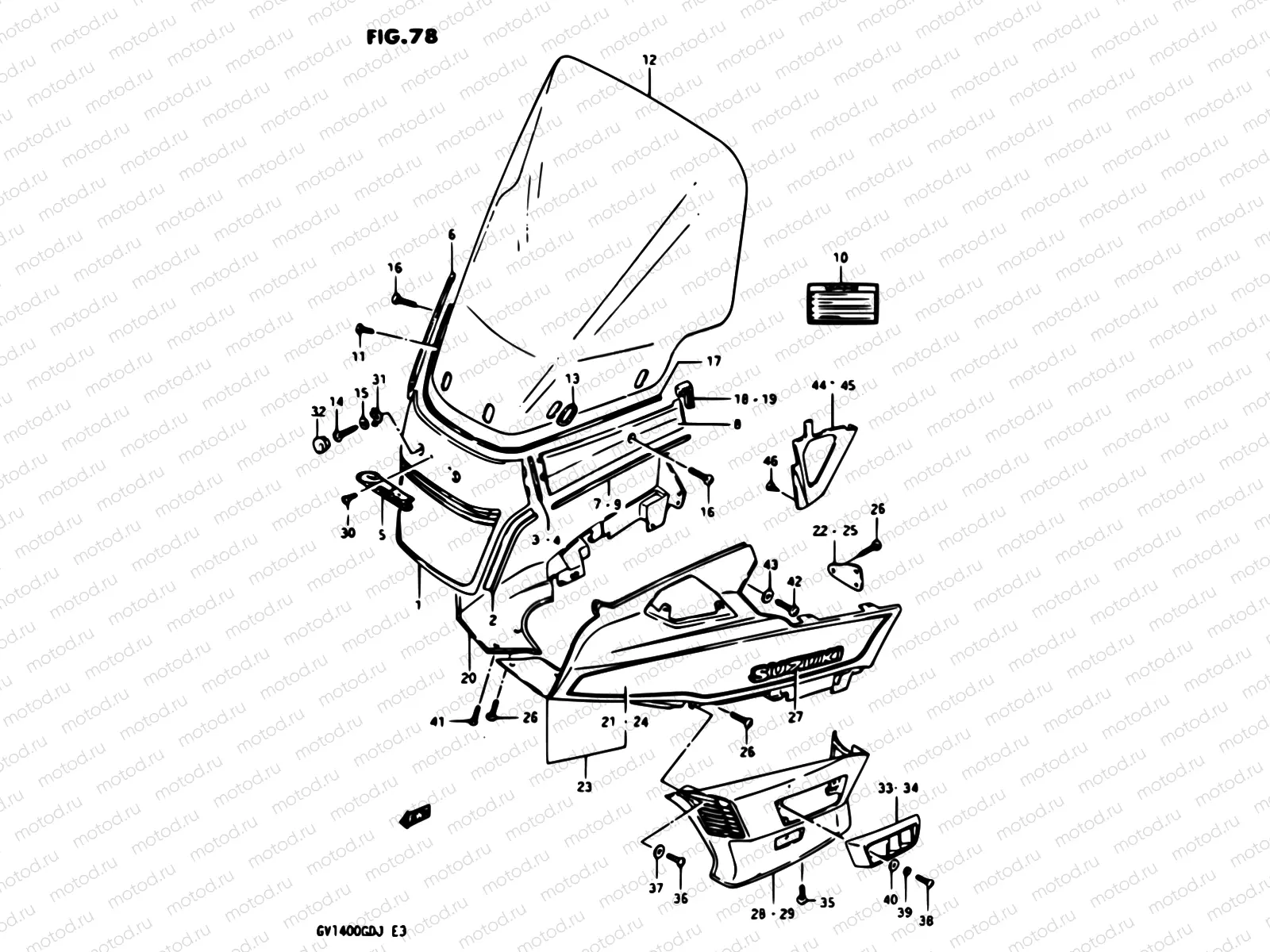

78 - OUTER COWLING GV1400GDG/GTG -F.NO.104470

78 - OUTER COWLING GV1400GDG/GTG -F.NO.104470

Например: 94411-24A00

1

94411-24A00

DEKSEL

2

94639-24A02

.molding fr cvr lower

3

94633-24A00

.molding fr cvr sd rh

4

94634-24A00

.molding fr cvr sd lh

5

68193-24A00

Emblem,cowling front

6

94412-24A00

Cover,cowl front,rh

7

94636-24A02

.front cover side seal

8

94413-24A00

Cover,cowl front,l

9

94636-24A02

.front cover side seal

10

68612-24A01

Label warning screen

11

02142-0620B

Болт

1 060 ₽/шт

12

94610-24A01

Screen,cowling

12

94610-24A91

Cowling screen

13

94614-24A00

Washer,screen

14

02112-0625A

Болт

85 ₽/шт

15

08322-0106A

Шайба

81 ₽/шт

16

02112-0625A

Болт

85 ₽/шт

17

94635-24A00

Seal,front cover,ctr

18

94637-24A00

Cap,cowl front cover, rh

19

94647-24A00

Cap

20

94450-24A00

Body,cowling,r

20

94450-24A00

Body,cowling,r

20

94450-24A10-12S

Body, cowling rh (maroon)

20

94450-24A10-24K

Body, cowling, rh (charcoal)

21

68680-24A00-7UP

.tape set,cowling bod, rh

21

68680-24A00-7UR

.tape set,cowling bod, rh

21

68680-24A10-78V

.tape set, rh

21

68680-24A10-7US

.tape set,rh

22

94499-24A00

.bracket,cow body rr

23

94460-24A00

BODY,COWLING,L

23

94460-24A00-7UN

Body,cowling,lh

23

94460-24A10-12S

Body, cowling lh (maroon)

23

94460-24A10-24K

Body, cowling lh (charcoal)

24

68690-24A00-7UP

.tape set,cowling bod, lh

24

68690-24A00-7UR

.tape set, lh

24

68690-24A10-78V

.tape set, lh

24

68690-24A10-7US

.tape set, lh

25

94499-24A00

.bracket,cow body rr

26

02142-0616A

Болт

81 ₽/шт

27

68111-24A00

Emblem

28

94400-24810-24H

Cover set, cowl side, rh (brown)

28

94400-24810-24G

Cover set cowl side, rh (gold)

28

94400-24810-24K

Cover,side rh, (charcoal)

28

94400-24810-12S

Cover set,cowl side, rh (maroon)

29

94440-24A00-24G

Cover, cowl side lh, (gold)

29

94440-24A00-24H

Cover, cowl side lh, (brown)

29

94440-24A00-12S

Cover, cowl side lh, (maroon)

29

94440-24A00-24K

Cover,side,lh (charcoal)

30

02132-03128

SCREW

740 ₽/шт

31

94456-24A00

Plate,fr.cover

32

94457-24A00

Cap,cover fr.

33

94435-24A01

Louver,side cover, rh

34

94445-24A00

Louver side cvr, lh

35

02142-0616A

Болт

81 ₽/шт

36

02142-0416A

Болт

1 090 ₽/шт

37

09160-04022

Шайба

1 020 ₽/шт

38

02112-0416A

Болт

82 ₽/шт

39

08321-0104A

Пластина замка

82 ₽/шт

40

08322-0104B

Шайба

81 ₽/шт

41

02142-0516B

Болт

85 ₽/шт

42

02112-0616A

Болт

81 ₽/шт

43

08322-0106A

Шайба

81 ₽/шт

44

94436-24A01

Under cover,cov fram, rh

45

94446-24A01

Under cover,cov fram, lh

46

03541-0408A

Болт

820 ₽/шт
