Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC G Cavalcade SUZUKI 42 - PILLION FOOTREST

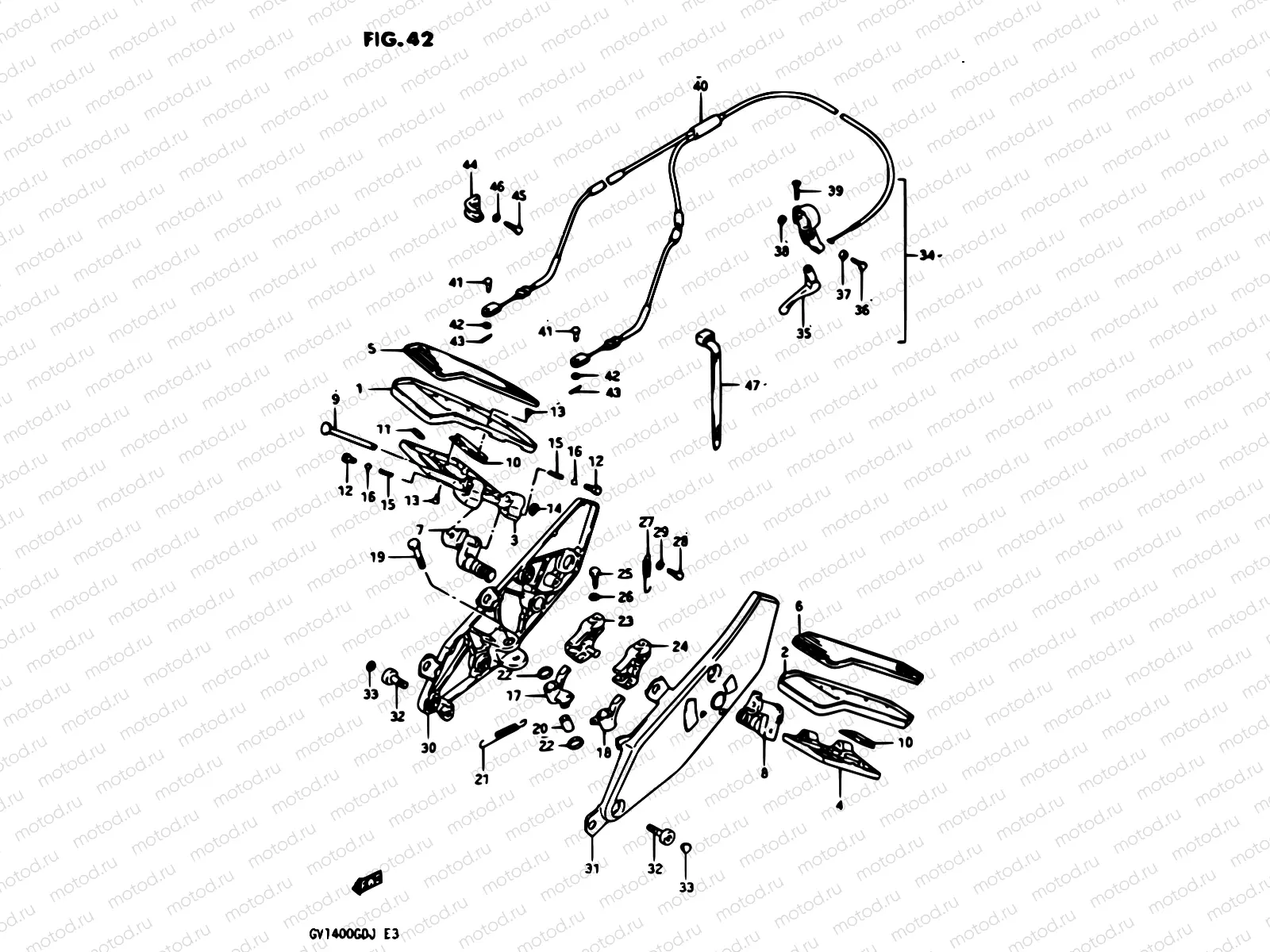

42 - PILLION FOOTREST

42 - PILLION FOOTREST

Например: 43611-24A00

1

43611-24A00

Board,pillion foot u, rh

2

43711-24A00

Board,pillion foot u, lh

3

43613-24A10

Board,pillion foot l, rh

3

43613-24A00

Board,pillion foot l, rh

4

43713-24A00

Board,pillion foot l, lh

4

43713-24A10

Board,pillion foot l, lh

5

43612-24A00

Rubber,pillion foot, rh

6

43712-24A00

Rubber,pillion foot, lh

7

43617-24A00

Bar,pillion foot boa, rh

8

43717-24A00

Bar,pillion foot boa, lh

9

43636-24A00

Pin,pillion foot boa

10

43641-24A00

Cushion,pillion boar

11

43642-24A00

Cushion,foot board

12

43638-24A00

Bolt,pillion board s

13

02122-0510A

Болт

85 ₽/шт

14

08331-31109

КЛИПСА

102 ₽/шт

15

09440-05003

ПРУЖИНА

113 ₽/шт

16

06111-08003

Шарик стальной

82 ₽/шт

17

43610-24A00

Lever comp,foot boar, rh

18

43710-24A00

Lever comp,foot boar, lh

19

09100-10227

BOLT(10X38)

1 920 ₽/шт

20

43718-24A00

Spacer pill boad lvr

21

09443-08034

Spring

22

09181-16130

SHIM(16X22X0.5)

1 680 ₽/шт

23

43620-24A00

Cam,pillion foot boa, rh

24

43720-24A00

Cam comp,pillion foo, lh

25

01500-08257

Болт

102 ₽/шт

26

08321-01087

Пластина замка

81 ₽/шт

27

09443-13030

Spring

28

01500-06127

Болт

81 ₽/шт

29

08310-00067

Гайка

81 ₽/шт

30

43810-24A10

Bracket muffler, rh

30

43810-24A00

Bracket muffler, rh

31

43820-24A00

Bracket muffler,lh

31

43820-24A10

Bracket muffler, lh

32

09106-10042

Vis

33

43575-34500

CAP

170 ₽/шт

34

57900-24A00

Lever assy,pillion f

35

57912-24A00

.lever

36

01104-05205

.bolt

37

58741-24400

.spacer decomp lever

38

08319-2105A

Гайка

97 ₽/шт

39

02112-0620A

Болт

85 ₽/шт

40

58850-24A00

Cable

41

09200-06004

Стопор

113 ₽/шт

42

08322-0106A

Шайба

81 ₽/шт

43

04111-2015A

Штифт

81 ₽/шт

44

58881-24A00

Bracket,pillion foot

45

01500-06127

Болт

81 ₽/шт

46

08321-01067

Шайба, стопорная

81 ₽/шт

47

09407-18402

Струбцина (L:165)

211 ₽/шт
