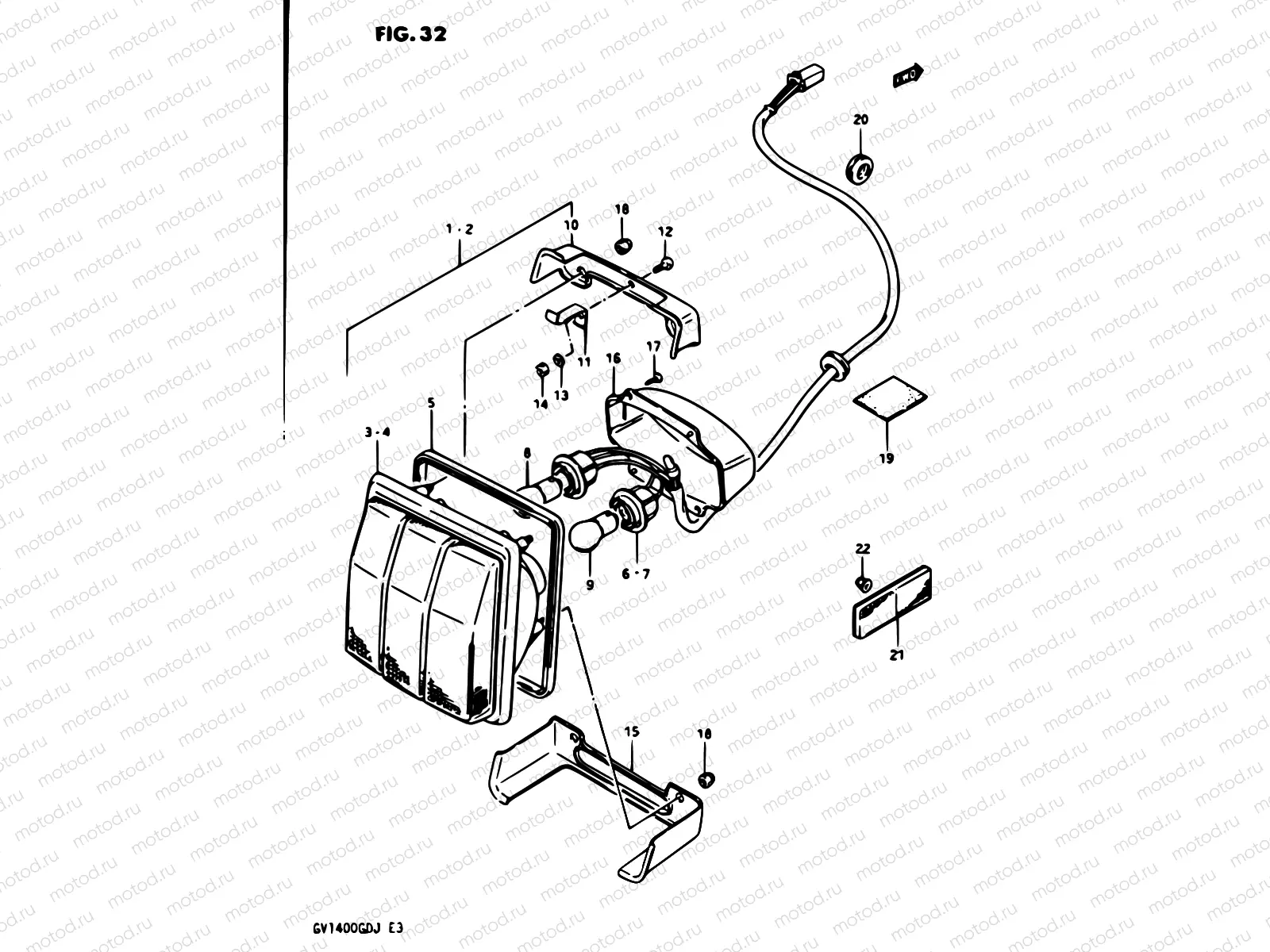

32 - REAR COMBINATION LAMP

32 - REAR COMBINATION LAMP

Например: 35603-24A01

1

35603-24A01

Lamp assy rear comb, rh

2

35604-24A01

Lamp assy rear comb, lh

3

35650-24A00

.lamp unit rh

4

35670-24A00

.lamp unit lh

5

35653-24A00

Gasket

6

35678-24A01

.socket, rh

7

35678-24A01

.socket, lh

8

09471-12084

Bulb 12v 23/8w

9

09471-12006

BULB(12V23W,STANLEY,A4577A)

4 140 ₽/шт

10

35621-24A00

.bracket, upper (no.1)

11

35622-24A00

.bracket upper (no.2)

12

02112-0510B

Болт

85 ₽/шт

13

08321-0105A

Пластина замка

81 ₽/шт

14

08310-00057

Гайка

81 ₽/шт

15

35641-24A00

.bracket, lower

16

35677-24A00

.cover

17

03211-0412A

Болт

1 060 ₽/шт

18

08313-10067

Гайка

109 ₽/шт

19

36920-02200

COVER,HARNESS

192 ₽/шт

20

09308-07013

Damper

21

35970-24A00

REFLEXREFLECTOR

22

08313-2005A

Гайка

82 ₽/шт
