Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC G Cavalcade SUZUKI 53 - FRONT FORK GV1400GCG/MODEL H/J

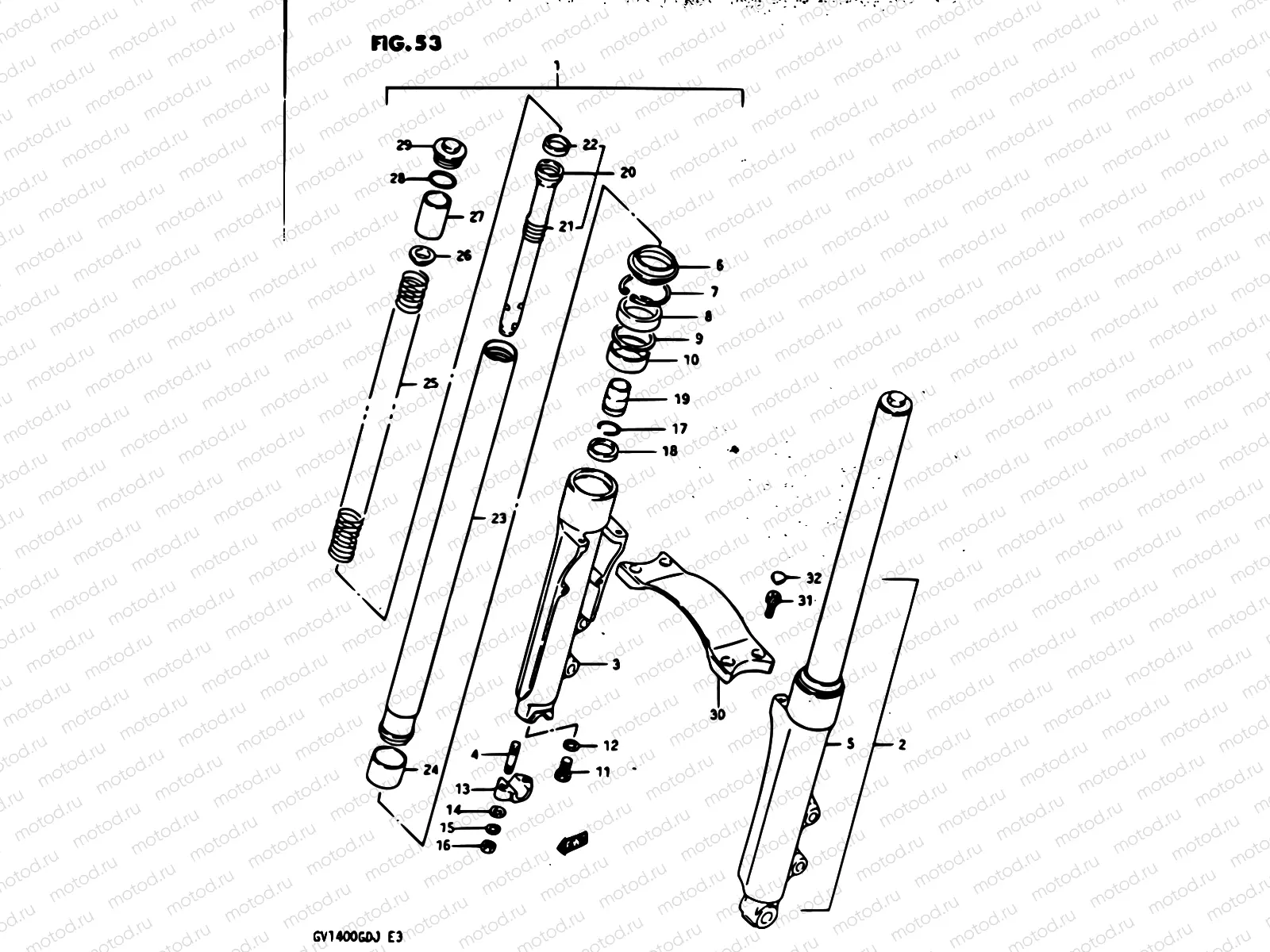

53 - FRONT FORK GV1400GCG/MODEL H/J

53 - FRONT FORK GV1400GCG/MODEL H/J

Например: 51103-24A20

1

51103-24A20

Damper assy,rh

2

51104-24A20

Damper assy,lh

3

51130-24A20

.tube,outer, rh

4

01411-0830A

Болт

136 ₽/шт

5

51140-24A20

.tube,outer, lh

6

51173-14F00

Уплотнение

921 ₽/шт

7

51156-49440

RING,OIL SEAL STOPPER

204 ₽/шт

8

51153-27C20

Сальник

2 720 ₽/шт

9

51158-05A00

Шайба

299 ₽/шт

10

51167-26E10

Металическая вставка

765 ₽/шт

11

51147-40300

BOLT,CYLINDER

371 ₽/шт

12

51148-40300

Прокладка

162 ₽/шт

13

51132-49440

.holder,axle, rh

14

08322-01087

Шайба

81 ₽/шт

15

08321-01087

Пластина замка

81 ₽/шт

16

09140-08017

ГАЙКА

1 170 ₽/шт

17

51198-05A00

.ring snap

18

51193-24A00

.valve

19

51195-24A00

.piece,oil lock

20

51146-24A00

.cylinder

21

51177-24A00

..spring

22

51196-05A00

Кольцо поршневое

559 ₽/шт

23

51110-24A00

.tube, inner

24

51121-05A00

Metal,slide fr

25

51171-24A00

.spring

26

51356-24B01

Шайба

655 ₽/шт

27

51176-24A00

.spacer

28

51117-40300

O RING

238 ₽/шт

29

51351-24A00

.cap

30

53115-24A20

Brace fork

31

07130-08207

Болт

2 070 ₽/шт

32

09250-06009

Крышка

194 ₽/шт
