Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC G Cavalcade SUZUKI 20 - TRANSMISSION

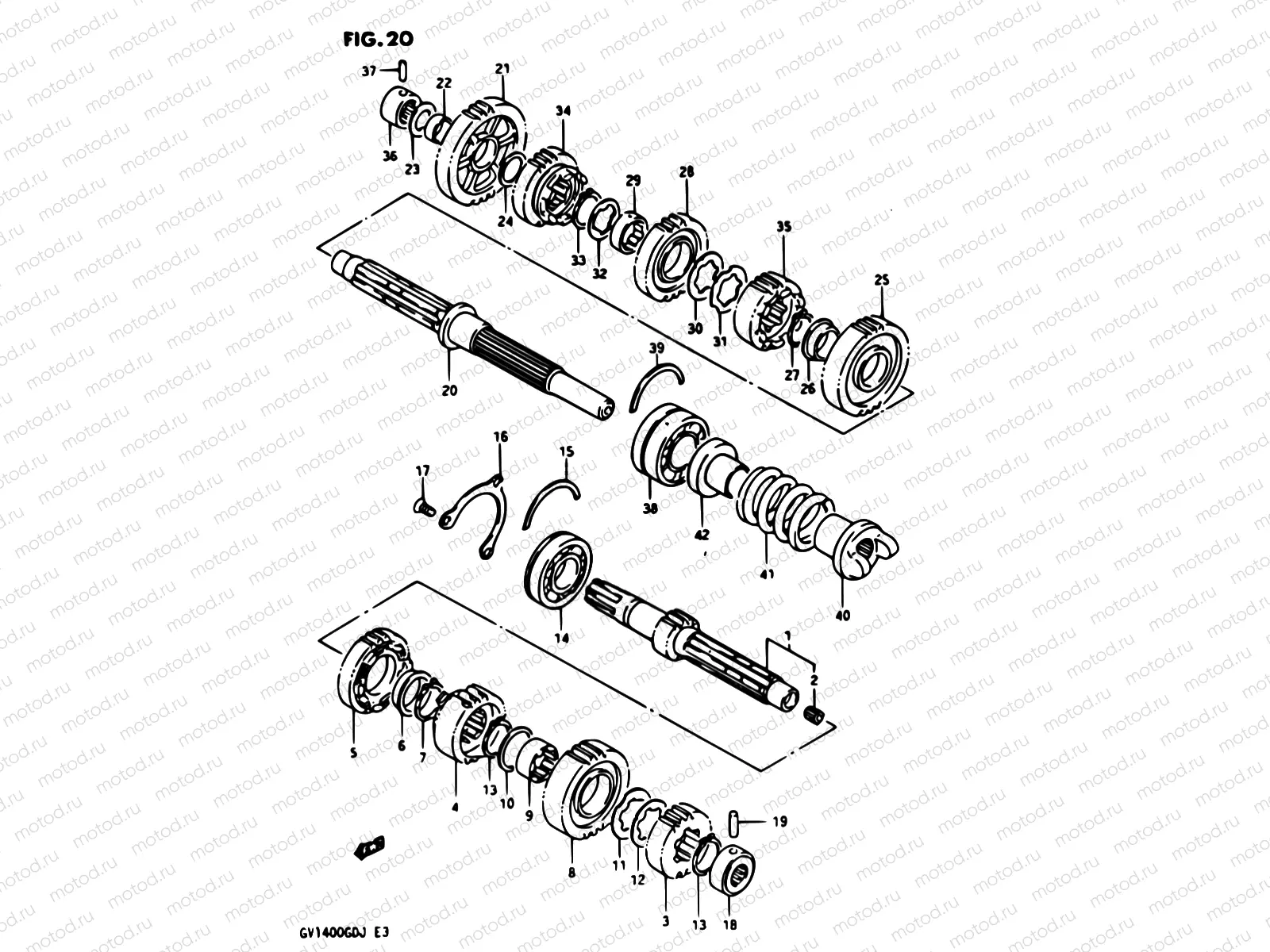

20 - TRANSMISSION

20 - TRANSMISSION

Например: 24100-24841

1

24100-24841

Counter shaft (nt:12)

2

24125-38201

Втулка

272 ₽/шт

3

24221-24A02

Gear, 2nd drive (nt:19)

4

24231-24A05

Gear, 3rd drive (nt:20)

5

24241-24A05

Gear, 4th drive (nt:25)

6

09301-28001

BUSH(28X32X2)

14 700 ₽/шт

7

09380-28008

Seeger

8

24251-24A05

Gear, 5th drive (nt:27)

9

24332-24A00

Втулка

2 380 ₽/шт

10

09167-28001

WASHER,LOCK

2 310 ₽/шт

11

09167-28002

Пластина замка

2 310 ₽/шт

12

09169-28002

Lock washer, lh

13

08331-31289

CIRCLIP

1 250 ₽/шт

14

09262-25051

Подшипник

4 441 ₽/шт

15

09390-62012

C RING

4 460 ₽/шт

16

24741-05A00

Retainer bearing

17

02122-0616B

Болт

85 ₽/шт

18

09263-20054

Rc 20x36x16 brg 8x3, lh

19

04221-07209

ШТИФТ

102 ₽/шт

20

24131-24A04

Shaft, drive

21

24311-24A03

Gear,1st driven (nt:33)

22

24312-02F00

ВТУЛКА

1 580 ₽/шт

23

08211-20343

Ось муфты

1 840 ₽/шт

24

08211-22321

Шайба

1 840 ₽/шт

25

24321-24A01

Gear 2nd driven (nt:33)

26

09301-28001

BUSH(28X32X2)

14 700 ₽/шт

27

08331-31289

CIRCLIP

1 250 ₽/шт

28

24331-24A02

Gear 3rd driven (nt:25)

29

24332-49000

BUSH,3RD DRIVEN GEAR

1 189 ₽/шт

30

09169-28001

Пластина замка

1 840 ₽/шт

31

09167-28002

Пластина замка

2 310 ₽/шт

32

09167-28001

WASHER,LOCK

2 310 ₽/шт

33

08331-31289

CIRCLIP

1 250 ₽/шт

34

24341-24A02

Gear, 4th driven (nt:25)

35

24351-24A04

Gear, 5th driven (nt:23)

36

09263-20040

ПОДШИПНИК ШАРИКОВЫЙ

4 505 ₽/шт

37

04221-07209

ШТИФТ

102 ₽/шт

38

09267-30008

B2 30x62x28 bearing, lh

39

09390-62012

C RING

4 460 ₽/шт

40

24922-24A03

Dog,input cam

41

09440-47004

Spring

42

24923-24A01

Stopper,cam spring
