Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC G Cavalcade SUZUKI 40 - REAR BRAKE

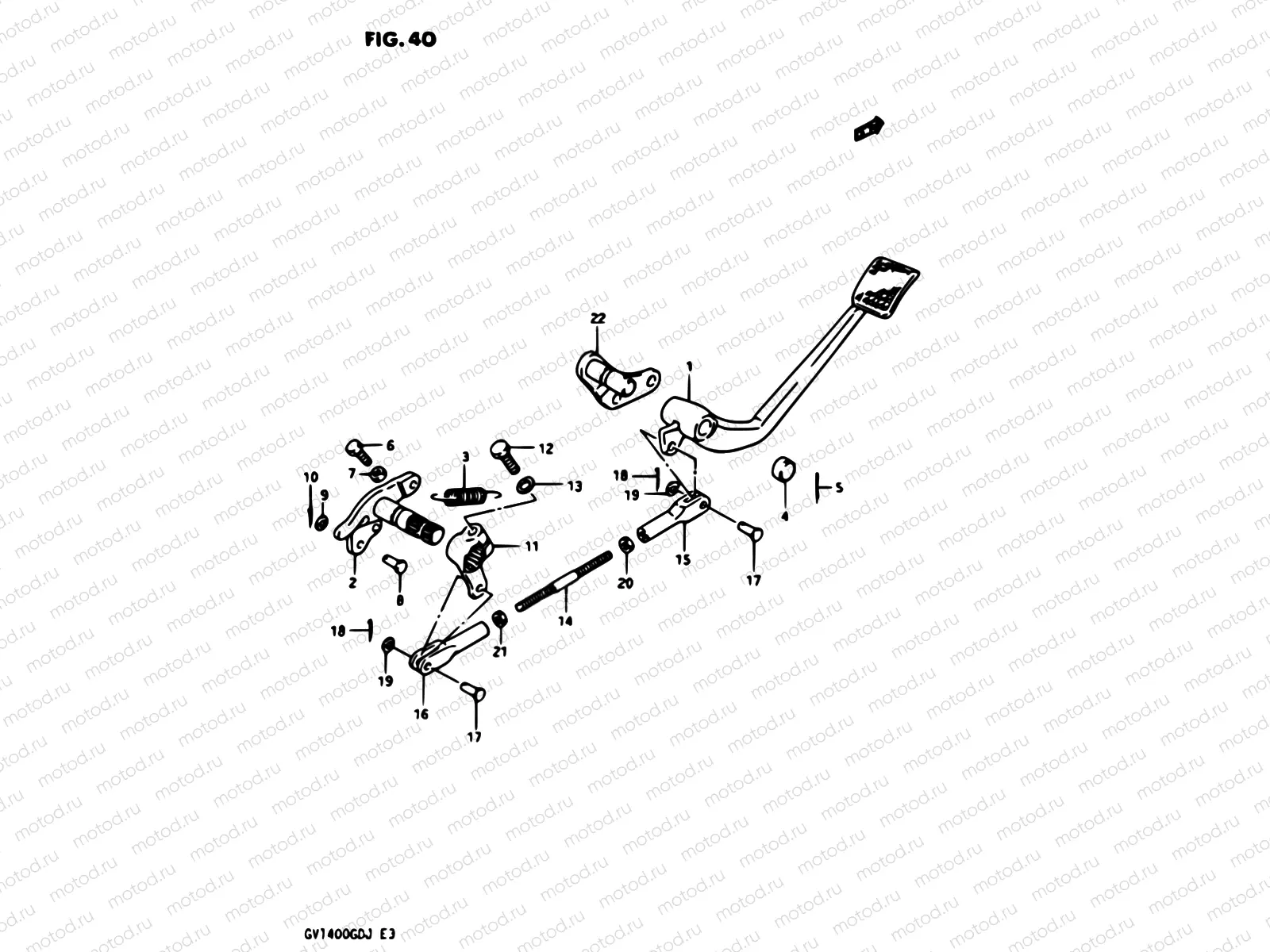

40 - REAR BRAKE

40 - REAR BRAKE

Например: 43110-24A00

1

43110-24A00

Pedal comp,brake

2

43120-24A01

rm rr master cylder

3

09443-14046

Пружина

3 640 ₽/шт

4

43135-07A02

CAP,BRAKE PEDAL

559 ₽/шт

5

04111-3030A

Стопор

81 ₽/шт

6

09100-06009

Болт

129 ₽/шт

7

08310-00067

Гайка

81 ₽/шт

8

09200-06068

Вал ручки

226 ₽/шт

9

08322-0106A

Шайба

81 ₽/шт

10

04111-2015A

Штифт

81 ₽/шт

11

43261-24A02

rm brake pedal link

12

01500-08257

Болт

102 ₽/шт

13

08321-01087

Пластина замка

81 ₽/шт

14

43271-24A00

Link,brake pedal

15

43272-24A00

Joint,brake pedal,fr

16

43273-24A01

Joint,brake pedal.re

17

09200-06068

Вал ручки

226 ₽/шт

18

04111-2020A

Штифт

81 ₽/шт

19

08322-0106A

Шайба

81 ₽/шт

20

09159-08058

Nut

21

08310-00087

Гайка 8MM

81 ₽/шт

22

43140-24A01

Bar,brake pedal boss
