Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GV 1400 Cavalcade SUZUKI GV1400GC H Cavalcade SUZUKI 75 - REAR MASTER CYLINDER

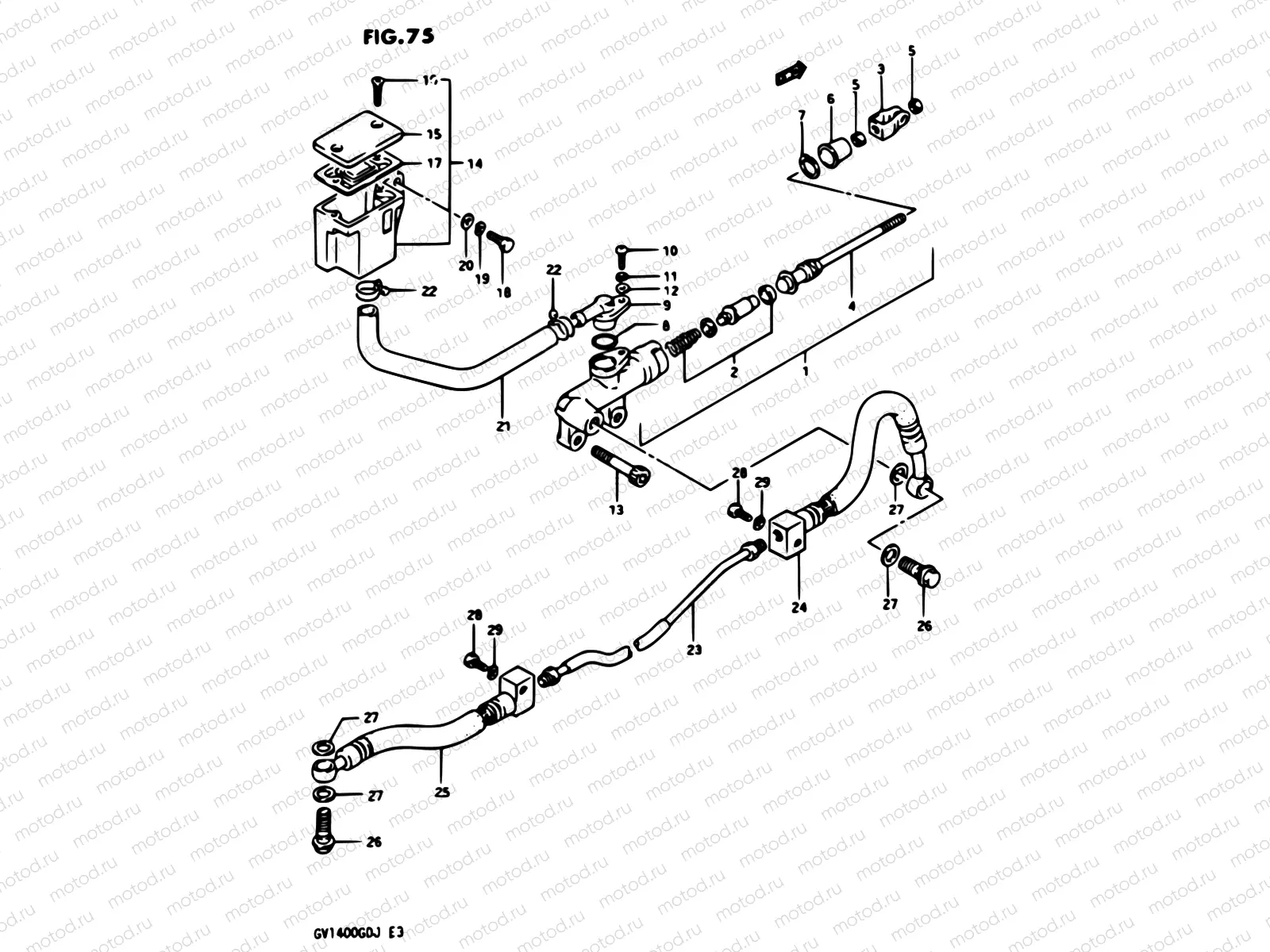

75 - REAR MASTER CYLINDER

75 - REAR MASTER CYLINDER

Например: 69600-24A01

1

69600-24A01

Cylinder assy,rear m

2

69600-04810

PISTON/CUP SET

4 420 ₽/шт

3

69692-19A00

Ботинок

845 ₽/шт

4

69670-24A00

Штанга

2 639 ₽/шт

5

69693-05A00

Гайка

162 ₽/шт

6

69691-00A00

Ботинок

275 ₽/шт

7

51162-70040

CIRCLIP

231 ₽/шт

8

69686-34200

Кольцо уплотнительное

162 ₽/шт

9

69672-05A00

Коннектор

387 ₽/шт

10

02112-0412A

Болт

85 ₽/шт

11

08321-0104A

Пластина замка

82 ₽/шт

12

08322-0104B

Шайба

81 ₽/шт

13

07120-0860B

Болт

2 620 ₽/шт

14

69740-24A01

TANK ASSY,RESERVOIR

12 508 ₽/шт

15

69669-24A01

CAP

954 ₽/шт

16

69689-04A00

Болт

187 ₽/шт

17

59667-04700

УПЛОТНИТЕЛЬ

799 ₽/шт

18

01500-06167

БОЛТ

85 ₽/шт

19

08321-01067

Шайба, стопорная

81 ₽/шт

20

08322-0106A

Шайба

81 ₽/шт

21

69731-24A00

Hose,reservoir tank

22

09400-16304

КОЛЬЦО

2 460 ₽/шт

23

69250-24A00

Pipe comp,rear brake

24

69480-24A12

Hose,rr brake

25

69480-24A22

Hose,rr brake no.2

26

09360-10061

Болт соединяющий

3 910 ₽/шт

27

09161-10009

Шайба

113 ₽/шт

28

01500-06127

Болт

81 ₽/шт

29

08321-01067

Шайба, стопорная

81 ₽/шт
