Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GS 1100 SUZUKI GS1100GK Z SUZUKI 7 - CRANKCASE COVER

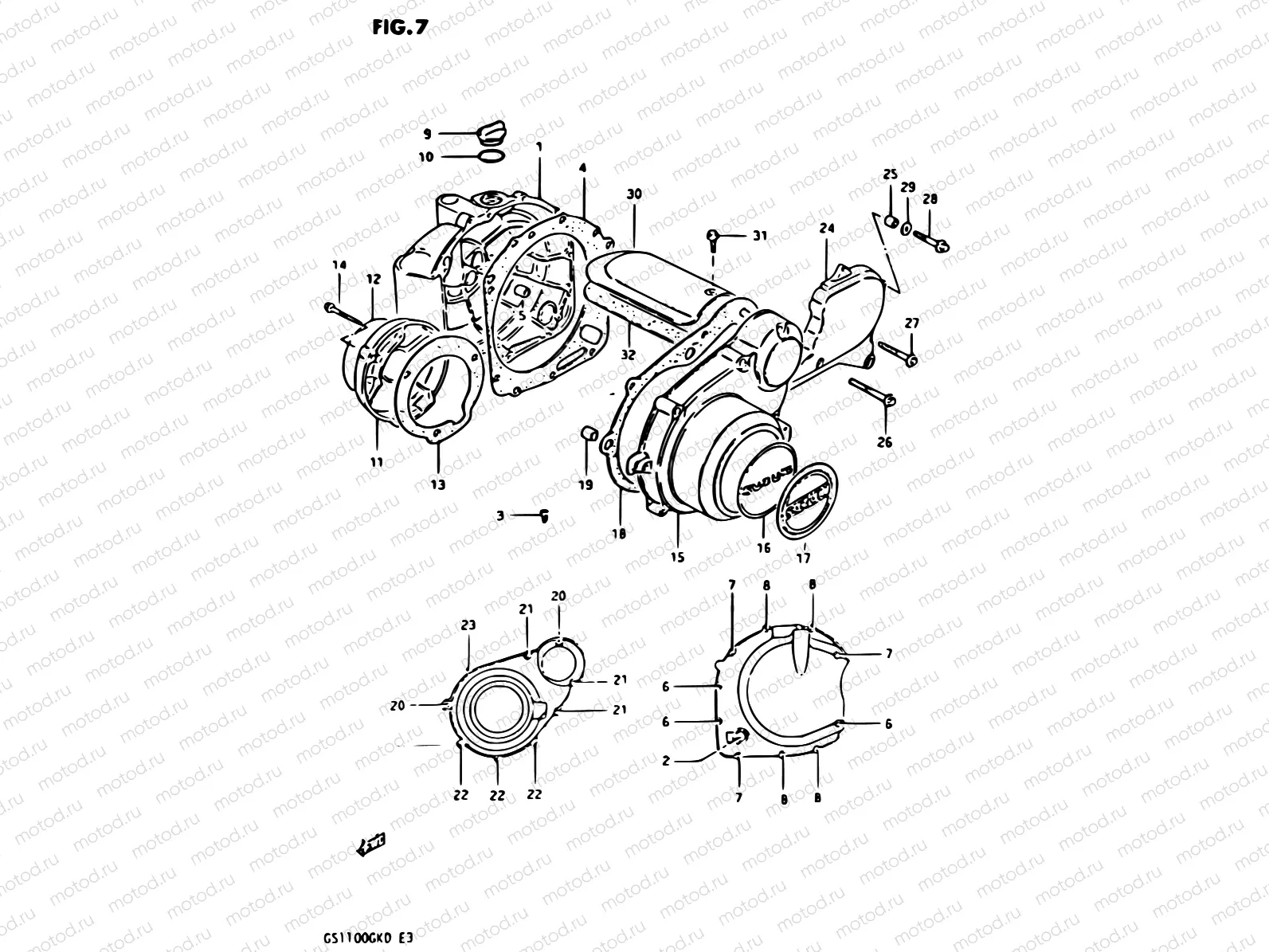

7 - CRANKCASE COVER

7 - CRANKCASE COVER

Например: 11340-49101

1

11340-49101

Cover clutch

2

11971-45010

СТЕКЛО ДАТЧИКА УРОВНЯ МАСЛА

1 010 ₽/шт

3

09493-22009

Jet air

4

11482-49100-H17

Gasket - clutch cover

5

09202-09004

Pin clutch cover

6

01547-06357

Болт

1 250 ₽/шт

7

01547-06307

Болт

102 ₽/шт

8

01547-06257

БОЛТ

102 ₽/шт

9

09200-30810

PLUG SET

6 180 ₽/шт

10

09280-32005

O RING(D:2.2,ID:32)

204 ₽/шт

11

11381-49002

Cover,contact b

12

68235-45200

Emblem,contact

12

68235-34200

Emblem

13

11491-45000

Gasket

14

01547-05307

BOLT

1 250 ₽/шт

15

11351-49002

Carter Couverture Générateur

16

68233-34200

Emblem

17

68233-45200

EMBLEM,MAGNETO COVER

4 420 ₽/шт

18

11483-45000-H17

GASKET,MAGNETO COVER

1 220 ₽/шт

19

04211-13189

ШТИФТ

129 ₽/шт

20

01547-06457

Болт

97 ₽/шт

21

01547-06407

Болт

1 410 ₽/шт

22

01547-06357

Болт

1 250 ₽/шт

23

01547-06307

Болт

102 ₽/шт

24

11360-49101

Cover sec drive unit

25

04211-09129

Стопор

102 ₽/шт

26

01547-06307

Болт

102 ₽/шт

27

01547-06257

БОЛТ

102 ₽/шт

28

01547-06207

Болт

85 ₽/шт

29

08322-0106A

Шайба

81 ₽/шт

30

11382-45410

Cover,startmoto

30

11382-49002

COVER,STARTER MOTOR

2 561 ₽/шт

31

01547-0508B

Болт крышки

1 490 ₽/шт

31

01547-05087

Болт

900 ₽/шт

32

11493-45002

Gasket
