Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GS 1100 SUZUKI GS1100GK Z SUZUKI 14 - CARBURETOR

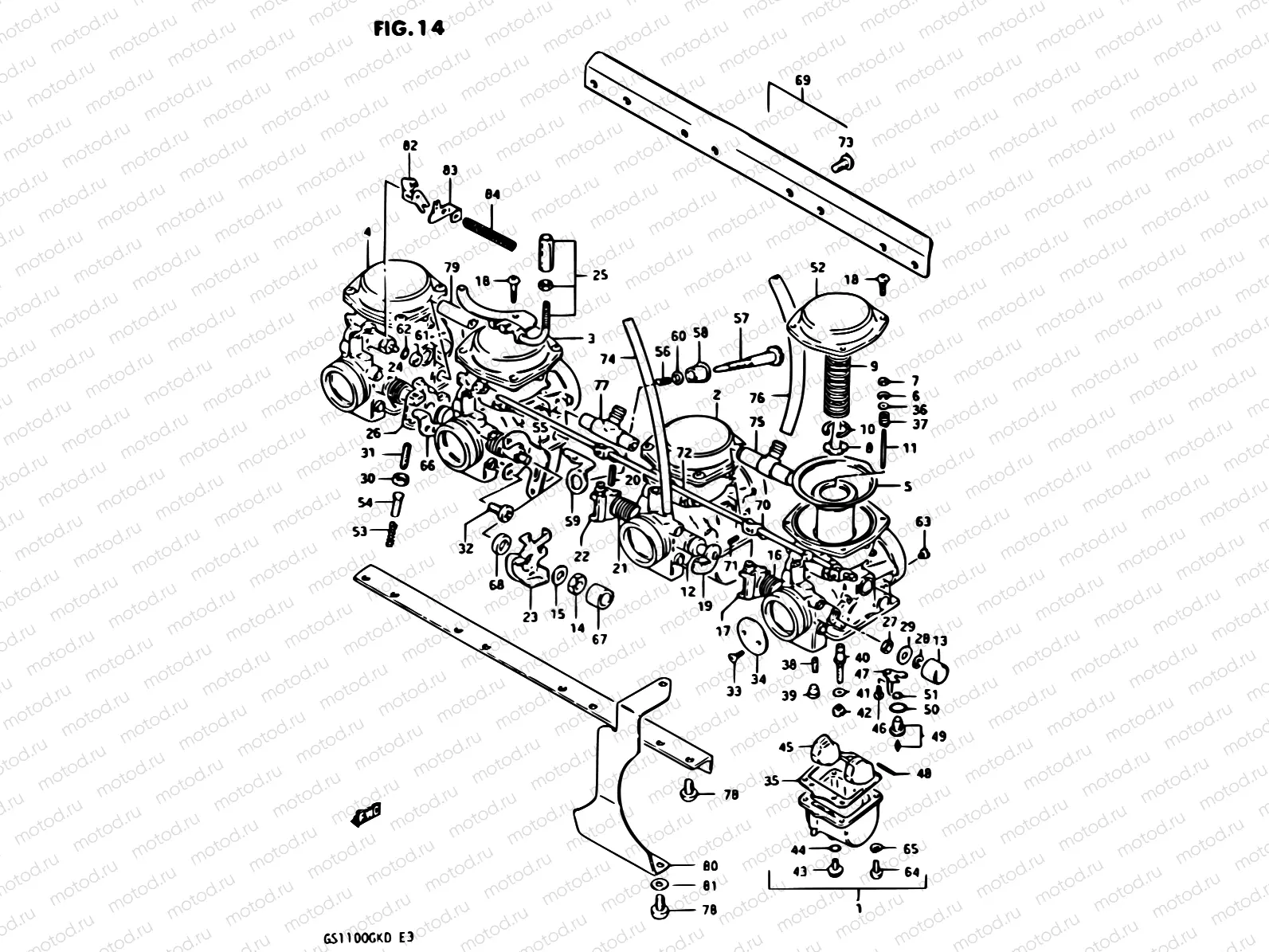

14 - CARBURETOR

14 - CARBURETOR

Например: 13201-49400

1

13201-49400

Carburetor assy no.1

2

13202-49400

Carburetor assy no.2

3

13203-49400

Carburetor assy no.3

4

13204-49400

Carburetor assy no.4

5

13500-38311

Diaphragm,carbu

6

13394-31210

CLIP,NEEDLE

238 ₽/шт

7

13387-44030

RING

323 ₽/шт

8

13389-44030

Держатель направляющей

868 ₽/шт

9

13503-44080

Spring

10

13581-44030

E RING

489 ₽/шт

11

13383-49200

Жиклер игольчатый

1 224 ₽/шт

12

13557-49200

GASKET

254 ₽/шт

13

13578-47070

CAP

364 ₽/шт

14

08310-00087

Гайка 8MM

81 ₽/шт

15

13606-47070

WASHER,THROTTLE SHAFT

16

13573-47070

.spring

17

13550-49200

.shaft carburetor

18

02112-05167

Болт

81 ₽/шт

19

13550-49210

.shaft carburetor

20

13563-47070

..pin

21

13573-45110

.spring

22

13553-47070

.lever

23

13555-47070

.lever assy

24

13573-47080

.spring

25

13621-49220

.bracket throttle

26

13550-49200

.shaft carburetor

27

13651-51011

Seal

231 ₽/шт

28

13617-44080

E RING

231 ₽/шт

29

13557-47070

GASKET,THROTTLE SHAFT

301 ₽/шт

30

13607-47070

Гайка

170 ₽/шт

31

13605-47080

SCREW

512 ₽/шт

32

02112-0510B

Болт

85 ₽/шт

33

13604-44080

Болт

235 ₽/шт

34

13551-49150

.valve throttle (140)

35

13251-44081-H17

GASKET,FLOAT CHAMBER

958 ₽/шт

36

13382-44030

Шайба

4 110 ₽/шт

37

13388-44030

Пружина

1 143 ₽/шт

38

09492-40007

Jet,pilot

39

13357-44080

PLUG,NEEDLE JET

318 ₽/шт

40

09494-00358

.jet,needle (x-3)

41

13382-03110

Шайба

178 ₽/шт

42

09491-23011

JET,MAIN(115)

1 777 ₽/шт

43

13247-44080

Болт

669 ₽/шт

44

13246-44080

Прокладка

231 ₽/шт

45

13250-44080

Поплавок

2 307 ₽/шт

46

02112-0406B

Болт

81 ₽/шт

47

13373-11400

Плата клапана

465 ₽/шт

48

13254-92311

PIN,FLOAT

162 ₽/шт

49

13370-44500

Запорная игла поплавковой камеры

3 655 ₽/шт

50

13374-35C00

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

275 ₽/шт

51

13376-19F00

Фильтр-сеточка

581 ₽/шт

52

13502-49250

COVER,DIAPHRAGM

2 366 ₽/шт

53

13268-44010

.spring

54

13575-47070

.pin

55

13627-45110

.bracket

56

13271-93011

Пружина

204 ₽/шт

57

13267-47070

Screw

58

13276-31210

.thro adjuster bush

59

13627-44090

.bracket

60

13432-47090

Шайба

156 ₽/шт

61

13682-31210

CAP,STARTER VALVE

459 ₽/шт

62

13278-47091

O Ring

210 ₽/шт

63

09493-34001

Жиклерпроводник воздуха

1 028 ₽/шт

64

02112-05167

Болт

81 ₽/шт

65

08321-0105A

Пластина замка

81 ₽/шт

66

13550-49230

.shaft carburetor

67

13574-49200

.ring carburetor

68

13574-45120

Ring

69

13210-49410

Flg assy, carburetor

70

13422-44080

Lever,starter p

71

13605-47070

Болт

407 ₽/шт

72

13410-49200

.shaft carburetor

73

02142-05127

Болт

85 ₽/шт

73

02142-0512A

Болт

85 ₽/шт

74

09355-45857-600

Шланг

1 433 ₽/шт

75

13685-49210

Ниппель

1 376 ₽/шт

76

09354-65113-600

Cső (6.5x11.5x600)

77

13685-49200

Pipe

78

02112-3616A

Болт

1 210 ₽/шт

79

13685-47070

Золотник

1 975 ₽/шт

80

13619-49160

.cover clutch cable

81

13615-49200

WASHER

109 ₽/шт

82

13421-49220

.lever

83

13413-49220

.lever choke cable

84

13437-49220

.spring choke cable
