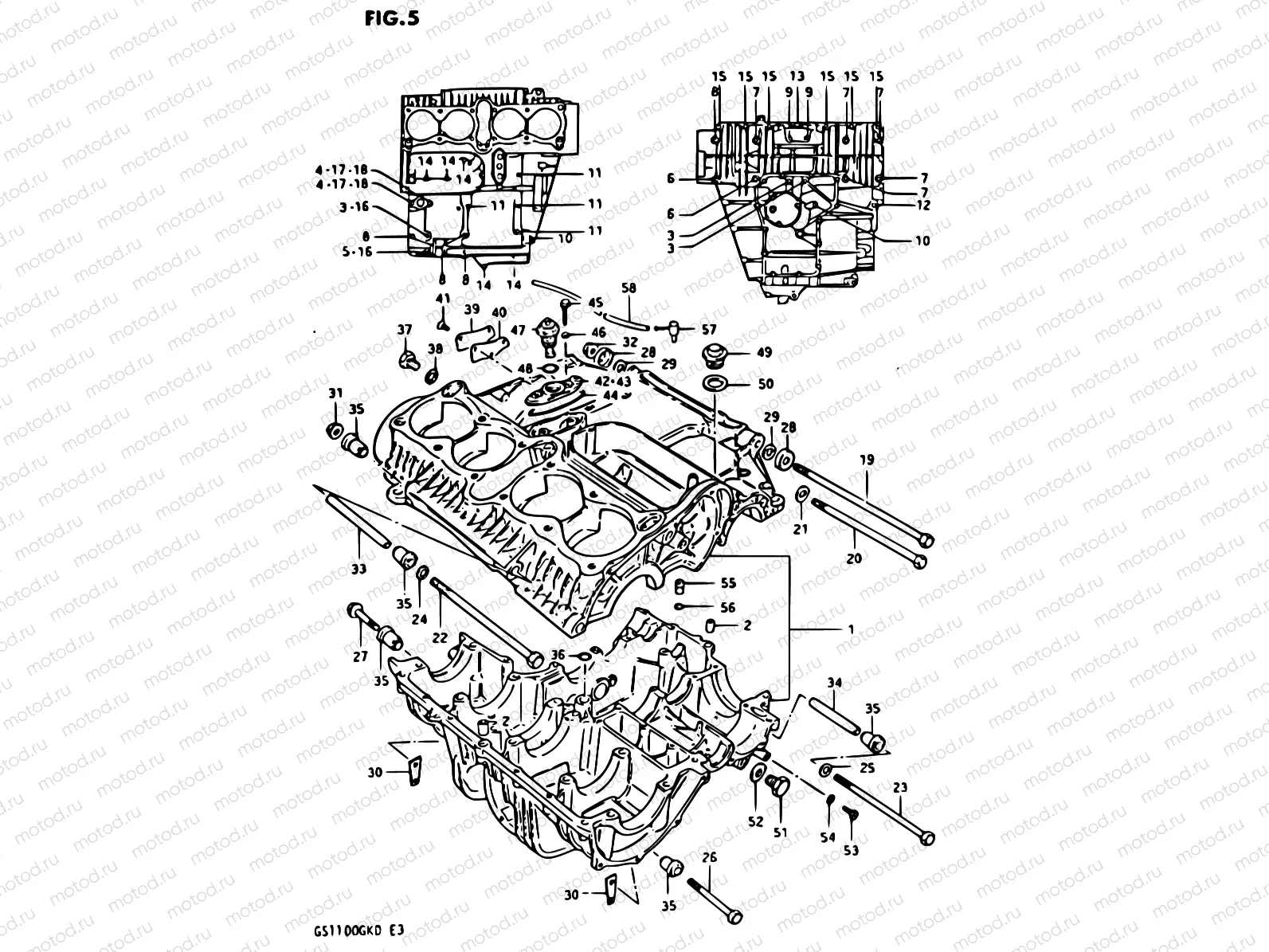

5 - CRANKCASE (GS1100GKZ/GK2)

5 - CRANKCASE (GS1100GKZ/GK2)
Например: 11300-49852
1
11300-49852
Crankcase set
2
04211-13189
ШТИФТ
129 ₽/шт
3
09103-08106
Vis (8*125)
4
09103-08046
.bolt (8x110)
5
09103-08097
BOLT(8X105)
178 ₽/шт
6
09103-08070
BOLT(8X100)
3 280 ₽/шт
7
01570-0890B
Болт
2 540 ₽/шт
8
01550-0865B
Болт
2 310 ₽/шт
9
01550-0860B
Болт
2 310 ₽/шт
10
01550-06907
БОЛТ
129 ₽/шт
11
01550-06757
Болт 6X75
2 070 ₽/шт
12
01550-0660A
Болт
102 ₽/шт
13
01550-0650A
БОЛТ
102 ₽/шт
14
01550-06457
Болт
97 ₽/шт
15
01550-06357
БОЛТ
102 ₽/шт
16
08316-10087
ГАЙКА
82 ₽/шт
17
08313-10087
Гайка
1 330 ₽/шт
18
09168-08016
Прокладка
129 ₽/шт
19
09100-10185
Bolt,eng mount (10x335)
20
09100-10074-XC0
Bolt (10x270)
21
08322-0110B
Шайба
85 ₽/шт
22
09101-10010-XC0
BOLT,10X250
23
09100-10171
Bolt, eng mount (10x170)
24
08322-0110B
Шайба
85 ₽/шт
25
08322-0110B
Шайба
85 ₽/шт
26
09103-10060
Bolt (10x110)
27
01550-10557
Болт
146 ₽/шт
28
09169-10016
Washer
29
09160-10005
WASHER(10.5X20X3.2)
980 ₽/шт
30
09159-10038
Nut engine mount
31
08319-31107
Гайка
210 ₽/шт
32
08319-3110B
Гайка
1 920 ₽/шт
33
09180-10077
Spacer eng mtg (l:150)
34
09180-10078
Spacer eng mtg (l:77)
35
09319-10042
BUSH
11 180 ₽/шт
36
09280-13001
O RING(D:3.2,ID:12.9)
1 880 ₽/шт
37
09247-14026
Пробка редуктора сливная
289 ₽/шт
38
09168-14004
Прокладка
129 ₽/шт
39
11394-45000
Cap,oil gallery
40
11497-45000-H17
Gasket
41
02122-0616B
Болт
85 ₽/шт
42
16445-45000
Housing,oil pr
43
16445-49000
Housing oil press sw
44
16448-45000
O RING,PRESSURE SWITCH HOUSING
743 ₽/шт
45
09118-06086
Болт 6X25
1 680 ₽/шт
46
09168-06023
ПРОКЛАДКА
162 ₽/шт
47
37820-45061
SWITCH ASSY,OIL PRESSURE
2 170 ₽/шт
48
09280-19001
КОЛЬЦО
170 ₽/шт
49
09248-20003
ПРОБКА МАСЛОЗАЛИВНАЯ ЗАДНЕГО МОСТА
578 ₽/шт
50
09168-20003-666
Gasket 5x9.5x1
51
09247-14036
Заглушка масляного дренажа
210 ₽/шт
52
09168-14004
Прокладка
129 ₽/шт
53
09128-06044
SCREW(6X10)
129 ₽/шт
54
09168-06023
ПРОКЛАДКА
162 ₽/шт
55
09364-05005
Болт соединяющий
2 070 ₽/шт
56
09280-03003
O RING(D:1.05,ID:3.1)
1 090 ₽/шт
57
24821-45100
Штепсельная вилка
598 ₽/шт
58
09352-20503-600
Hose (2x5x600)
