Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GS 1100 SUZUKI GS1100GK Z SUZUKI 63 - BUMPER

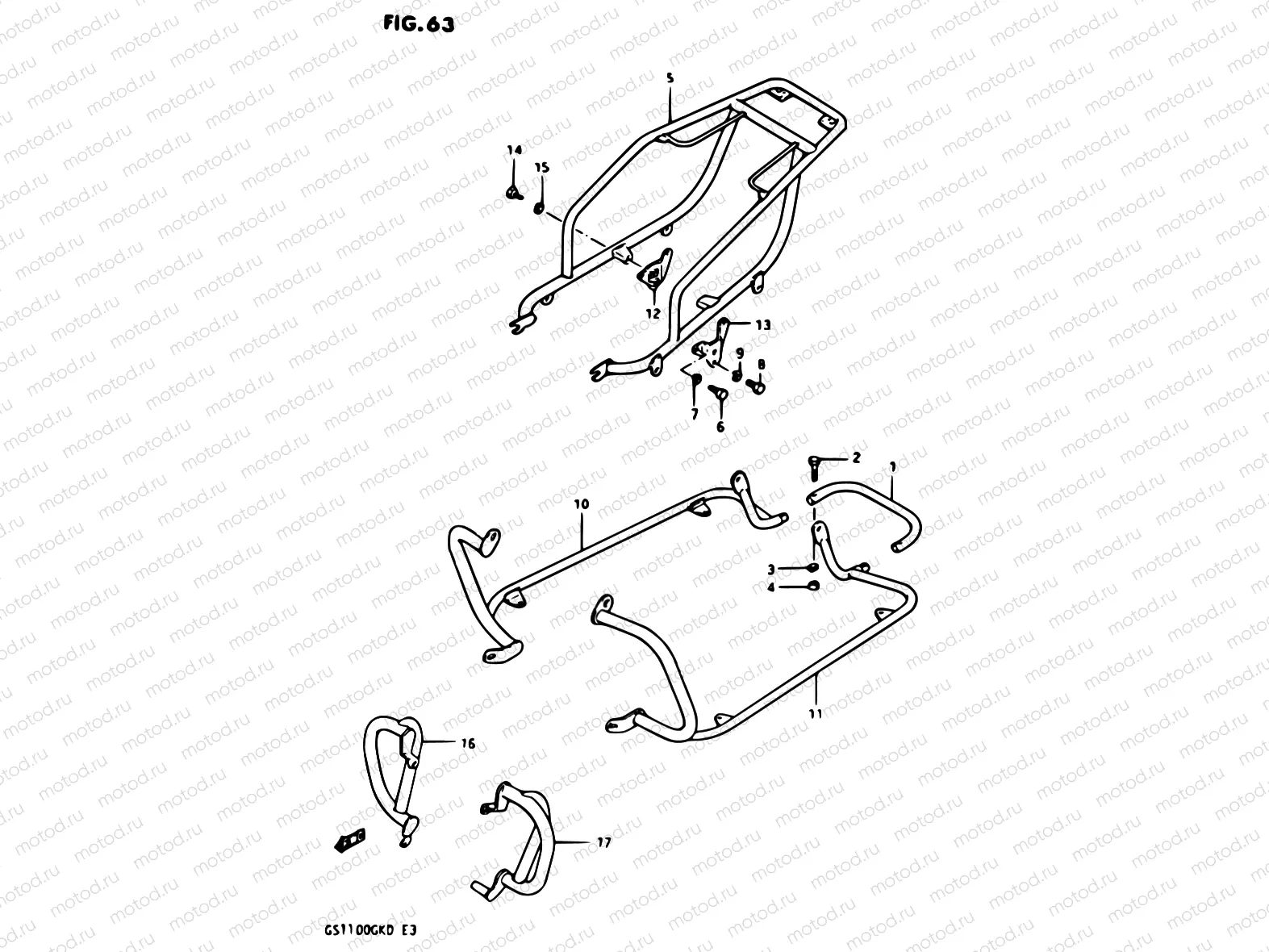

63 - BUMPER

63 - BUMPER

Например: 94710-49400

1

94710-49400

Rear bumper comp

2

01204-06307

BOLT

980 ₽/шт

3

08321-01067

Шайба, стопорная

81 ₽/шт

4

08310-00067

Гайка

81 ₽/шт

5

94840-49410

Carrier travel trunk

5

94840-49401

Carrier travel trunk

6

01500-08257

Болт

102 ₽/шт

7

08321-01087

Пластина замка

81 ₽/шт

8

01500-0816B

Болт

85 ₽/шт

9

08321-01087

Пластина замка

81 ₽/шт

10

95430-49440

Carrier rr side rh

10

95430-49401

Carrier r side bag r

11

95530-49440

Carrier rr side lh

11

95530-49401

Carrier r side bag l

12

94850-49400

Brkt comp rr carr r

13

94860-49400

Brkt comp rr carr l

14

01500-0816B

Болт

85 ₽/шт

15

08321-01087

Пластина замка

81 ₽/шт

16

94280-49400

Bar accessory

17

94290-49400

Bar accessory
