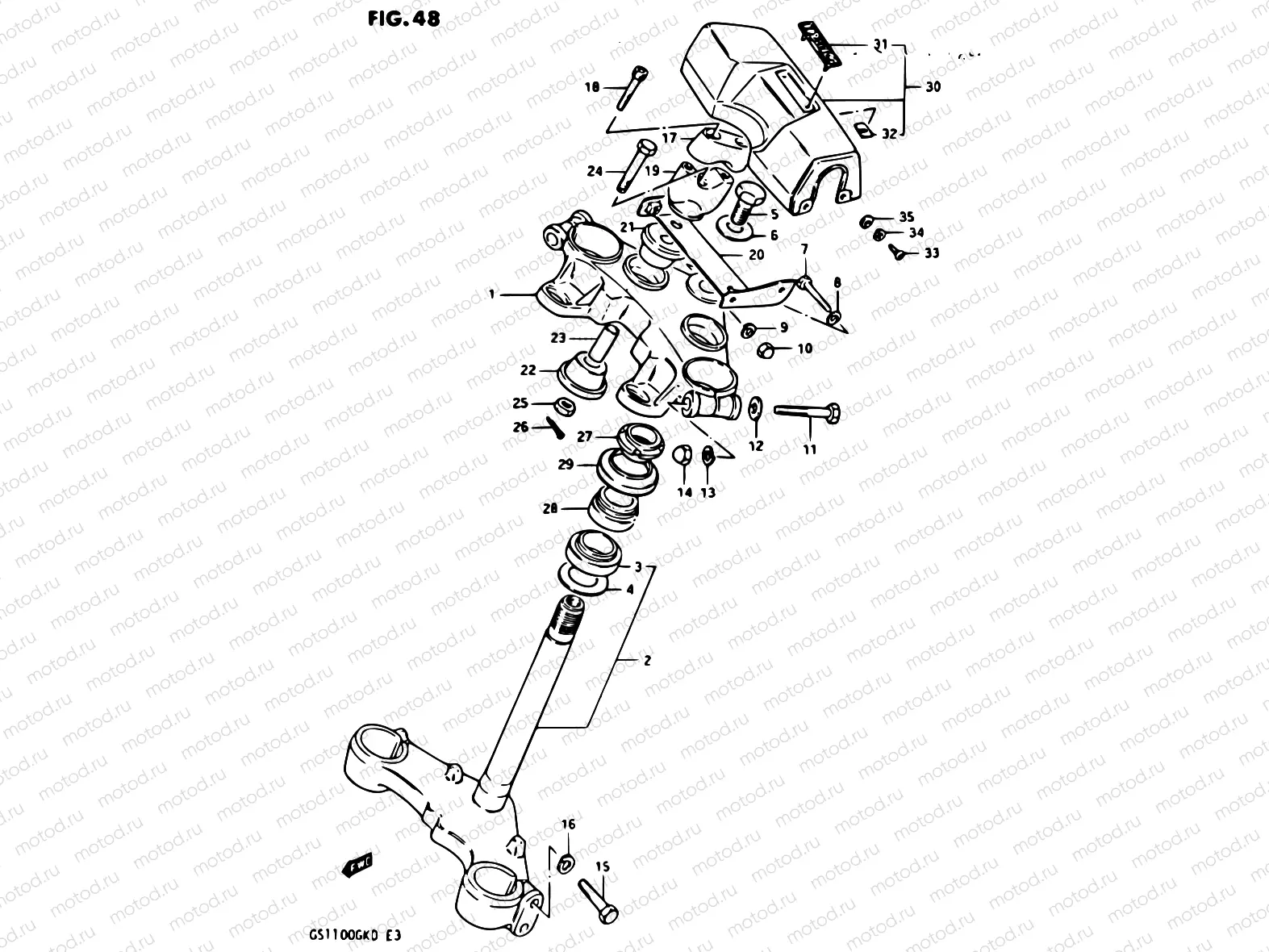

48 - STEERING STEM (GS1100GK2/GKD)

48 - STEERING STEM (GS1100GK2/GKD)
Например: 51311-49446-291
1
51311-49446-291
Head stem (black)
2
51410-49460-291
Stem steering (black)
3
09265-30034
Bearing
3 392 ₽/шт
4
09181-30184
SHIM(30X40X1.5)
194 ₽/шт
5
51352-43530
BOLT,STEERING STEM HEAD
852 ₽/шт
6
51356-43530
WASHER,STEERING STEM
387 ₽/шт
7
01500-08507
Болт
1 840 ₽/шт
8
08322-0108A
Шайба
85 ₽/шт
9
08321-0108B
Пластина замка
81 ₽/шт
10
08313-1008B
Гайка
102 ₽/шт
11
01500-1055A
БОЛТ
2 070 ₽/шт
12
08322-0110B
Шайба
85 ₽/шт
13
08321-0110B
Пружинная шайба
85 ₽/шт
14
08313-1010A
Гайка
1 330 ₽/шт
15
01500-0840A
Болт
102 ₽/шт
16
08321-01087
Пластина замка
81 ₽/шт
17
56211-26D00
Держатель рукоятки, верхний
2 424 ₽/шт
18
07130-0830A
БОЛТ (хром)
2 070 ₽/шт
19
56221-37410-291
Holder handlebar (black)
20
56175-49440
Bracket
21
56240-49440
Cushion, upper
22
56260-49440
Cushion holder
23
09180-10065
SPACER(10.2X14X46)
2 580 ₽/шт
24
51321-37410
Vis
25
09159-10027
Гайка
211 ₽/шт
26
04111-2030A
PIN
740 ₽/шт
27
51631-34200
Nut
28
09265-25019
BEARING(25X47X15)
2 746 ₽/шт
29
51643-40503
Seal,dust
727 ₽/шт
30
56170-49410
Pad, handlebar
31
68281-45100
EMBLEM,HANDLE COVER PAD
1 118 ₽/шт
32
09148-03002
NUT
129 ₽/шт
33
02112-0510B
Болт
85 ₽/шт
34
08321-0105A
Пластина замка
81 ₽/шт
35
08322-0105B
Шайба
81 ₽/шт
