Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GS 1100 SUZUKI GS1100GK Z SUZUKI 17 - CLUTCH

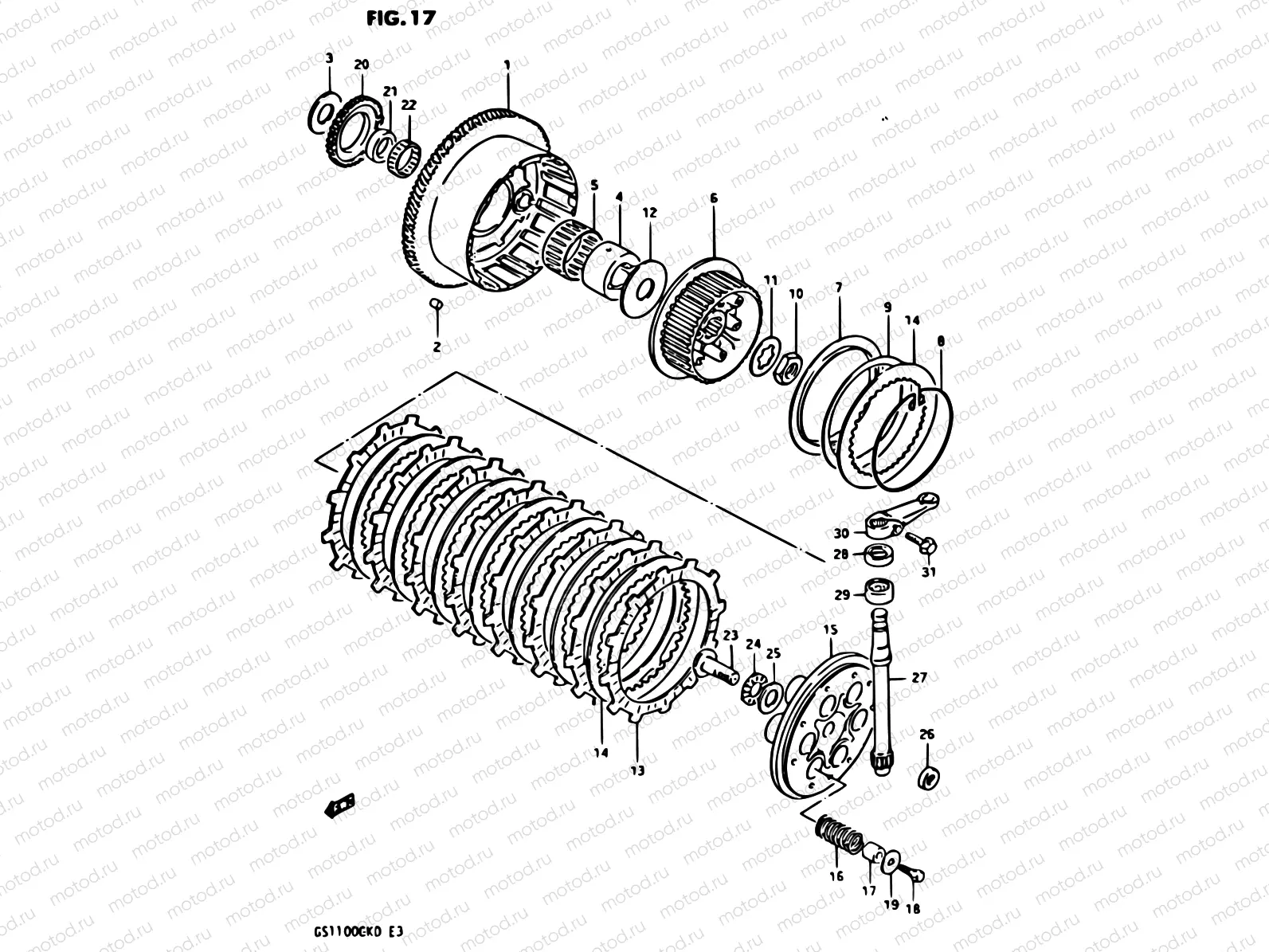

17 - CLUTCH

17 - CLUTCH

Например: 21200-49214

1

21200-49214

Gear assy,prima

2

21215-49000

Damper

3

09160-25056

WASHER

727 ₽/шт

4

21251-49200

Entretoise

5

09263-51002

BEARING(51X56X28)

3 675 ₽/шт

6

21410-00A00

HUB,CLUTCH SLEEVE

27 030 ₽/шт

7

21471-49100

SEAT,WAVE WASHER

731 ₽/шт

8

21481-45100

RING,WAVE WASHER STOPPER

238 ₽/шт

9

09164-00003

ШАЙБА ФОРСУНКИ

646 ₽/шт

10

09140-24007

ШАЙБА

2 390 ₽/шт

11

09167-25007

ШАЙБА

1 560 ₽/шт

12

09160-25022

WASHER(25X66X3.5)

10 710 ₽/шт

13

21441-31D00

CLUTCH PLATE

2 907 ₽/шт

14

21451-49200

Диск сцепления

1 938 ₽/шт

15

21462-49010

Disk,clutch pressure

16

09440-19027

Пружина

211 ₽/шт

17

09180-06174

SPACER(6.2X12X14)

3 640 ₽/шт

18

01500-06307

Болт

85 ₽/шт

19

09160-06066

Шайба

102 ₽/шт

20

16321-49000

Шестерня масленого насоса

14 991 ₽/шт

21

16325-45001

SPACER,OIL PUMP DRIVE GEAR

1 449 ₽/шт

22

09263-36002

Roulement

23

23165-49011

Rack,cl release

24

09263-15003

Подшипник 15X28X2

532 ₽/шт

25

09160-15045

Шайба

211 ₽/шт

26

09285-10003

Oil seal

27

23261-49001

Cl release pinion

28

09285-12006

САЛЬНИК ТРАНСМИССИИ, РЕЗИНА

275 ₽/шт

29

09263-15012

BEARING(15X22X12)

1 052 ₽/шт

30

23271-49100

ARM,CLUTCH RELEASE

1 763 ₽/шт

31

01550-06207

БОЛТ

85 ₽/шт
