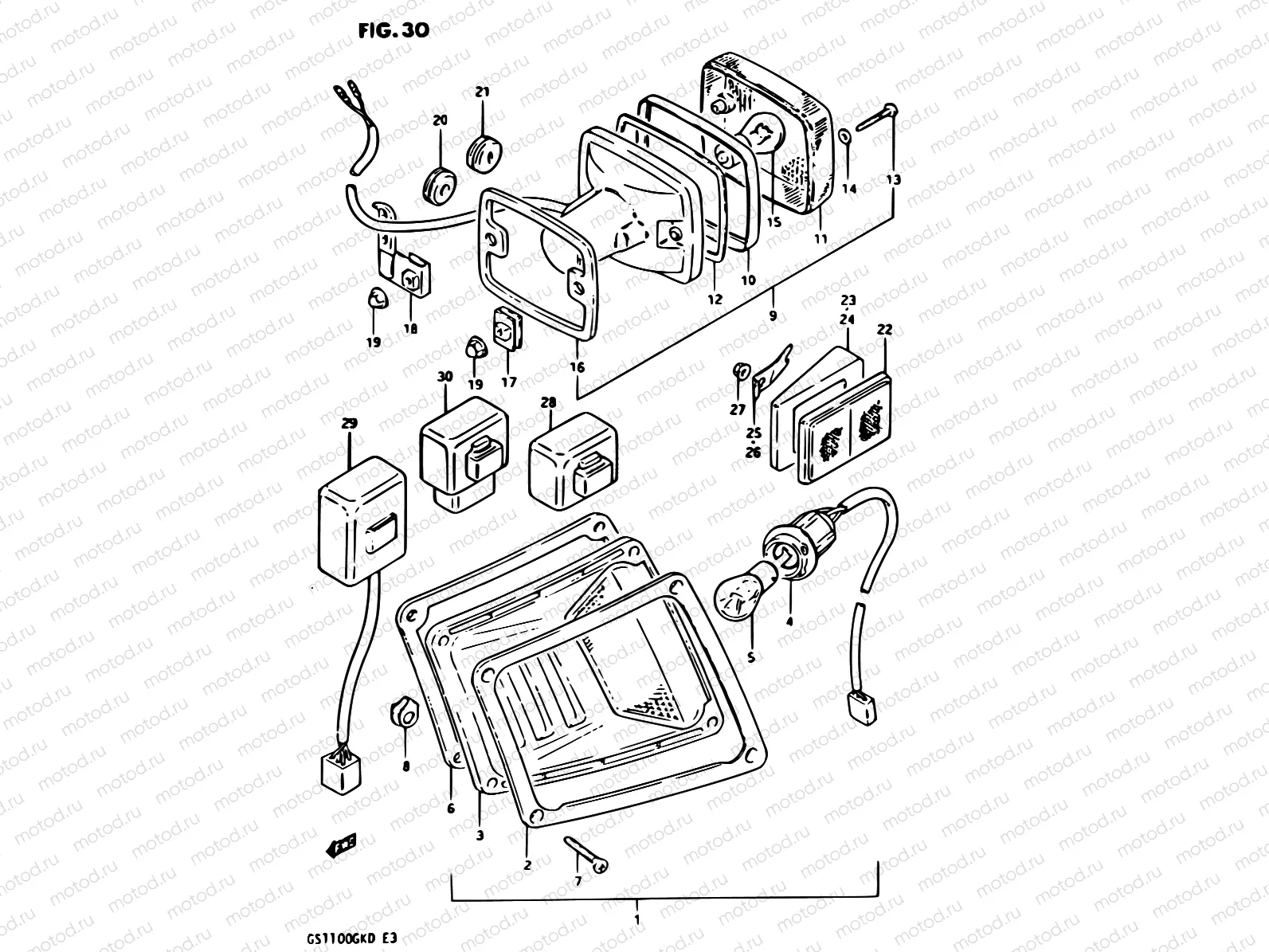

30 - TURN SIGNAL LAMP

30 - TURN SIGNAL LAMP

Например: 35601-49412

1

35601-49412

Lamp assy turn sig rh

1

35602-49412

Lamp assy turn sig lh

1

35602-49410

Lamp assy turn sig lh

1

35601-49410

Lamp assy fr turn rh

2

35631-49412

.rim lh

2

35611-49411

.rim fr turn sig rh

2

35631-49410

.rim, lh

2

35611-49410

.rim, rh

3

35610-49411

.unit rh

3

35630-49411

.unit lh

4

35618-49410

.socket

5

09471-12035

ЛАМПА ОСВЕЩ САЛОНА

4 850 ₽/шт

6

35613-49410

Gasket

7

35623-49410

.screw

8

94691-49400

Plate cover fitting

9

35603-49410

Lamp assy rr turn sg

10

35651-49410

.rim turn signal lamp

11

35652-49410

.lens turn signal

12

35613-49230

GASKET

953 ₽/шт

13

35625-49410

.screw t signal lamp

14

35627-43010

GASKET

179 ₽/шт

15

09471-12006

BULB(12V23W,STANLEY,A4577A)

4 140 ₽/шт

16

35653-49410

.gasket,turn signal

17

35693-49410

Plate,rr turn signal

18

35694-49410

Plate rr turn sig l

19

08313-11048

Nut 4mm

20

09308-07009

Damper

21

35661-49410

Grommet turn sig lmp

22

35970-49330

Reflector,refle

23

35977-49431

Spacer reflector rh

23

35977-49430

Spacer,reflector,rh

24

35978-49431

Spacer reflector lh

24

35978-49430

Spacer,reflector lh

25

35997-49430

Washer,reflector rh

26

35998-49430

Washer,reflector lh

27

08316-1005B

Гайка

1 520 ₽/шт

28

38610-49231

Relay,turn sign

29

38830-49X00

Unit,control

30

38830-49X00

Unit,control
