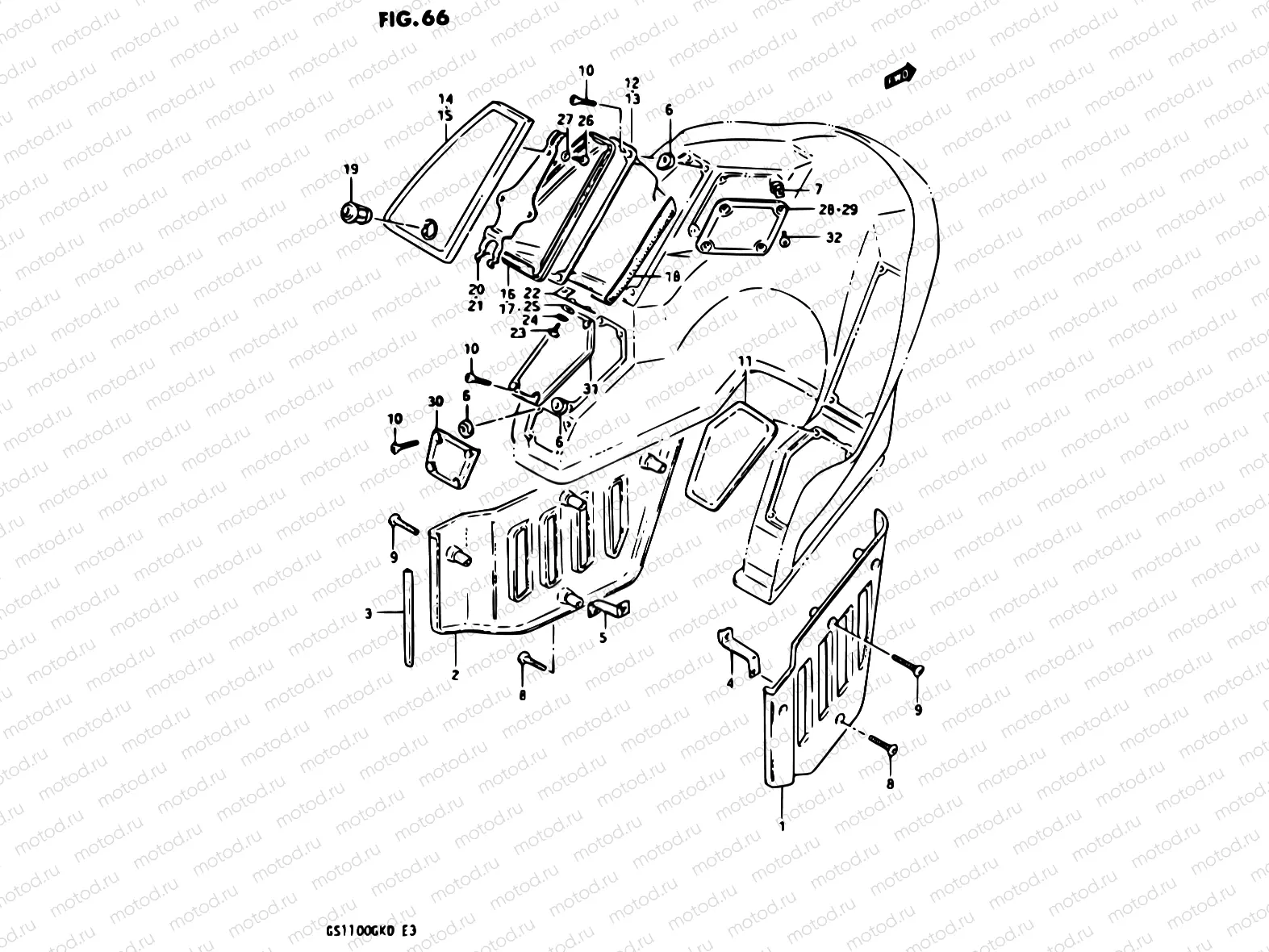

66 - COWLING (NO.2)

66 - COWLING (NO.2)

Например: 94430-49400-93E

1

94430-49400-93E

Cover cowling rh (black/brown)

1

94430-49400-84N

Cover cowling low rh (black/black)

1

94430-49400

Cover,lower rh

2

94440-49400

Cover,cowling lh (black/black)

2

94440-49400-85R

Cover cowling low lh (black/maroon)

3

94438-49400

Mould cowling low co

4

94540-49400

Brkt cowl low cov r

5

94550-49400

Brkt cowl low cov l

6

94692-49400

Plate co fitting no1

7

94699-49400

Plate co fitting no2

8

09125-06055

Болт

170 ₽/шт

9

02142-0635A

Болт

85 ₽/шт

10

03222-05163

11

94600-49811-291

Glove box,cowling (black)

12

94600-49820-291

Console box rh (black)

13

94600-49830-291

Console box lh (black)

14

94645-49400-291

Lid console box r (black)

15

94655-49400-291

Lid console box lh (black)

16

94646-49400

Cushion consolebox r

17

94656-49400

Cushion consl box lh

18

94663-49400

Cushion console box

19

95700-49400-KEY

Lock console box

20

94693-49400

Plate lock holder

21

94695-49400

Plate lock holder

22

94694-49400

Pl lock holder sup

23

01500-06127

Болт

81 ₽/шт

24

08321-01067

Шайба, стопорная

81 ₽/шт

25

08322-0106A

Шайба

81 ₽/шт

26

03141-0412A

Vis

27

08322-01047

Шайба

85 ₽/шт

28

94672-49400-291

Cover speaker r (black)

29

94682-49400-291

Cover speaker l (black)

30

94673-49400-291

Cover c b cotroller (black)

31

94681-49400-291

Cover radio case l (black)

32

03232-05305

Screw (5x30)
