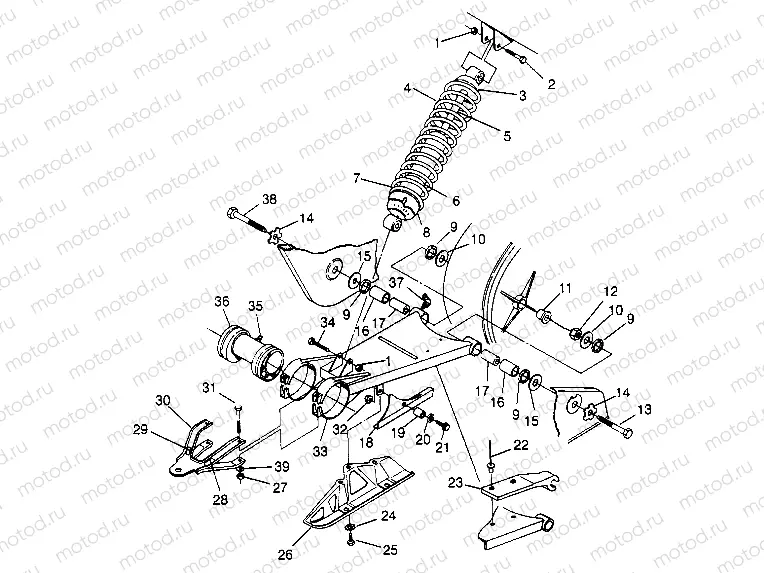

SWING ARM/SHOCK MOUNTING Sportsman 4x4 W948040 (4926842684B013) | SWING ARM/SHOCK MOUNTING Sportsman 4x4 W948040 (4926842684B013)

SWING ARM/SHOCK MOUNTING Sportsman 4x4 W948040 (4926842684B013) | SWING ARM/SHOCK MOUNTING Sportsman 4x4 W948040 (4926842684B013)

Например: 7542439

1

7542439

Nut (SELF-LOCKING)

2

7515415

Vis

3

5251753

RETAINER-SPRING STEEL

4

7041299-067

SPRING,COMP,BLK. Substituted by 7041299-132

5

7041448

SHOCK REAR

6

5431032

SLEEVE SPRING PROTECTOR

7

5630351

ADAPTER,SPRING,SEAT

8

5630334

CAM ADJUSTING SPRING

9

3610016

SEAL OIL

10

7555779

WASHER(10)

11

LR--

CALIPER, BRAKE, RH

12

7542601

NUT,CROWN LOCK(10)

13

7512702

BOLT SHOULDER

14

5220958

PLATE BOLT LOCK

15

7555752

BUSHING, MACH.(10)

16

3576512

BEARING SWINGARM

17

5010255

BUSHING,SWING ARM

18

5430776

GUARD CHAIN

19

5332828

BUSHING

20

7558402

WASHER FLAT

21

7515304

SCREW-FLANGED

22

7621433

RIVET

23

5431310

GUIDE CHAIN

24

7552604

Rondelle

25

7512252

SCREW(10)

26

1040166-067

GUARD SWING ARM

27

7542503

NUT FLEXLOCK

28

7074177

DECAL,CHAIN TENSION Substituted by 7074752

29

7072533

"""DECAL HITCH"""

30

2873036

HITCH ATV CHAIN DRVN

31

7512576

Vis

32

7542321

NUT FLANGE

33

1580090

ARM ASM,SWING

34

7515438

Vis

35

7080306

FITTING LUBE.W/BALL CK.

36

5130663

HOUSING, AXLE

37

7080438

FITTING LUBE.

38

7512701

BOLT SHOULDER

39

7555883

Rondelle
