Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 W948040 (W948040) Polaris 1994 ATV CRANKCASE and CYLINDER Sportsman 4x4 W948040 (4926842684C011) | CRANKCASE and CYLINDER Sportsman 4x4 W948040 (4926842684C011)

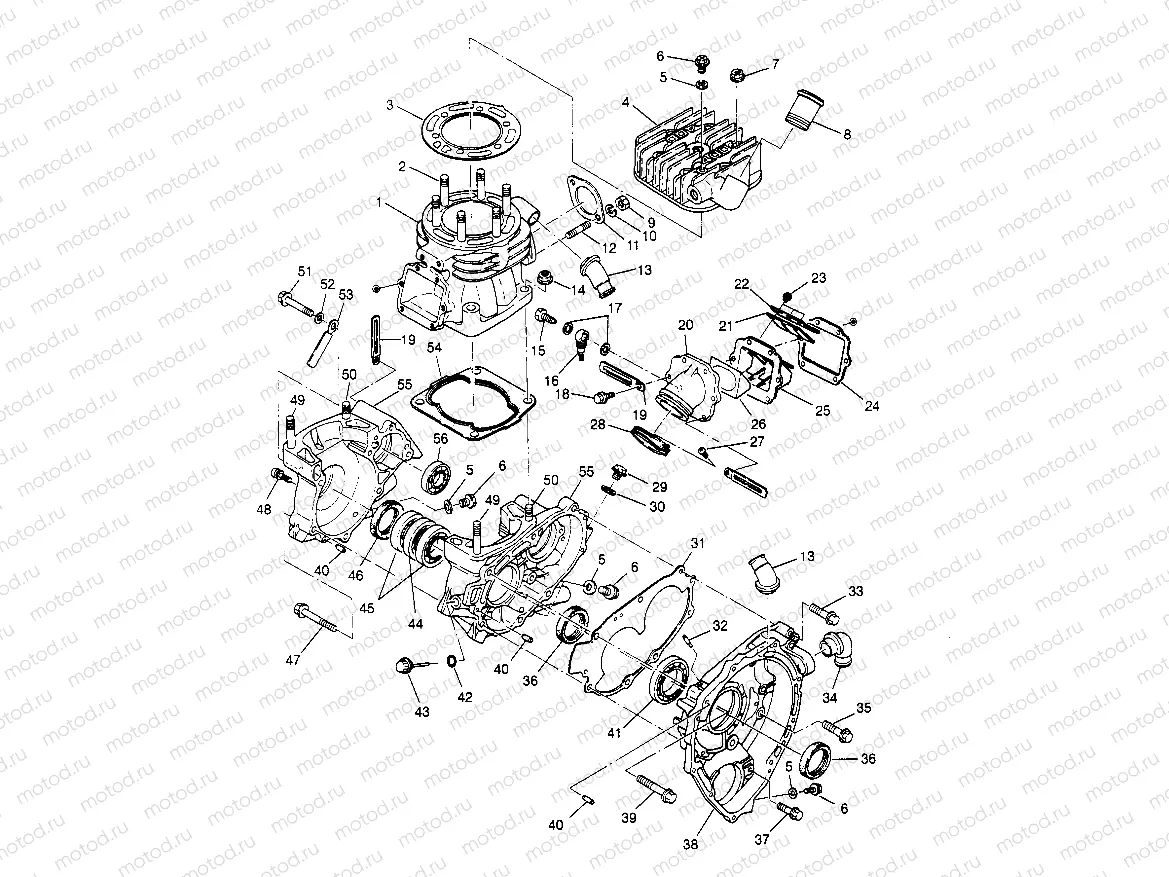

CRANKCASE and CYLINDER Sportsman 4x4 W948040 (4926842684C011) | CRANKCASE and CYLINDER Sportsman 4x4 W948040 (4926842684C011)

CRANKCASE and CYLINDER Sportsman 4x4 W948040 (4926842684C011) | CRANKCASE and CYLINDER Sportsman 4x4 W948040 (4926842684C011)

Например: 3084728

1

3084728

CYLINDER

2

3084138

STUD

3

3084731

Joint culasse

4

3086755

HEAD CYLINDER

5

7555998

WASHER FLAT

6

3083767

Vis de vidange d'huile

7

3082910

NUT-FLANGE

8

3083452

PIPE WATER

9

3087199

Nut

10

3080530

Rondelle (Lock)

11

3086757

Exhaust gasket

12

3080016

STUD (10)

13

3084129

PIPE, 1 ELBOW Substituted by 3086746 (Elbow)

14

3082911

NUT-FLANGE.

15

3083137

BOLT-BANJO

16

3083894

VALVE CHECK

17

7555998

WASHER FLAT

18

3084877

Vis

19

3083590

Collier

20

3084143

ADAPTER

21

3240064

VALVE REED

22

3240065

STOPPER

23

3084565

SCREW REED

24

3084148

GASKET, REED VALVE,(10) (reed valve)

25

3084147

VALVE ASM. REED

26

3240164

STUFFER,(REED VALVE ASM.)

27

3081497

Vis

28

3084144

BAND ASM.

29

3083453

PLUG

30

3082956

GASKET

31

3086748

GASKET-CASE 3

32

3084128

PIPE, BREATHER (Breather)

33

3086751

Vis

34

3086747

PIPE-2 ELBOW

35

3084435

BOLT, FLANGE ,(10)

36

3084120

SEAL OIL

37

3084126

BOLT, FLANGE

38

3084726

CRANKCASE ASM. Substituted by 3085081

39

3084134

Vis

40

3086838

Dowel pin

41

3084131

BEARING BALL

42

3084733

O-Ring

43

3084732

"""GAUGE OIL"""

44

3084775

BEARING BALL

45

3084121

BEARING BALL

46

3084725

SEAL OIL

47

3086742

BOLT-FLANGE

48

3084205

ASM. SCREW & WASHER

49

3084118

STUD

50

3084119

STUD

51

3084124

BOLT, FLANGE

52

3080142

Rondelle

53

3083384

Collier

54

3084729

Joint d'embase cylindre

55

3086740

ASM-CRANKCASE (Incl. 3,4,34,37,40,44-47,49-52,56)

56

3084123

BEARING BALL
