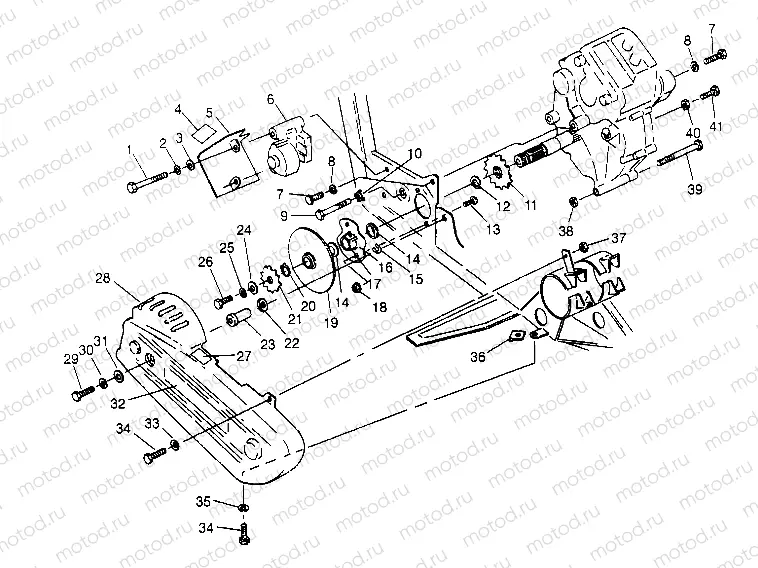

GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W948040 (4926842684C003) | GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W948040 (4926842684C003)

GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W948040 (4926842684C003) | GEARCASE/BRAKE and CHAIN COVER MOUNTING Sportsman 4x4 W948040 (4926842684C003)

Например: 7515345

1

7515345

Vis

2

7552901

Rondelle (Lock)

3

7558402

WASHER FLAT

4

7072790

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

5

5240149-067

SHIELD R.CALIPER BLK.

6

1910156

CAL.ASM,REAR BRAKE Substituted by 1910180 (Incl. 1-22)

7

7515522

Vis

8

7552603

Rondelle (Lock)

13

7515484

BOLT,CARRIAGE(10)

14

3610026

SEAL BRAKE

15

5211065

SHIM .010

15

5211517

SHIM (.030)

15

5210764

SPACER-.020

16

1590237

BRG.ASM O/P SHAFT

17

7080306

FITTING LUBE.W/BALL CK.

18

7542449

NUT FLANGE LOCK

22

7555734

WASHER FLAT

23

5333244

SPACER, CHAIN GUARD

25

LR--

CALIPER, BRAKE, RH

27

7074214

DECAL,LUBRICATION

28

5431717

GUARD CHAIN CTR.

29

7515346

Vis

30

7552606

Rondelle

31

7558402

WASHER FLAT

32

7074226

DECAL,DEMAND 4 DRIVE

33

7558302

WASHER WROUGHT

34

7512269

Vis

35

7552605

Rondelle

36

7670060

NUT SPEED

37

7542122

NUT-NYLOK

38

7542403

NUT LOCK

39

7515472

Vis

40

7542404

Nut

41

7515485

Vis
