Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 W948040 (W948040) Polaris 1994 ATV HEADLIGHT Sportsman 4x4 W948040 (4926842684A013) | HEADLIGHT Sportsman 4x4 W948040 (4926842684A013)

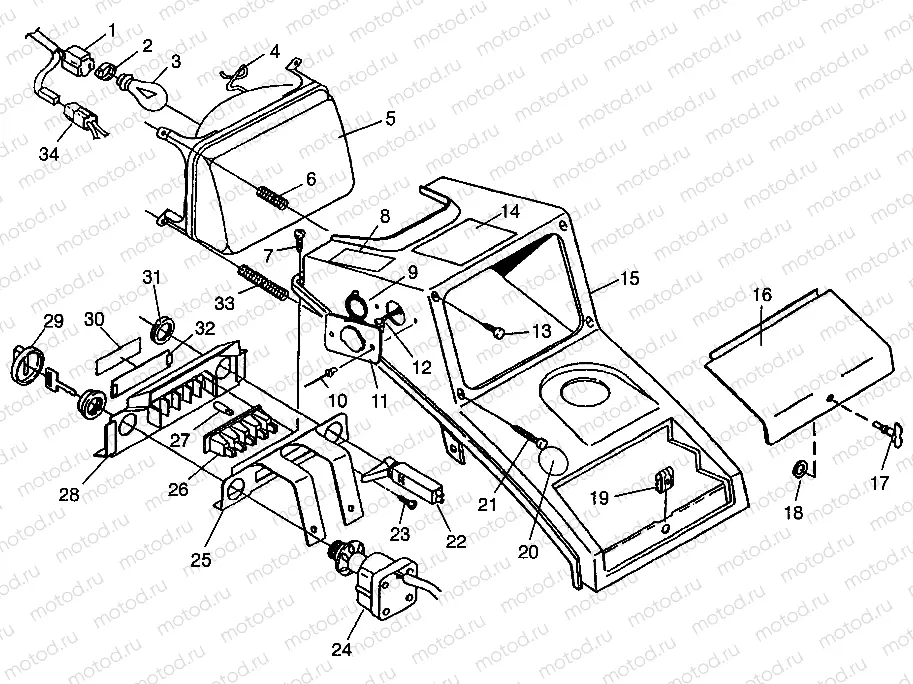

HEADLIGHT Sportsman 4x4 W948040 (4926842684A013) | HEADLIGHT Sportsman 4x4 W948040 (4926842684A013)

HEADLIGHT Sportsman 4x4 W948040 (4926842684A013) | HEADLIGHT Sportsman 4x4 W948040 (4926842684A013)

Например: 2460424

1

2460424

HARNESS HEADLIGHT

2

4032066

COVER,SOCKET,H/L.

3

4030028

BULB H/L

4

4032063

RETAINER H/L BULB

5

4032065

HEADLIGHT ASM., INCANDESCENT W/BULB SEAL

6

4032002

SPRING-ADJ

7

7512017

Vis

8

7072737

"""DECAL WARN DEM.4 SW."""

9

5411081

COVER,12VOLT PLUG

10

7621334

RIVET

11

2410025

POWERPLUG ASM,12V

12

2460471

HARNESS,12V OUTLET

13

7518157

SCR-M5X.8X50MM

14

7073464

DECAL, CERTIFICATION

15

5431660

COVER,OILTANK/HL,W/HOLE

16

5431201-070

DOOR,ACCESS,BLK.

17

7670064

FASTENER, 1/4 TURN(10)

18

7670065

RING SPLIT RETAINER

19

7670066

RECEPTACLE,CLIP-ON(10)

20

7074695

LOGO 40 YEARS

21

4032042

SCREW ADJUST (ATV)

22

7080371

CABLE CHOKE

22

2200188

KIT-CHOKE CONTROL

23

7511862

Vis

24

4110140

SWITCH IGNITION

25

5220965-067

BRKT, IGN. PANEL

26

4032037

STRIP, SOCKET

27

4080872

BULB

28

5430995

PANEL, IGNITION

29

5433534

KEY COVER-KEYSWITCH

30

7072528

DECAL, PANEL [No Longer Available]

31

7080229

Nut

32

2652049

LENS ASM PILOT LIGHT

33

4032041

SPRING ADJ.

34

4040024

HSG,DUAL,FEMALE
