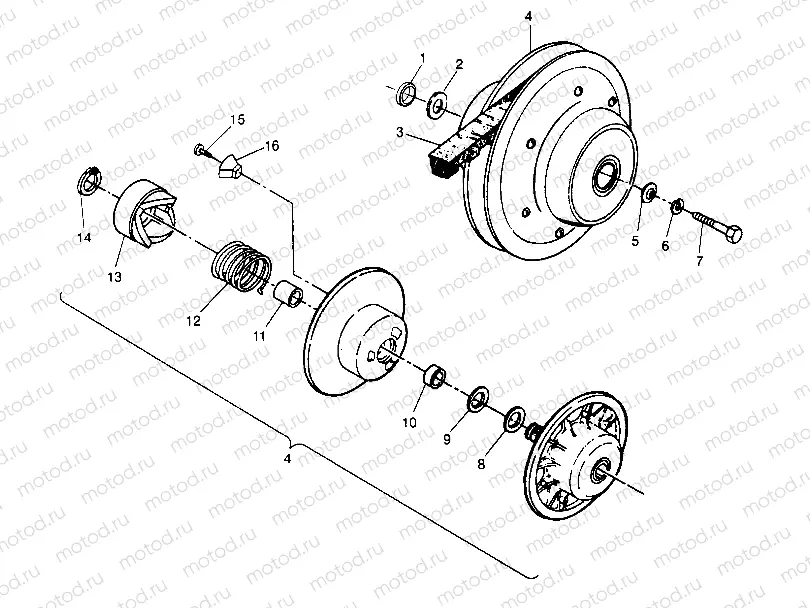

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 W948040 (W948040) Polaris 1994 ATV DRIVEN CLUTCH ASSEMBLY Sportsman 4x4 W948040 (4926842684C002) | DRIVEN CLUTCH ASSEMBLY Sportsman 4x4 W948040 (4926842684C002)

DRIVEN CLUTCH ASSEMBLY Sportsman 4x4 W948040 (4926842684C002) | DRIVEN CLUTCH ASSEMBLY Sportsman 4x4 W948040 (4926842684C002)

DRIVEN CLUTCH ASSEMBLY Sportsman 4x4 W948040 (4926842684C002) | DRIVEN CLUTCH ASSEMBLY Sportsman 4x4 W948040 (4926842684C002)

Например: 5010379

1

5010379

SPACER,DRIVEN CLUTCH

2

7556401

BUSHING

3

3211113

Courroie

4

1322182

CLUTCH DRVN 3-ANGLE HVY RET

5

5220646

WASHER DOMED

6

7552901

Rondelle (Lock)

7

7515327

Vis

8

7555898

WASHER-1.5X2.0X.020-Y

9

7556804

WSHR-1.505X2.00X.030-Y

10

3576504

BUSHING MOVEABLE 1/2 INCH

11

3576511

BUSHING MOVEABLE 1 INCH

12

7041198

SPRING CLUTCH (RED)

13

5132344

RAMP STA COMP (MACH)

14

7714401

RETAINING RING

15

7511854

Vis

16

5450873

BUTTON (3)
