Главная Каталог товаров Polaris EPC SERIES 10 Polaris RANGER Polaris SERIES 10 RANGER 500 6X6 (A10RF50AB) Polaris SERIES 10 RANGER STEERING - A10RF50AB (4970927092B11) | STEERING - A10RF50AB (4970927092B11)

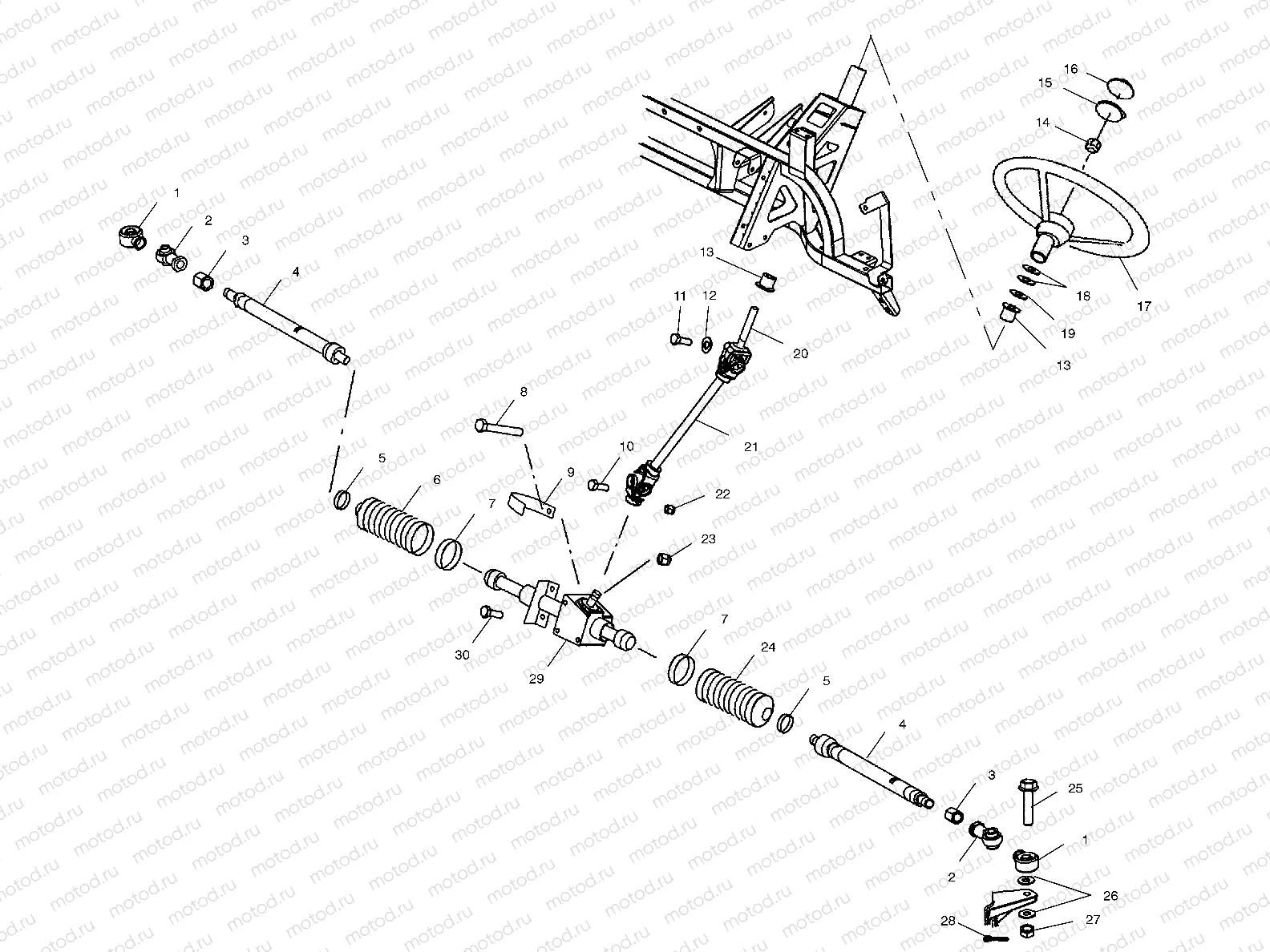

STEERING - A10RF50AB (4970927092B11) | STEERING - A10RF50AB (4970927092B11)

STEERING - A10RF50AB (4970927092B11) | STEERING - A10RF50AB (4970927092B11)

Например: 5412929

1

5412929

BOOT-SEAL ROD END 10MM

2

7061138

ROD-END 10MM 1/2-20LH 42 DEG

3

7547028

NUT JAM LH

4

1820921

ASM-GEARCASE BOX STEERING

5

7080978

CLAMP-BOOT SMALL

6

5412013

BOOT-PASSENGER SIDE RACK

7

7080979

CLAMP-BOOT LARGE

8

7515382

Vis

9

7080884

CLIP J

10

7515434

Vis

11

7517924

BOLT-CAP M8X1.25

12

7556186

Rondelle (spring)

13

5434106

BUSHING-STEERING SHAFT

14

7547188

NUT-M16X2-6G

15

5434169

Cap

16

7078465

LOGO-POLARIS STAR

17

1823678

WHEEL-STEERING 15

18

7556063

WASHER WAVE

19

7556301

BUSHING

20

1821018

SHAFT-STEERING UPPER

21

1821019

SHAFT-STEERING LOWER W/JOINTS

22

7542439

Nut (SELF-LOCKING)

23

7542324

Nut (SELF-LOCKING)

24

5412012

BOOT-DRIVER SIDE RACK

25

7517909

BOLT-M10X1.25X65 HX WASH HD

26

7556099

WASHER

27

7547177

NUT-M10X1.25-HX-LOCK-Y

28

7661203

PIN COTTER

29

1820921

ASM-GEARCASE BOX STEERING

30

7512371

BOLT 5/16-18X3/4
